Contact designation
Auxiliary switch blocks - for example, 3RH1911-1GA22 (2 NO + 2 NC con-
tacts) in acc. with EN 50 011 - can only be attached to auxiliary contactors
with 4 NO contacts (3RH1140-..... ) because they are coded. The identifica-
tion number (62E) printed on the auxiliary switch block (6 NO + 2 NC con-
tacts) applies to the whole contactor.
NO and NC contacts are in the same position on all the auxiliary contactors
with the identification number 62E (DIN EN 50 011).
This means contactors can be replaced without changing the wiring, which
therefore makes wiring very easy. You can attach auxiliary switch blocks that
comply with EN 50 005 on all 3RH11 auxiliary contactors and 3RT101 motor
contactors. For example, the 3RH1911-1FA22 auxiliary switch block (2 NO +
2 NC contacts) has the identification number 22, and this only applies to the
attached auxiliary switch block.
Graphical symbols of
the auxiliary contactors
Below are some examples of graphical symbols for auxiliary contactors with
the identification letter E that comply with EN 50 011:

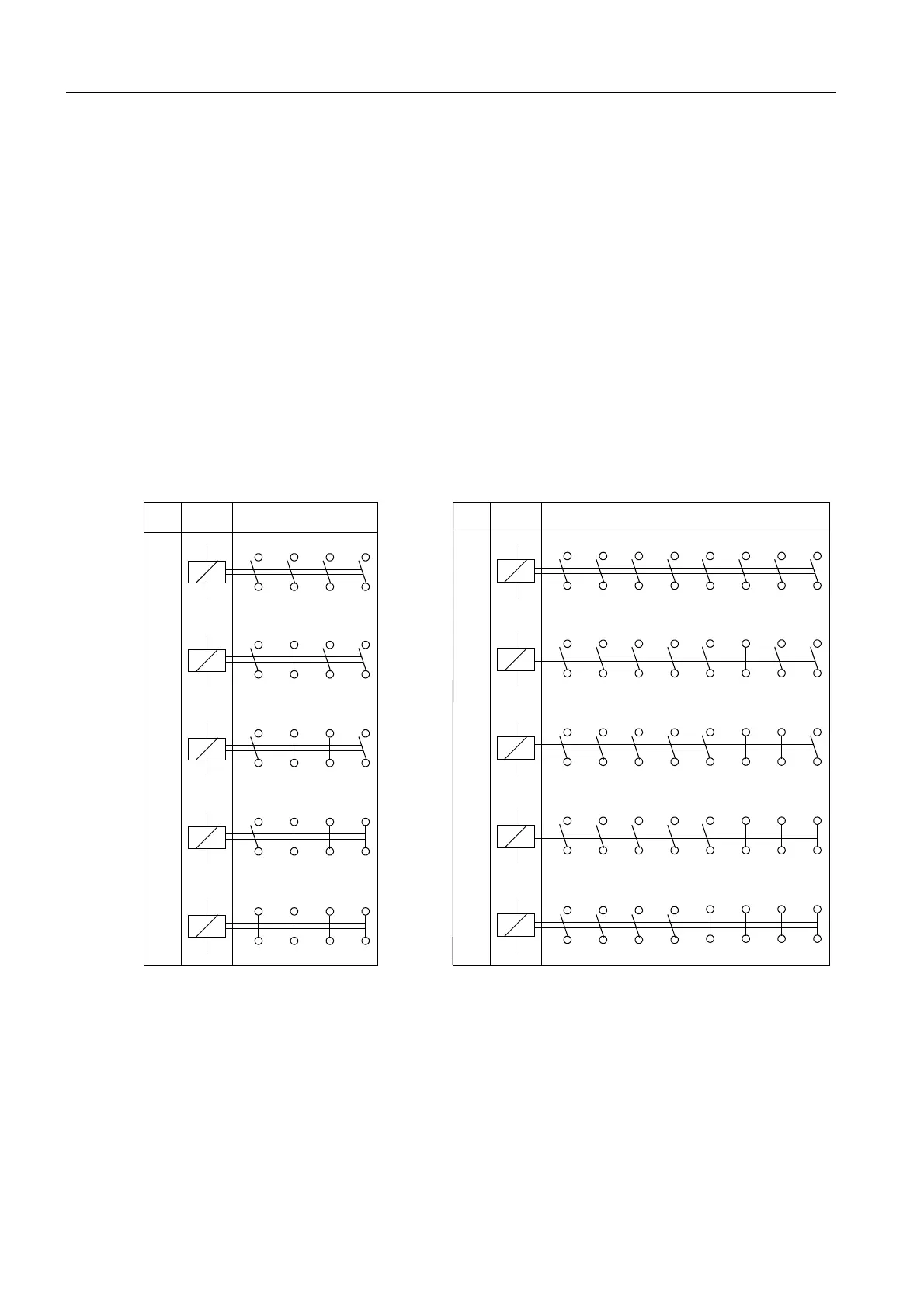

Figure 3-39: Graphical symbols for auxiliary contactors in acc. with EN 50 011 (excerpt)
13 23 33 43
14 24 34 44
13 21 33 43
14 22 34 44
14 22 32 44
13 21 31 43
40 E
31 E
22 E
14 22 32 42
13 21 31 41
13 E
12 22 32 42
11 21 31 41
04 E
Coil Switching elements
ID
no.
13 23 33 43
14 24 34 44
13 23 33 43
14 24 34 44
14 24 34 44
13 23 33 43
80 E
71 E
62 E
14 24 34 44
13 23 33 43
53 E
14 24 34 44
13 23 33 43
44 E
Coil Switching elements
53 63 73 83
54 64 74 84
53 61 73 83
54 62 74 84
54 62 72 84
53 61 71 83
54 62 72 82
53 61 71 81
52 62 72 82
51 61 71 81
ID
no.
