3RP10, 3RP15 solid-state time relays
SIRIUS System Manual
GWA 4NEB 430 0999-02b
7-3
7.2 Device description
Time relays are used for different control tasks in automatic production lines
and for processing machines.
They are suitable for all time-delayed switching operations in control, star-
ting, protective, and regulating circuits and ensure high repeatability of the
set run times.
7.2.1 Device types
Device types
The SIMIREL 3RP1 time relays are available in the following forms:
• Single-function devices, such as the on-delay function
• Multifunctional devices
Frame sizes
The SIMIREL 3RP1 time relays are available in two widths:
•3RP10: 45 mm
The width, height, and depth of time relays and contactors of frame size S00
(3RT/3RH10) are identical. The terminals are therefore on the same level,
and the tier spacing in the cubicle can be kept correspondingly low.
• 3RP15: 22.5 mm
Time relays with 1 changeover contact are 82 mm in height and have six
possible terminals
Time relays with 2 changeover contacts are 102 mm in height and have a
possible twelve terminals

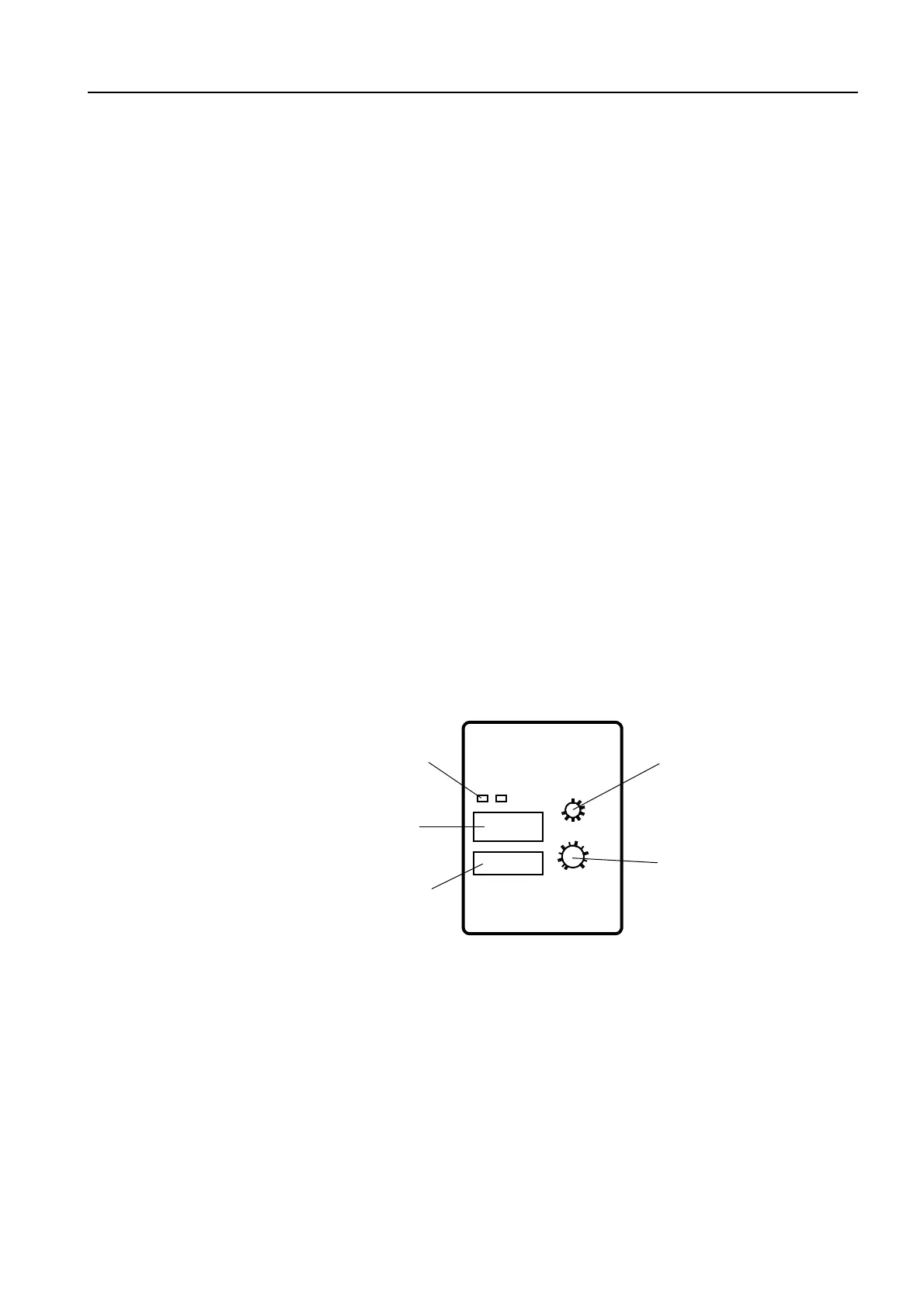

View of the 3RP10
Figure 7-1: 3RP1000 solid-state time relay, multifunctional
3RP10 features
The features of the 3RP10 solid-state time relay:
• 1 changeover contact
• Eight selectable time ranges
• Adjustable runtime from 0.05 s to 10 hr
• Contact position and voltage indication by means of LED
• Safe isolation between the control and load sides in acc. with
DIN VDE 0106 Part 101
• Combination voltage 24 VAC/VDC / 200-240 VAC and 24 VAC/VDC /
100-127 VAC
• Single-function device for the on-delay function
• Multifunctional device with 7 functions
18NO
15C
16NC A2-
3RP
A1B1A3+B3+
1 s
10 s
1 min
100 s
10 min
1 h
100 min
10 h
5
100%
20
40
60
80
Time-range selector
switch
Runtime adjuster
LED indicators
Coding plug
for function
selection
Device type plate
To Next Page
