3RP10, 3RP15 solid-state time relays
SIRIUS System Manual
GWA 4NEB 430 0999-02b
7-9
Function setting
The connector with the function you want is removed from the coding plug
set and put on the time relay as shown in the following diagram:

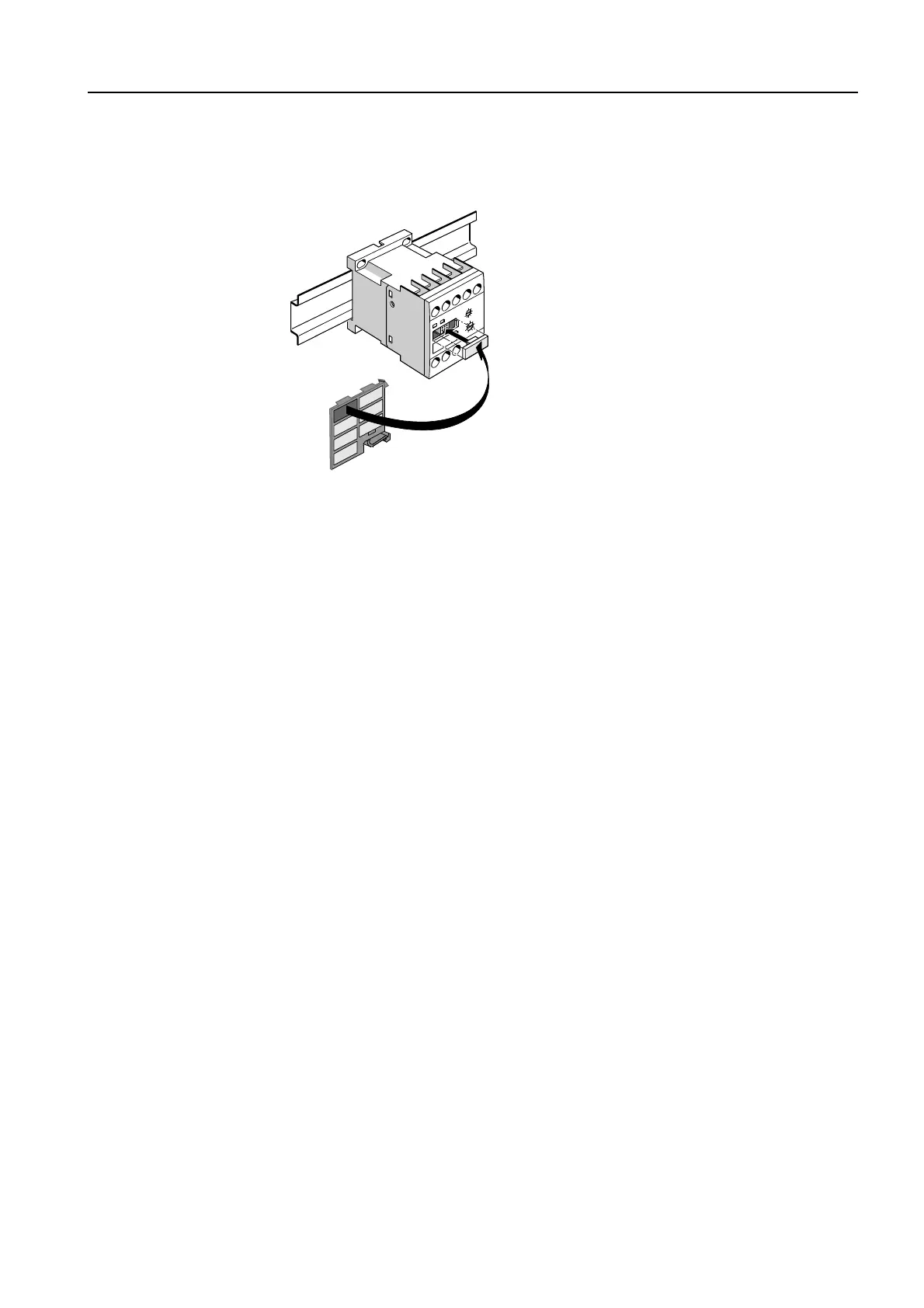

Figure 7-4: 3RP10 00 (multifunctional) function setting
The name of the function and the corresponding circuit diagram are printed
on the coding plugs in German and English.
