3RU11, 3RB10, and 3RB12 overload relays
SIRIUS System Manual
GWA 4NEB 430 0999-02b
4-25
Wire release
Installation
Example 3RU11, frame size S00:

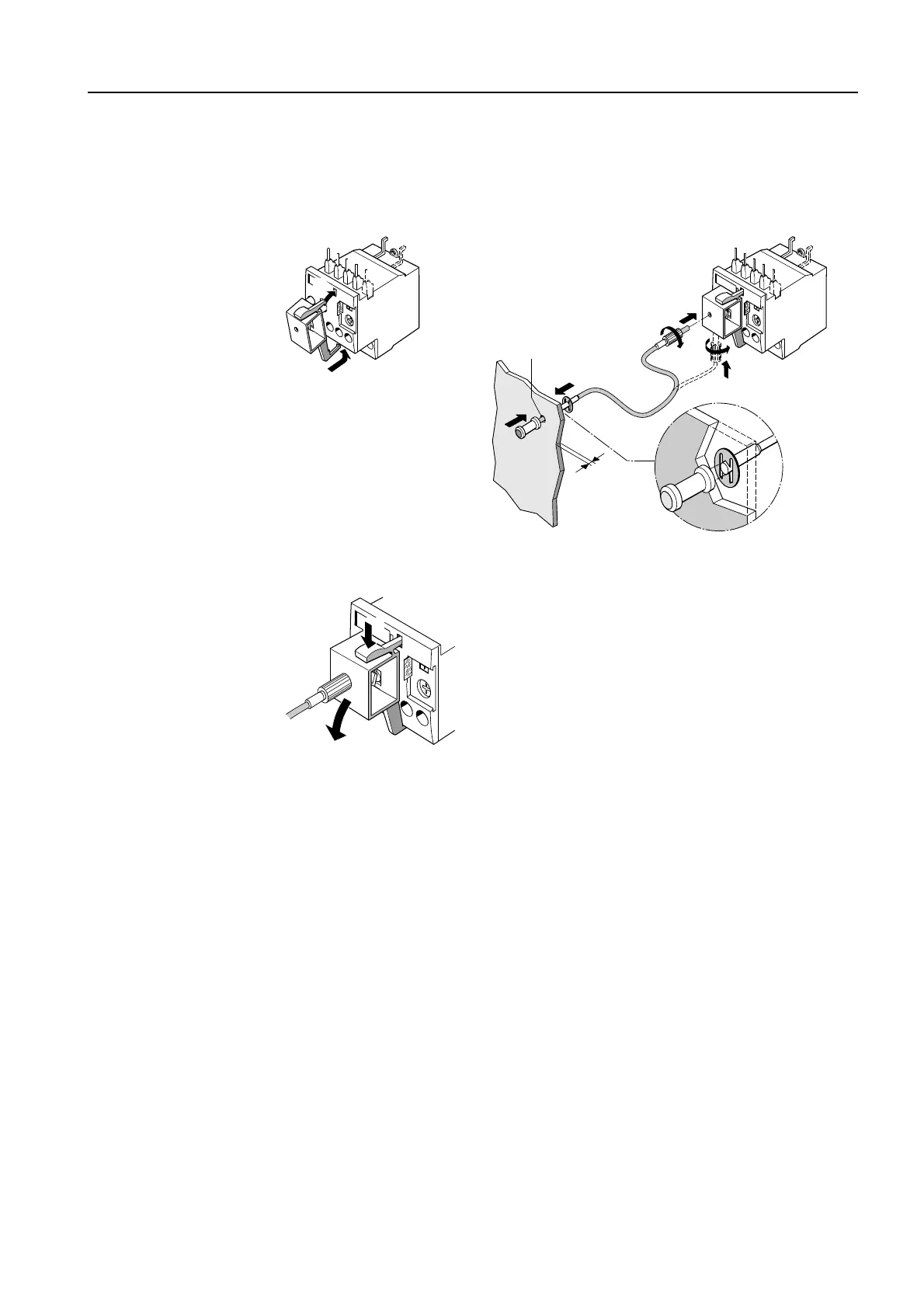

Figure 4-16: Mechanical remote reset: wire release, installation
Removal
Figure 4-17: Mechanical remote reset: wire release, removal
Sealable cover
A sealable cover is available as an accessory for the 3RB10 electronic over-
load relay.
In the case of the 3RU11 thermal overload relay, the cover is integrated in
the device.
1
2
5
6
4
3
4
Ø 6.5 mm
≤
8 mm
2
1
