3RV1 circuit breakers
SIRIUS System Manual
GWA 4NEB 430 0999-02b
2-43
Mounting the 3-phase
busbars

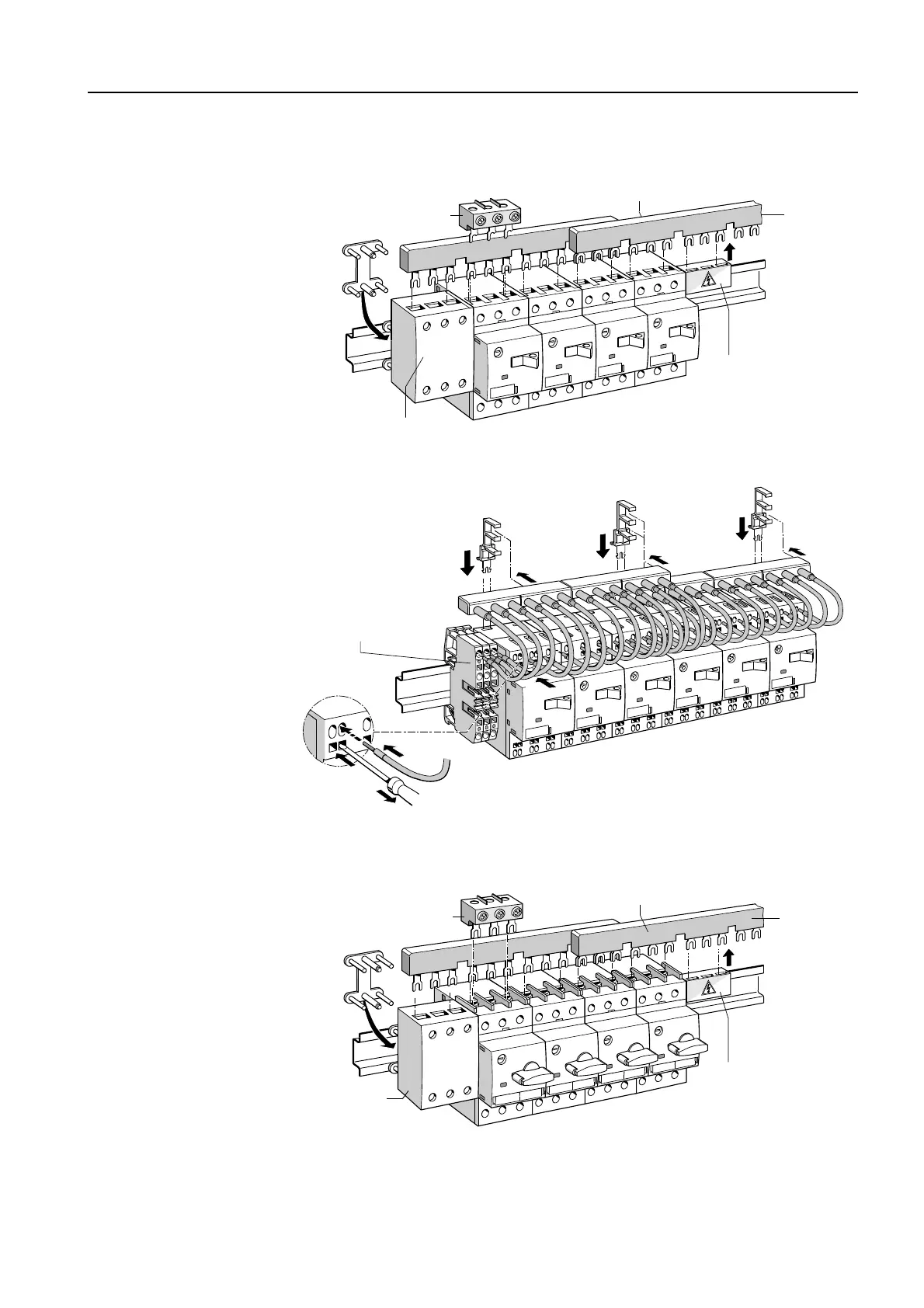

Figure 2-29: Mounting the isolated 3-phase busbar system (frame sizes S00 to S0)
S0
S00:
Cage Clamp
S00
Turned
180°
3RV1915-5B
3RV1915-6AB
3RV1915-.AB
3b
3a
3c
3
1
1
2
3RV1925-5AB
3RV1915-5B
3RV1915-6AB
3RV1915-.AB
8WA2011-1DG30
Turned
180°
3RV1915-5A
