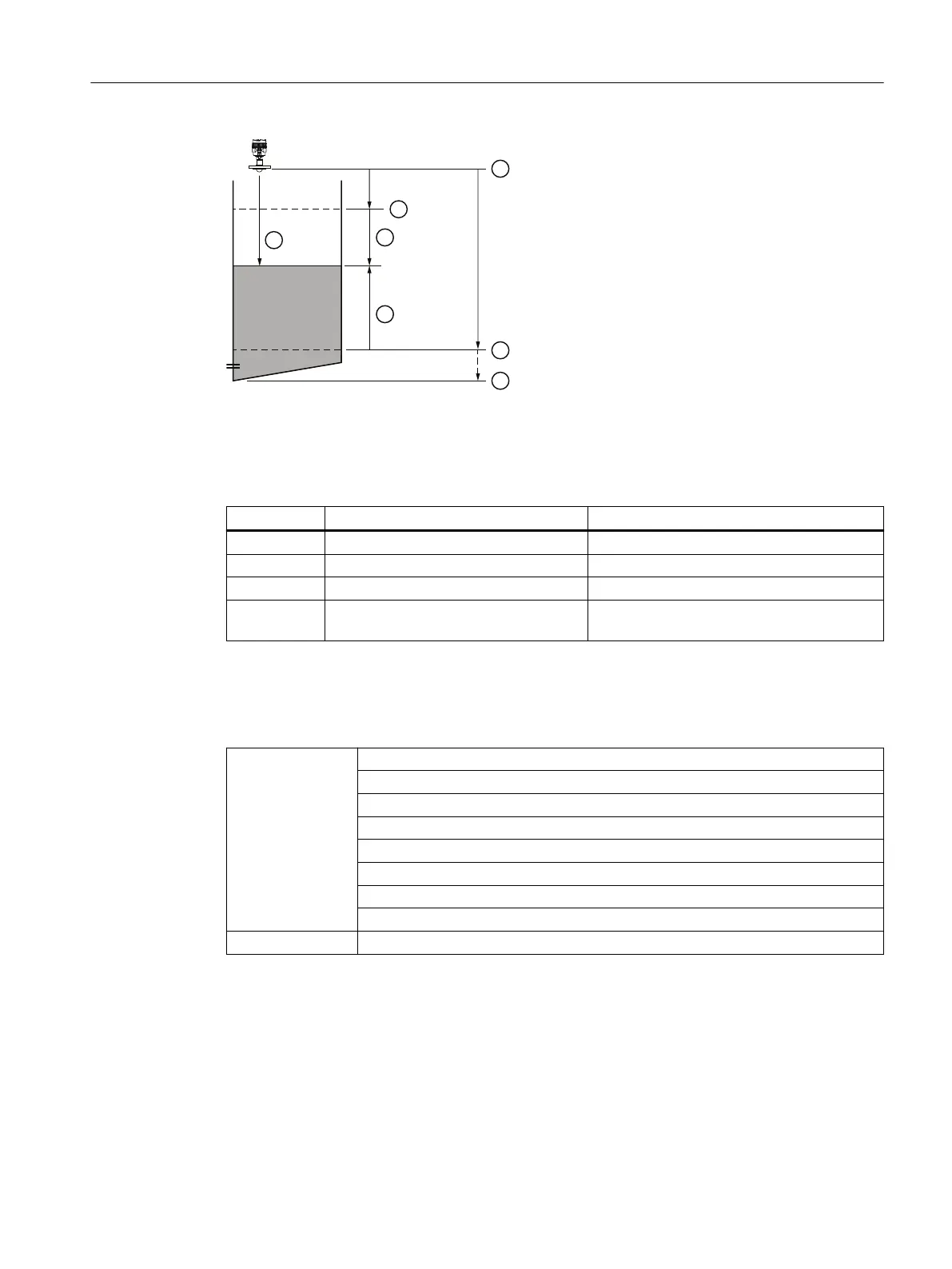

① Distance ⑤ Lower calibration point
② Space ⑥ Far range
③ Upper calibration point ⑦ Level
④ Sensor reference point
Option Description Reference point
Level Distance to material surface Lower calibration point (process empty level)
Space Distance to material surface Upper calibration point (process full level)
Distance Distance to material surface Sensor reference point
Volume Volume of material in Volume units
(based on le
vel)
Lower calibration point
9.2.1.2 SV selection (2.1.2)
Se
ts the secondary variable by selecting a process value that corresponds to the loop current.
Setting
Level
Space
Distance
Signal strength
Condence
Volume
Custom
Electronics temperature
Default Distance
9.2.1.3 TV selection (2.1.3)
Se
ts the tertiary variable by selecting a process value that corresponds to the loop current.
Parameter assignment
9.2Setup (2)
SITRANS LR500 series with mA/HART
Operating Instructions, 03/2024, A5E51099898-AA 115
