Dimension drawings
13

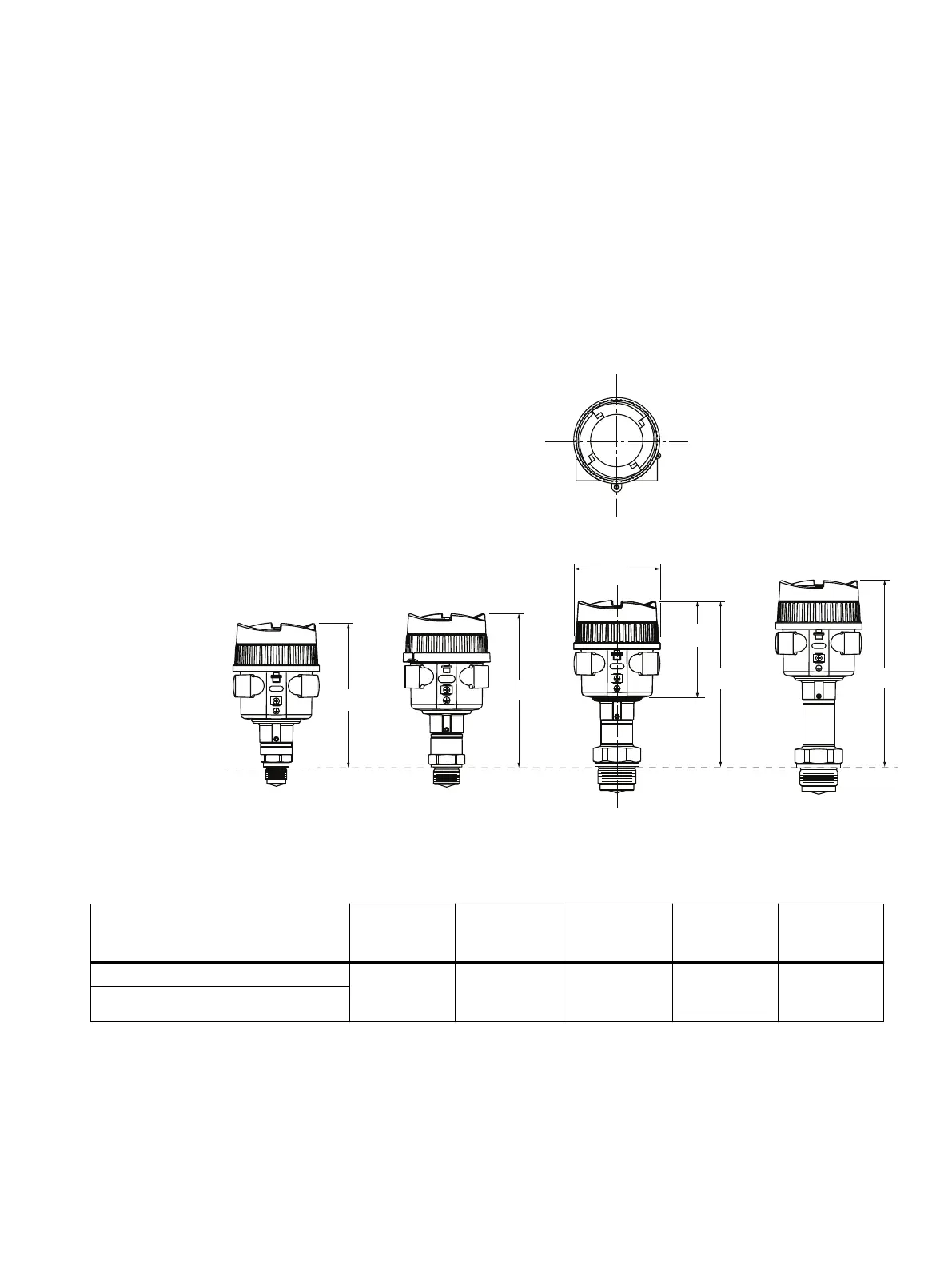

13.1 LR510 threaded lens antenna
3/4 inc
h
1 inch
1-1/2 inch
1-1/2 inch with thermal
extension
$
$
$
$
‑ - - - Sensor reference point
Dimensions in mm(inch)
Antenna type A mm (inch) Recommen‐
ded max.
r
ange m (ft)
Beam angle Process seal
material
Temperature
Thread G3/4" PN40, DIN3852-A 182.3 (7.18) 10 (32.8)
14° FKM -40 ... +150 °C
(-40 ... +302
°F)
Thread 3/4" NPT, ASME B1.20.1
SITRANS LR500 series with mA/HART
Operating Instructions, 03/2024, A5E51099898-AA 187
