489
4-3. Do-it-yourself mai
ntenance
4
Maintenance and care
■

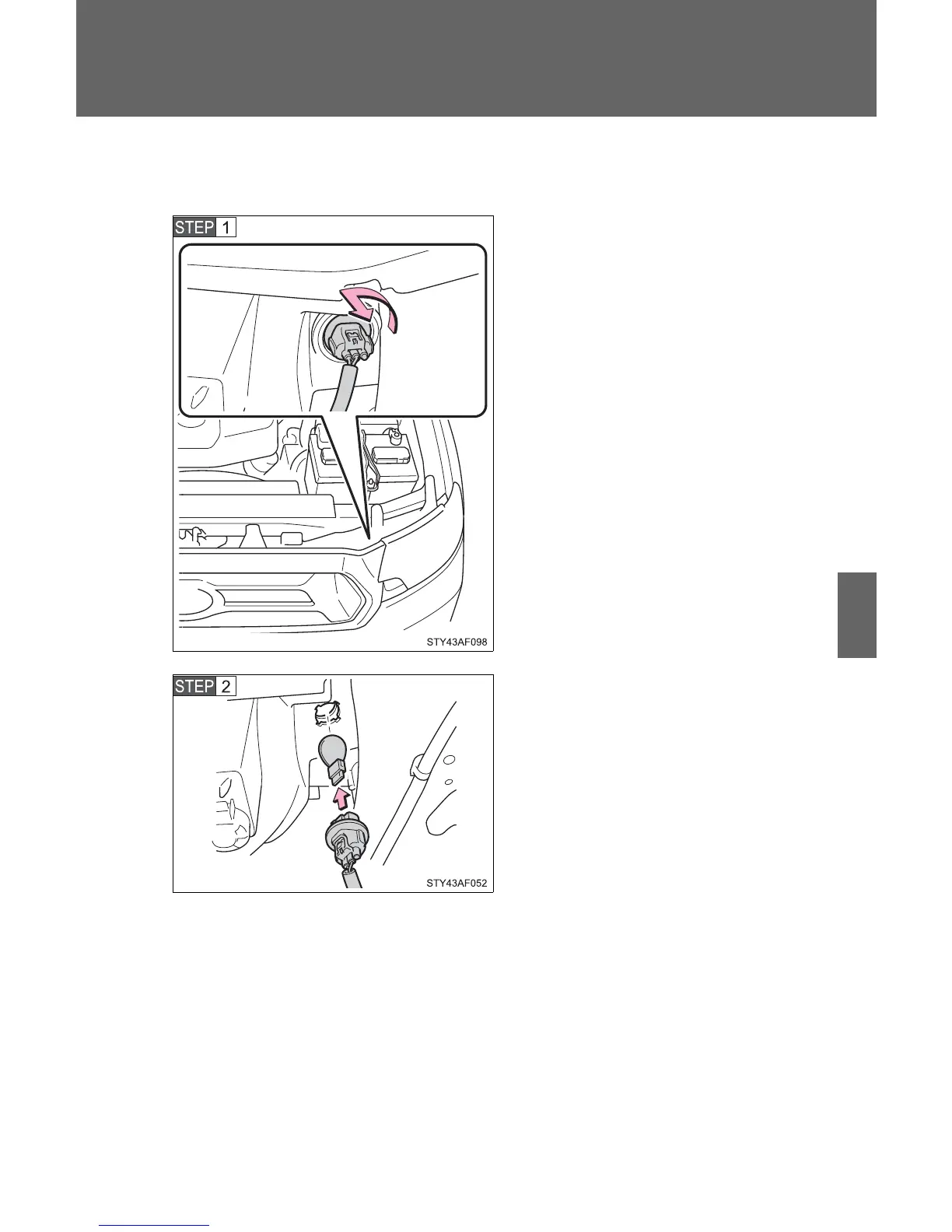

Front turn signal lights/p
arki
ng light
s/daytime running light
s
(if equipped)
T
urn the bulb base counterclock-
wise.
Remove t
he light b
ulb.
808
810
