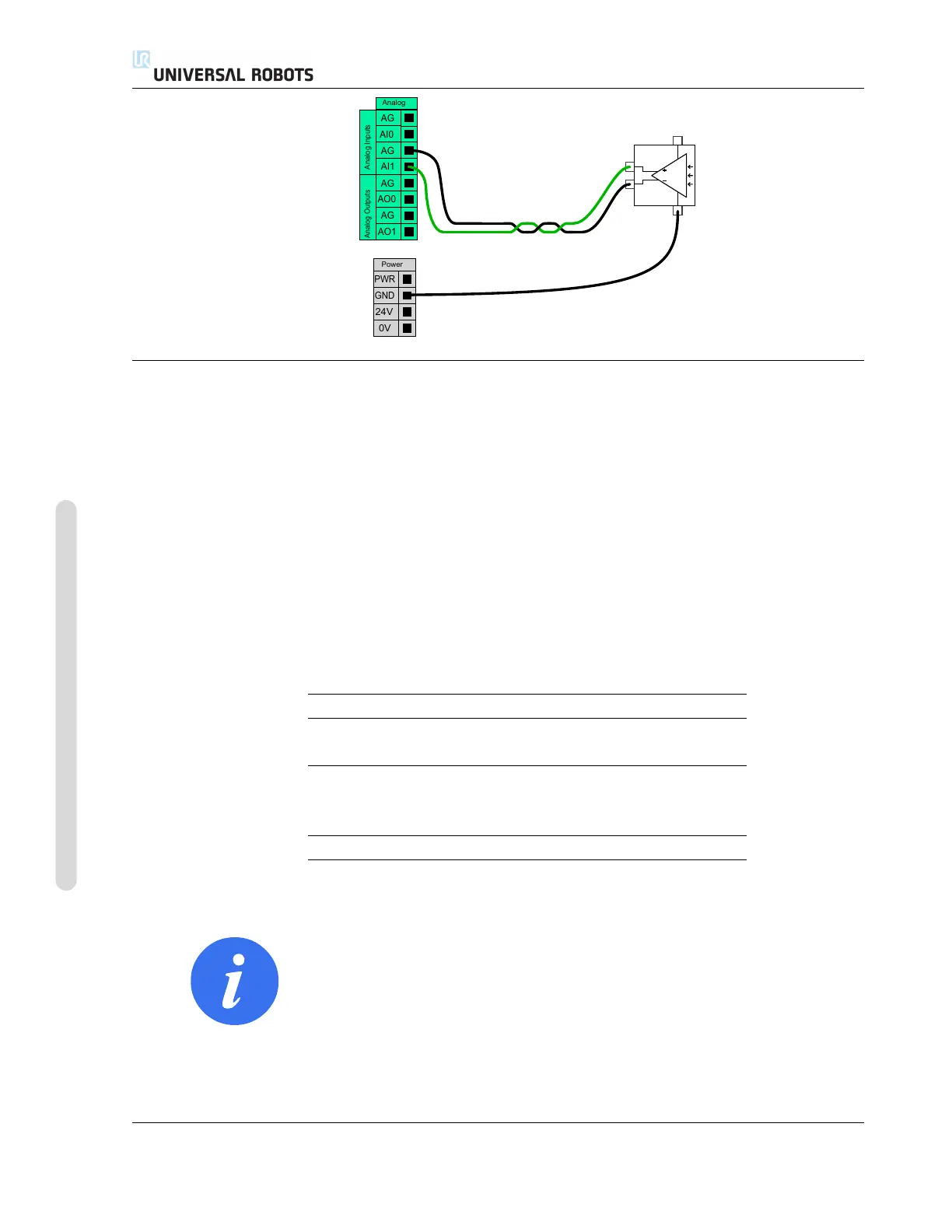

5.3 Controller I/O
AG
AI1
AG
AO0
AG
AO1
AG
AI0
Analog
Analog Outputs
Analog Inputs
24V
0V
PWR
GND
Power
5.3.7 Remote ON/OFF control
Remote ON/OFF control can be used to turn the control box on and off without using the teach
pendant. It is typically used in the following applications:
• When the teach pendant is inaccessible.
• When a PLC system must have full control.
• When several robots must be turned on or off at the same time.
The remote ON/OFF control provides a small auxiliary 12V supply, which is kept active when the
controller box is turned off. The “on” and “off” inputs are intended for short time activation only.
The “on” input works in the same way as the power button. Always use the “off” input for remote
“off” control as this signal allows the control box to save open files and shut down correctly.
The electrical specifications are shown below.
Terminals Parameter Min Typ Max Unit
[12V - GND] Voltage 10 12 13 V
[12V - GND] Current - - 100 mA
[ON / OFF] Inactive voltage 0 - 0.5 V
[ON / OFF] Active voltage 5 - 12 V
[ON / OFF] Input current - 1 - mA
[ON] Activation time 200 - 600 ms
The following examples show how to use remote ON/OFF.
NOTE:
A special feature in the software can be used to load and start pro-
grams automatically, see part II.
UR3/CB3 I-40 Version 3.10
Copyright © 2009–2019 by Universal Robots A/S. All rights reserved.
