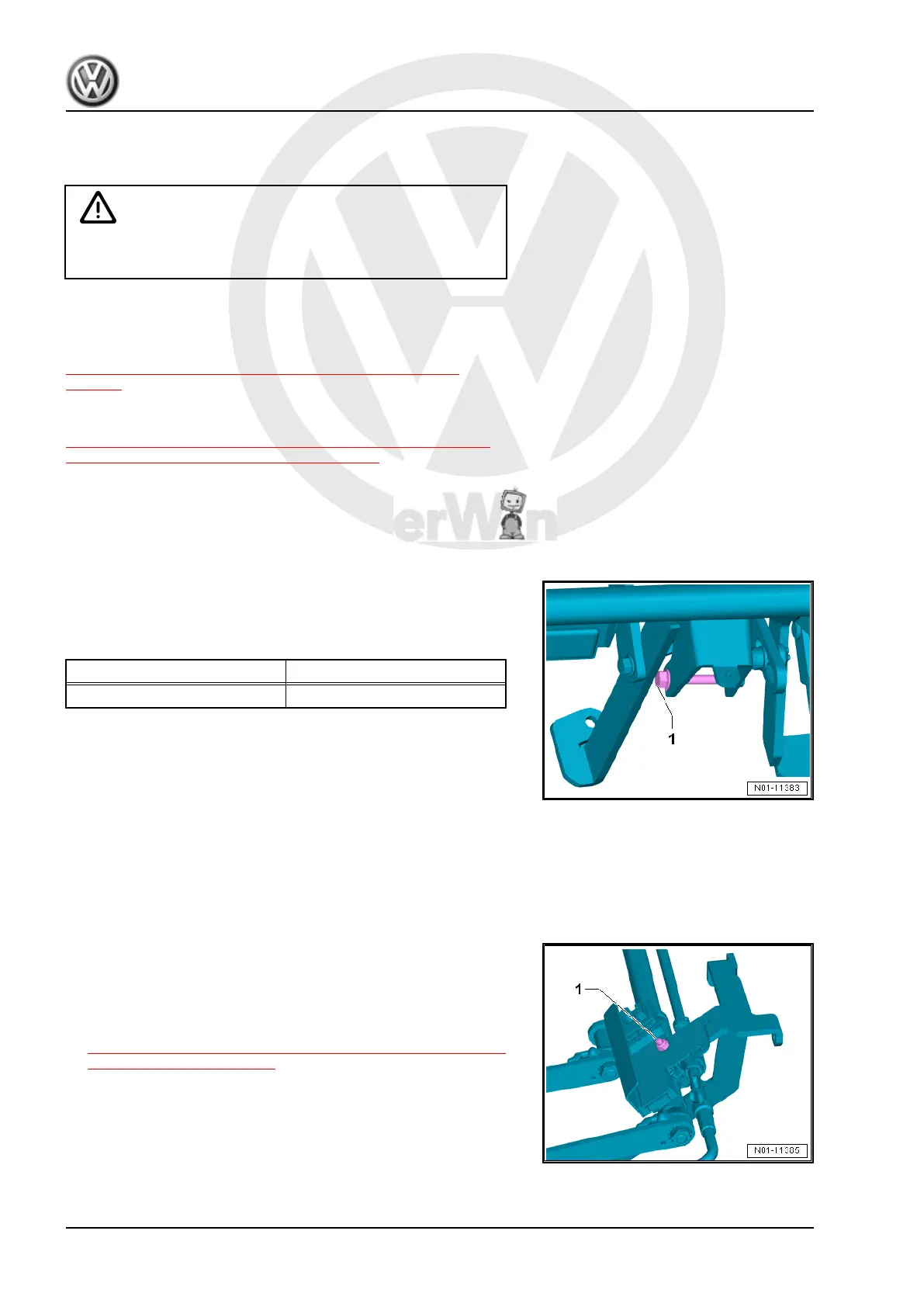

Check all the following specified threaded connections for secure
fit, perform a visual inspection of all the driving school pedal
threaded connections not mentioned.
Caution
The tension on the driving school pedals spring must never be
retightened as there is a risk of breakage.
For defects with the driving school pedals, please contact the
Volkswagen dealer center with replacement part requests.
Driving School Pedal Components, Lubricating. Refer to
⇒ “4.23 Driving School Pedals, Lubricating Components”,
page 89 .
Activation Timing for the Control Equipment Warning Buzzer, Ad‐
justing. Refer to
⇒ “4.26 Driving School Pedals, Adjusting Activation Timing for
Control Equipment Warning Buzzer”, page 97 .
4.24.2 Threaded Connection on Brake Carrier,
Checking for Secure Fit, Driver Side
Driving School Pedals
Golf Sedan
– Turn off the ignition and remove the key.
– Check bolt -1- for secure fit.
Tightening Specifications
Component Tightening Specification
Bolt -1- 10 Nm
4.24.3 Threaded Connection on Shaft Bearing
Mounting Bracket, Checking for Secure
Fit, Front Passenger Side Driving
School Pedals
Golf Sedan
– Turn off the ignition and remove the key.
– Check bolt -1- for secure fit.
Tightening Specifications
♦ Refer to
⇒ “4.22.2 Overview - Driving School Pedals, Front Passenger
Side, Golf Sedan”, page 85
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
94 4. Procedure Descriptions
