4.22 Overview - Driving School Pedals
⇒ “4.22.1 Overview - Driving School Pedals, Driver Side, Golf
Sedan”, page 84
⇒ “4.22.2 Overview - Driving School Pedals, Front Passenger
Side, Golf Sedan”, page 85

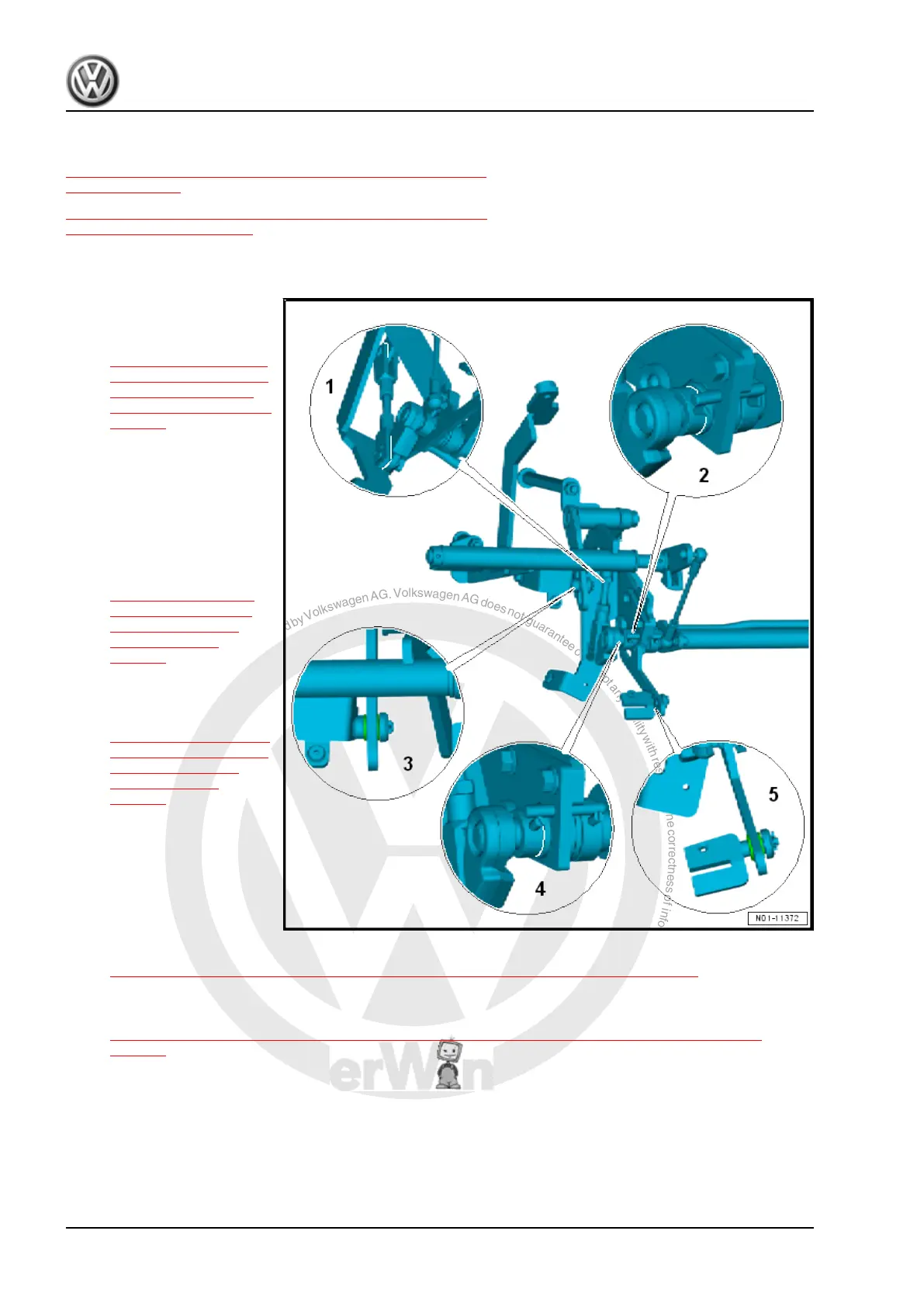

4.22.1 Overview - Driving School Pedals, Driver Side, Golf Sedan
1 - Brake Carrier Push Rod
❑ Grease the Brake Carri‐
er Push Rod. Refer to
⇒ “4.23.4 Brake Trans‐
fer Push Rod Joint, Lu‐
bricating, Driver Side
Driving School Pedals”,
page 90
2 - Shaft for the Brake and
Clutch Pedal Carrier in the
Mounting Bracket, Right Bear‐
ing Area
❑ Shaft for the Brake and
Clutch Pedal Carrier in
the Mounting Bracket,
Greasing the Right
Bearing Area. Refer to
⇒ “4.23.5 Right Shaft
Bearing, Lubricating,
Driver Side Driving
School Pedals”,
page 91
3 - Brake Carrier Slot Lever
❑ Brake Carrier Slot Lever
Greasing. Refer to
⇒ “4.23.2 Brake Carrier
Slot Lever, Lubricating,
Driver Side Driving
School Pedals”,
page 89
4 - Shaft for the Brake and
Clutch Pedal Carrier in the
Mounting Bracket, Left Bear‐
ing Area
❑ Shaft for the Brake and
Clutch Pedal Carrier in
the Mounting Bracket,
Greasing the Left Bear‐
ing Area. Refer to
⇒ “4.23.6 Left Shaft Bearing, Lubricating, Driver Side Driving School Pedals”, page 91
5 - Accelerator Pedal Carrier Slot Lever
❑ Accelerator Pedal Carrier Slot Lever, Greasing. Refer to
⇒ “4.23.3 Accelerator Pedal Carrier Slot Lever, Lubricating, Driver Side Driving School Pedals”,
page 90
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
84 4. Procedure Descriptions
