phase. The headlamp range control initialization occurs after the
vehicle engine start or terminal 15 connection is established.

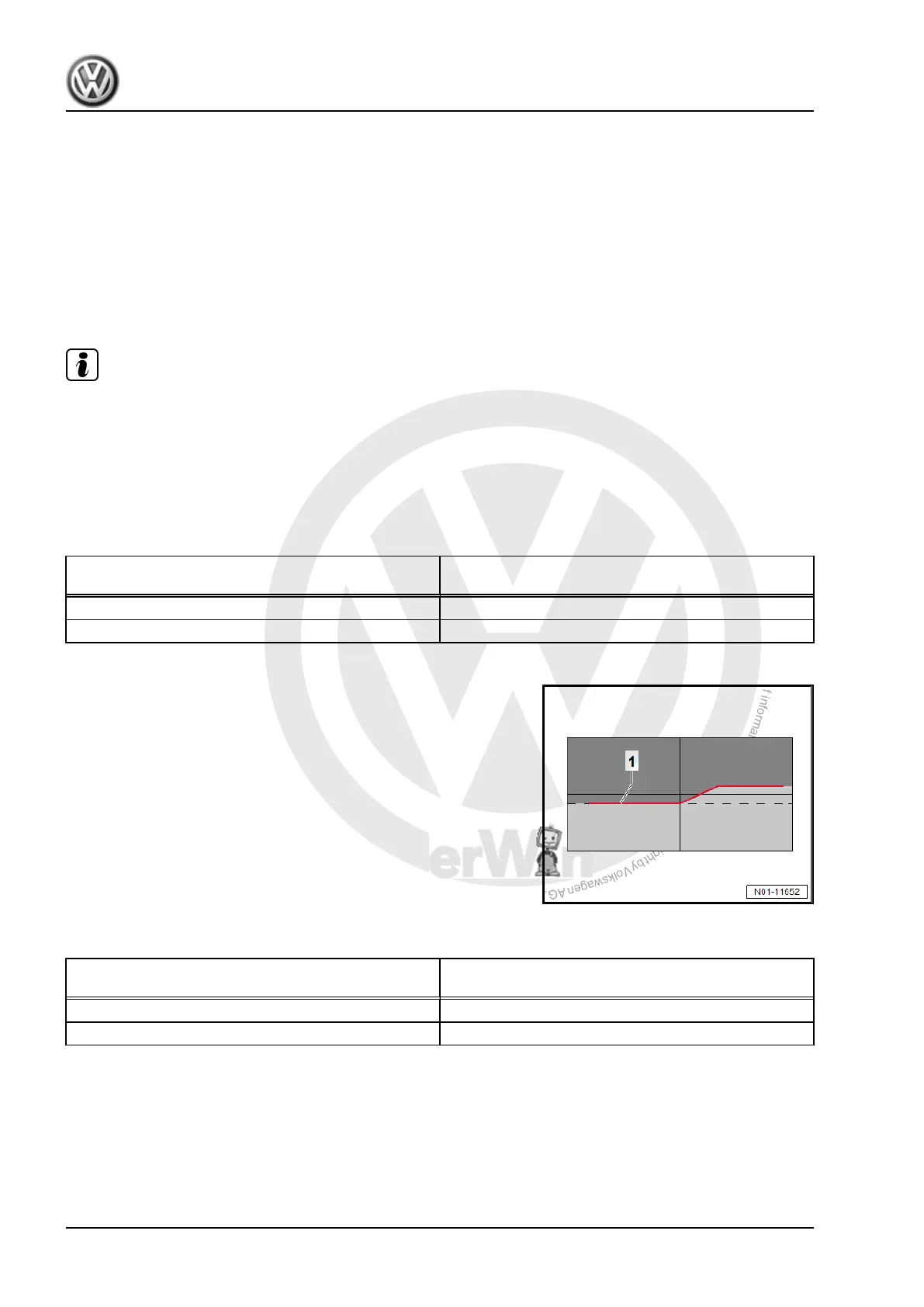

4.57.2 Headlamp Adjustment, Checking (SAE)
Special tools and workshop equipment required
♦ Headlamp Adjusting Unit - VAS5046A-
♦ Headlamp Adjusting Unit - VAS5047A-
♦ Headlamp Adjuster - VAS5208A-
♦ Vehicle Diagnostic Tester
Note
♦
The designation VOL/VOR is visible on the headlamp from the
exterior.
♦
The sideways adjustment is sealed on SAE headlamps.
The adjustment of the angle dimension on headlamp adjusting
unit is based on the fuel tank fill level.
Angle Dimension for SAE VOL HID Headlamp, LED Headlamp
and Dynamic Light Assist Headlamp
Fuel gauge
level
Angle dimension
0 to 1/2 0.7 %
1/2 to 1 0.7 %
VOL: visual optical aim left -1-
– Check if the left level cut-off line contacts the dividing line -1-
on the headlamp adjusting unit test surface.
Angle Dimension for SAE VOR HID Headlamp, LED Headlamp
and Dynamic Light Assist Headlamp
Fuel gauge
level
Angle dimension
0 to 1/2 0.0 %
1/2 to 1 0.0 %
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
162 4. Procedure Descriptions
