Note
Slowly fill with engine oil. Narrow filler tube with housing structure
underneath. The oil drains very slowly. Add engine oil using the
Filling Aid for Engine Oil - VAS6842- if necessary.
– Then check the oil level and correct if necessary. Refer to
⇒ “4.45 Engine Oil Level, Checking”, page 128 .
– Install the engine cover. Refer to
⇒ “4.43.2 Engine Cover, Removing and Installing, 2.0L TSI
Engine”, page 127 .
4.46.6 Engine Oil, Filling

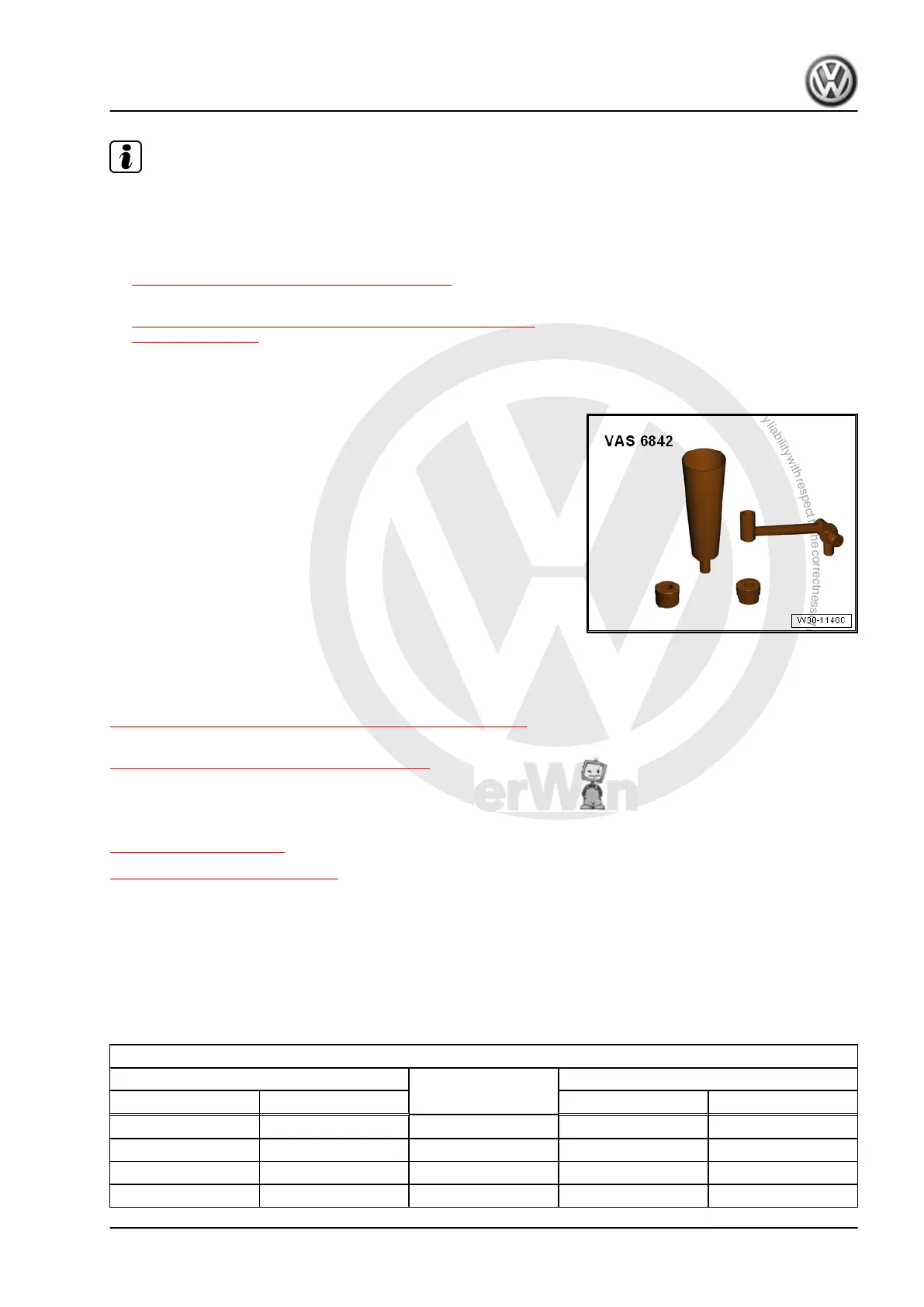

Special tools and workshop equipment required
♦ Filling Aid for Engine Oil - VAS6842-
– Use the Filling Aid for Engine Oil - VAS6842- if necessary to
fill the oil.
Engine Oil Capacities and Specifications. Refer to
⇒ “4.47 Engine Oil, Capacities and Specifications”, page 141 .
Engine Oil Level, Checking. Refer to
⇒ “4.45 Engine Oil Level, Checking”, page 128 .
4.47 Engine Oil, Capacities and Specifica‐
tions
⇒ “4.47.1 Golf”, page 141 .
⇒ “4.47.2 Golf Wagon”, page 141 .
4.47.1 Golf
Refer to the ⇒ Fluid Capacity Tables; Rep. Gr. 03
4.47.2 Golf Wagon
Refer to the ⇒ Fluid Capacity Tables; Rep. Gr. 03
4.47.3 Sportsvan
Sportsvan
Gasoline Engines Oil capacity with filter
(l)
Volkswagen Engine Oil Standards
Engine codes Displacement/output With flexible service With fixed service
CHPB 1.4L 110kW
4.0
--- 502 00
CHZD 1.0L 85kW 4.0 504 00 502 00
CJZD 1.2L 81kW 4.0 504 00 502 00
CPVB 1.4L 92kW 4.0 --- 502 00
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
4. Procedure Descriptions 141
