VOR: visual optical aim right -2-

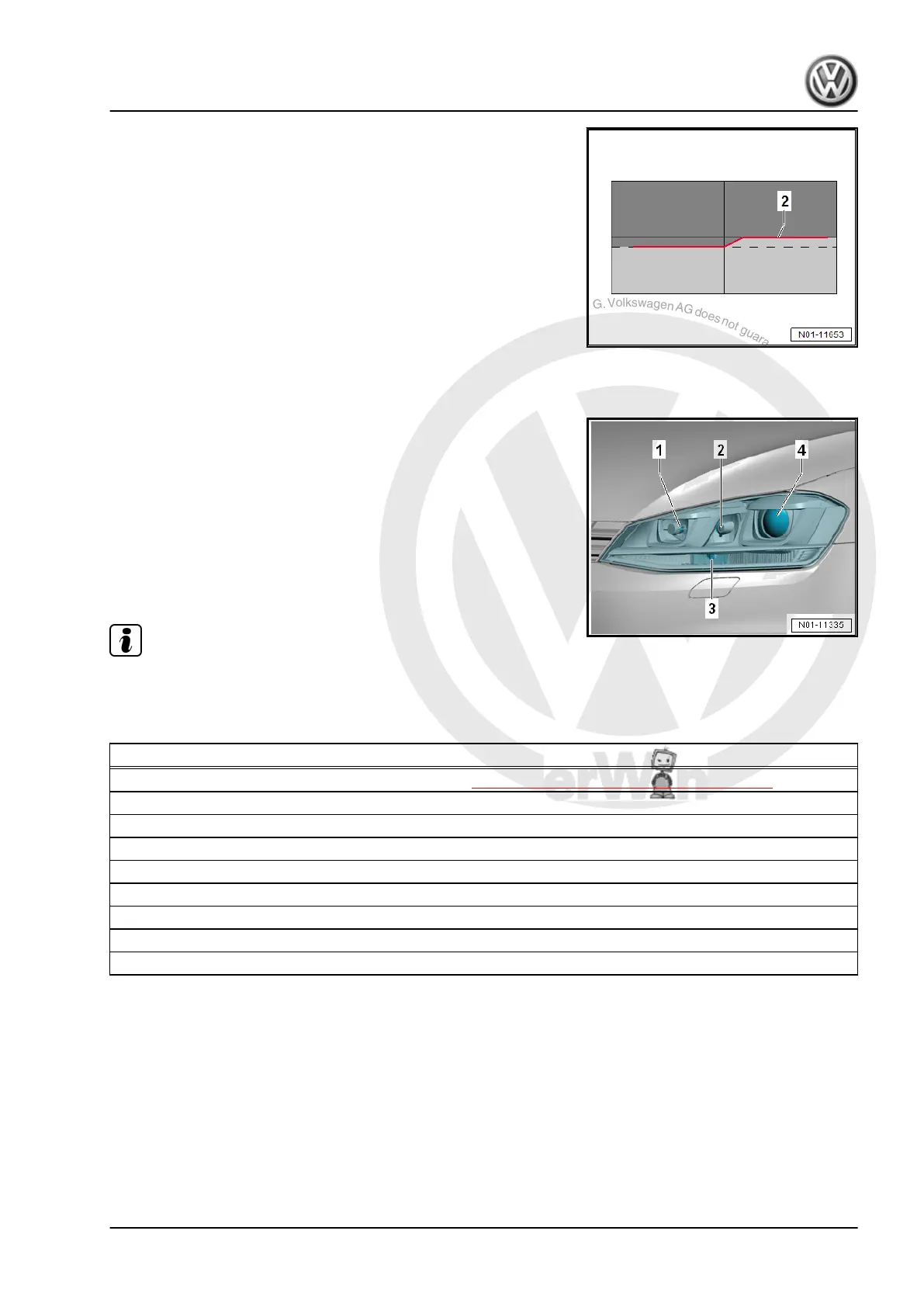

– Check if the right level cut-off line contacts the dividing line
-2- on the headlamp adjusting unit test surface.
4.57.3 HID Headlamps without “Dynamic Light
Assist”, Adjusting
Overview for HID headlamp without “Dynamic Light Assist” Golf
1 - Left Daytime Running Lamp Bulb - L174- or Right Daytime
Running Lamp Bulb - L175-
2 - Left Cornering Lamp Bulb - L148- or Right Cornering Lamp
Bulb - L149-
3 - Left Front Turn Signal Bulb - M5- or Right Front Turn Signal
Bulb - M7-
4 - Left Hid Headlamp Bulb - L13- or Right Hid Headlamp Bulb
- L14-
Note
Adjusting the headlamps is invoiced separately.
Headlamp Range Control, Performing Basic Setting
ODIS Service
– Connect the Vehicle Diagnostic Tester . Refer to ⇒ “3.5 Vehicle Diagnostic Tester ”, page 14 .
– Switch on the ignition.
– Perform the vehicle identification.
– Enter the work order data or select “no work order”.
– Select “control module”.
– Select “headlamp range control”.
– Select “Guided Functions”.
– Select “basic setting”.
– Follow the “Guided Functions” instructions.
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
4. Procedure Descriptions 163
To Next Page
