4.44 “Lower” Engine Compartment Cover
(Noise Insulation), Removing and Instal‐
ling
Procedure
Removing the -lower- engine cover (noise insulation) can be
found in the repair manual under:
Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Noise Insulation; Over‐
view - Noise Insulation .
4.45 Engine Oil Level, Checking
Please Observe the Following:
– After turning off the engine, wait at least three minutes for the
oil to flow back into the oil pan.
– Pull out the oil dipstick and wipe it with clean cloth. Insert the
dipstick and push it all the way down.
– Pull out dipstick again and read oil level.
Version 1
Note
The amount of oil used during an engine oil change from the
service table is determined by trial, and is sufficient for the engine
operation in all operating conditions. For all services the oil level
must be adjusted if necessary if the customer requests it. This
makes an additional filling possible to the specified oil change
amount to the maximum limit on the dipstick. Due to tolerances
and also to oil temperature and flow back time, different fill ca‐
pacities are possible.

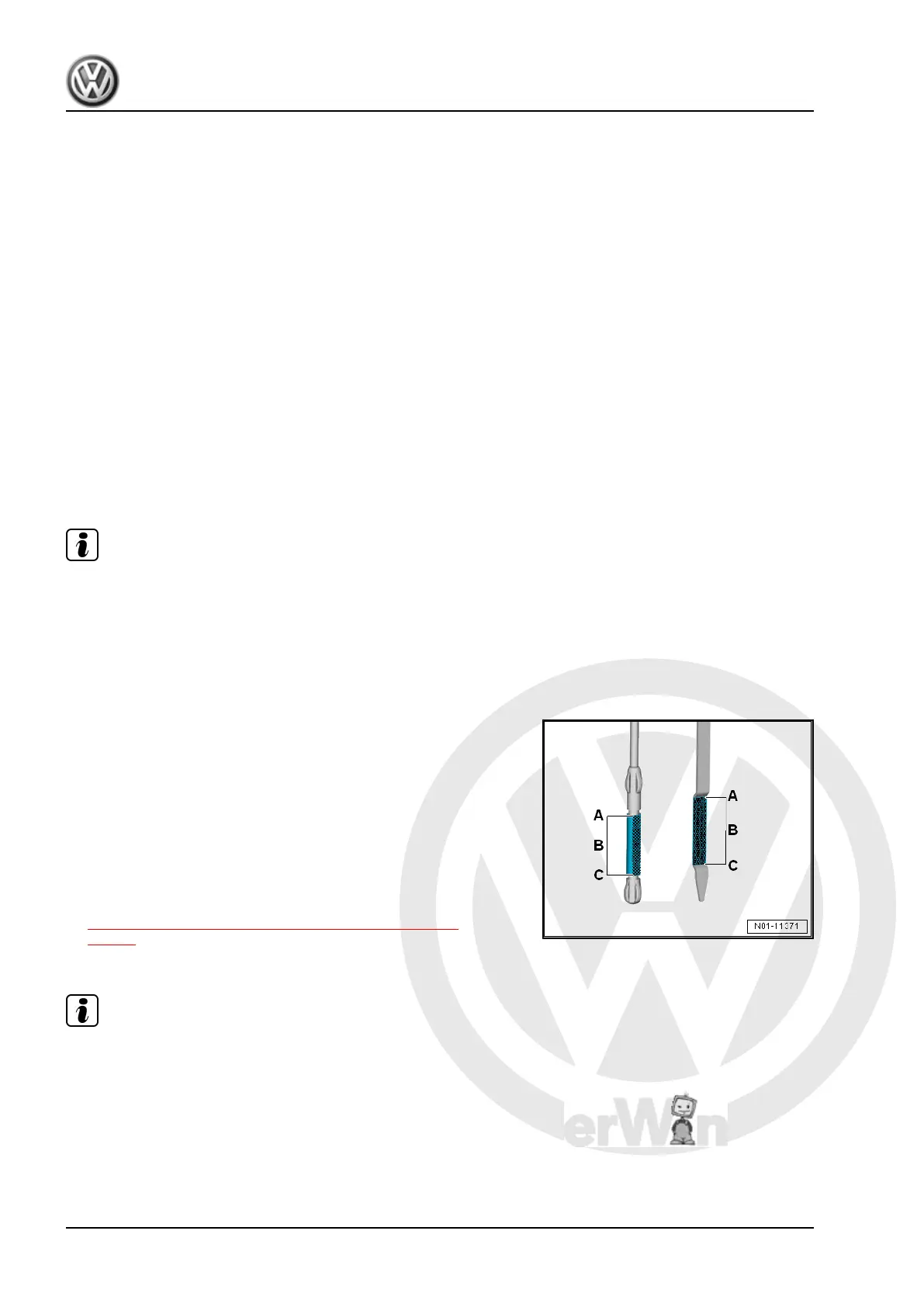

A - Do not add oil.
B - The oil can be filled to the maximum limit -A-.
C - Add oil. The oil level must be at least in the upper half of the
measuring range -B-.
– Drain or extract some of the oil if the oil level goes above the
maximum limit -A- to prevent damage to the catalytic convert‐
er.
– If the oil level is under the minimum mark -C- fill the oil, mini‐
mum of 0.5 liters. Refer to
⇒ “2.2 Maintenance Tables for Market Designation A”,
page 5 for the oil specification.
Version 2
Note
The amount of oil used during an engine oil change from the
service table is determined by trial, and is sufficient for the engine
operation in all operating conditions. For all services the oil level
must be adjusted if necessary if the customer requests it. This
makes an additional filling possible to the specified oil change
amount to the maximum limit on the dipstick. Due to tolerances
and also to oil temperature and flow back time, different fill ca‐
pacities are possible.
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
128 4. Procedure Descriptions
