4.74 Coolant Pump Toothed Belt, Checking
⇒ “4.74.1 Toothed Belt Condition, Checking, 1.4L TSI Engines”,
page 204 .
4.74.1 Toothed Belt Condition, Checking, 1.4L
TSI Engines
Procedure

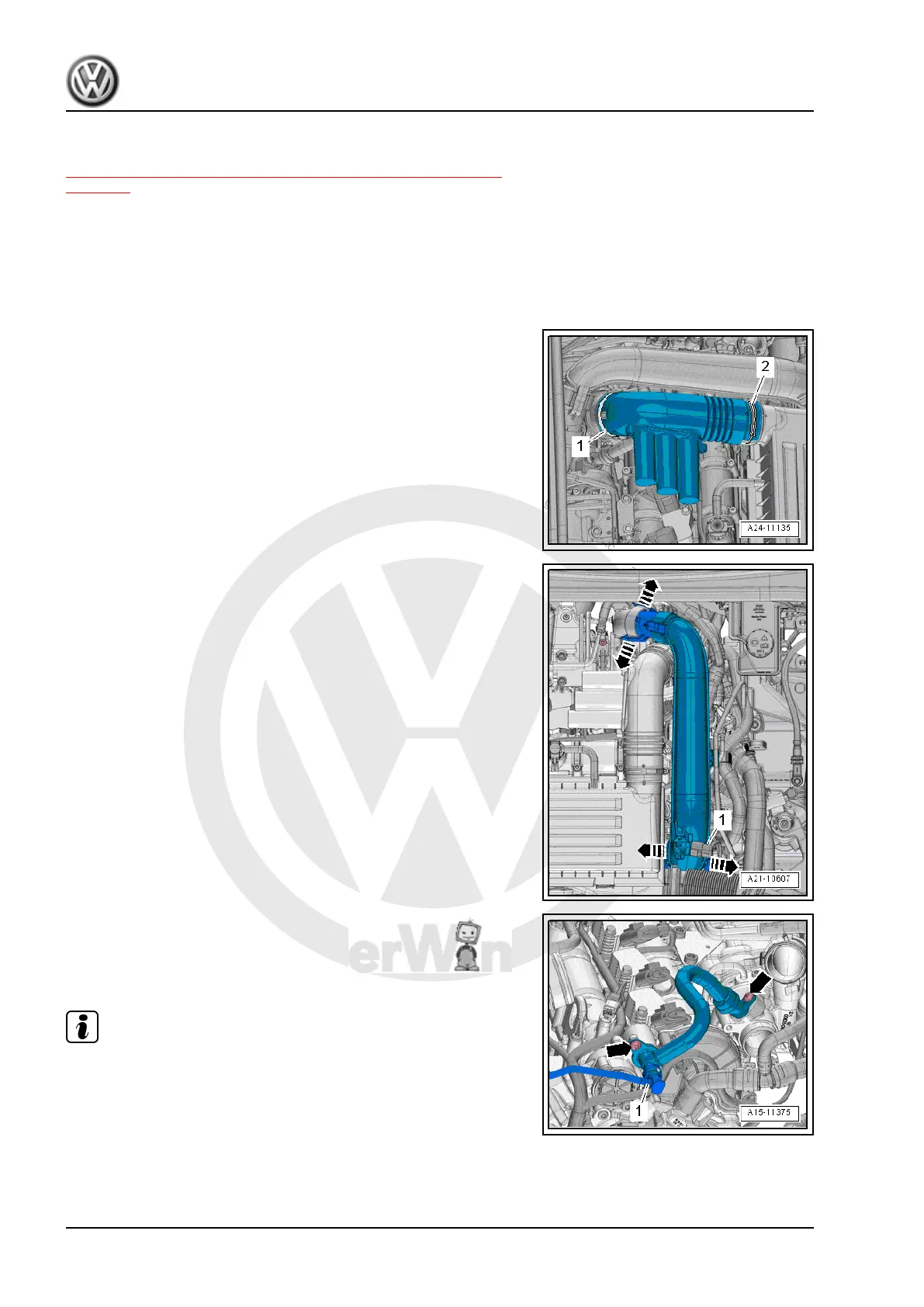

– Loosen the hose clamps -1 and 2- and remove the air duct
pipe.
– Free up air guide hoses from the air duct pipe.
– Disconnect the connector -1-.
– Release the catches -arrows-, and remove the air duct pipe.
– Push the release button, and remove the EVAP canister hose
-1-.
– Remove the bolts -arrows- and remove the crankcase venti‐
lation hose.
Note
♦ If an O-ring or both O-rings are damaged replace the crank‐
case ventilation hose.
♦ Coat the new O-rings with engine oil before installing.
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
204 4. Procedure Descriptions
