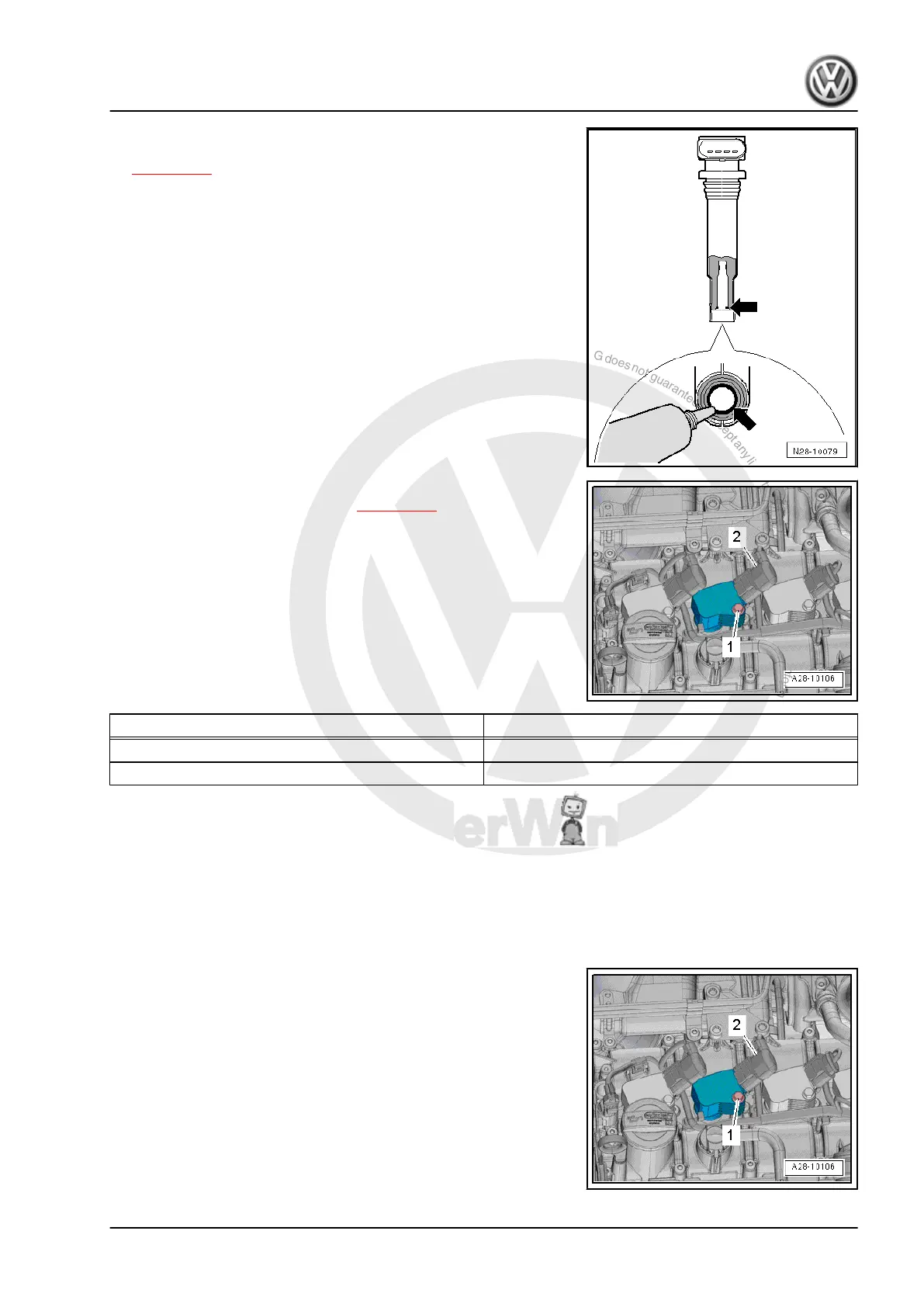

– Install the new spark plugs using the Spark Plug Removal Tool
- VAS3122B- and tighten to the specification. Refer to
⇒ page 215 .
– Apply a thin bead of Silicone Grease all around the sealing
hose on the ignition coil with power output stage -arrow-.
– Align all ignition coils with the power output stage one after the
other and insert them loosely into the spark plug shaft.
– Press the ignition coils with power output stage evenly by hand
onto spark plugs (do not use a striking tool).
– Tighten the ignition coil with power output stage bolt -1- to the
tightening specification. Refer to ⇒ page 215 .
– Connect the connector -2-.
Repeat the procedure for all ignition coils with power output stage.
– Further assembly occurs in reverse order.
Tightening Specification Nm
Spark plugs in cylinder head 25
Ignition coil with power output stage bolts. 8
4.75.4 Spark Plugs, Replacing, 1.6L SRE En‐
gine
Removing
– Remove the air filter housing. Refer to ⇒ Engine Mechanical,
Fuel Injection and Ignition; Rep. Gr. 24 ; Air Filter; Air Filter
Housing, Removing and Installing .
– Disconnect the connector -2-.
– Remove the bolt -1-.
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
4. Procedure Descriptions 215
