Checking the for bolt for secure fit. Refer to
⇒ “4.24 Driving School Pedals, Checking for Secure Bolt Fit”,
page 93 .

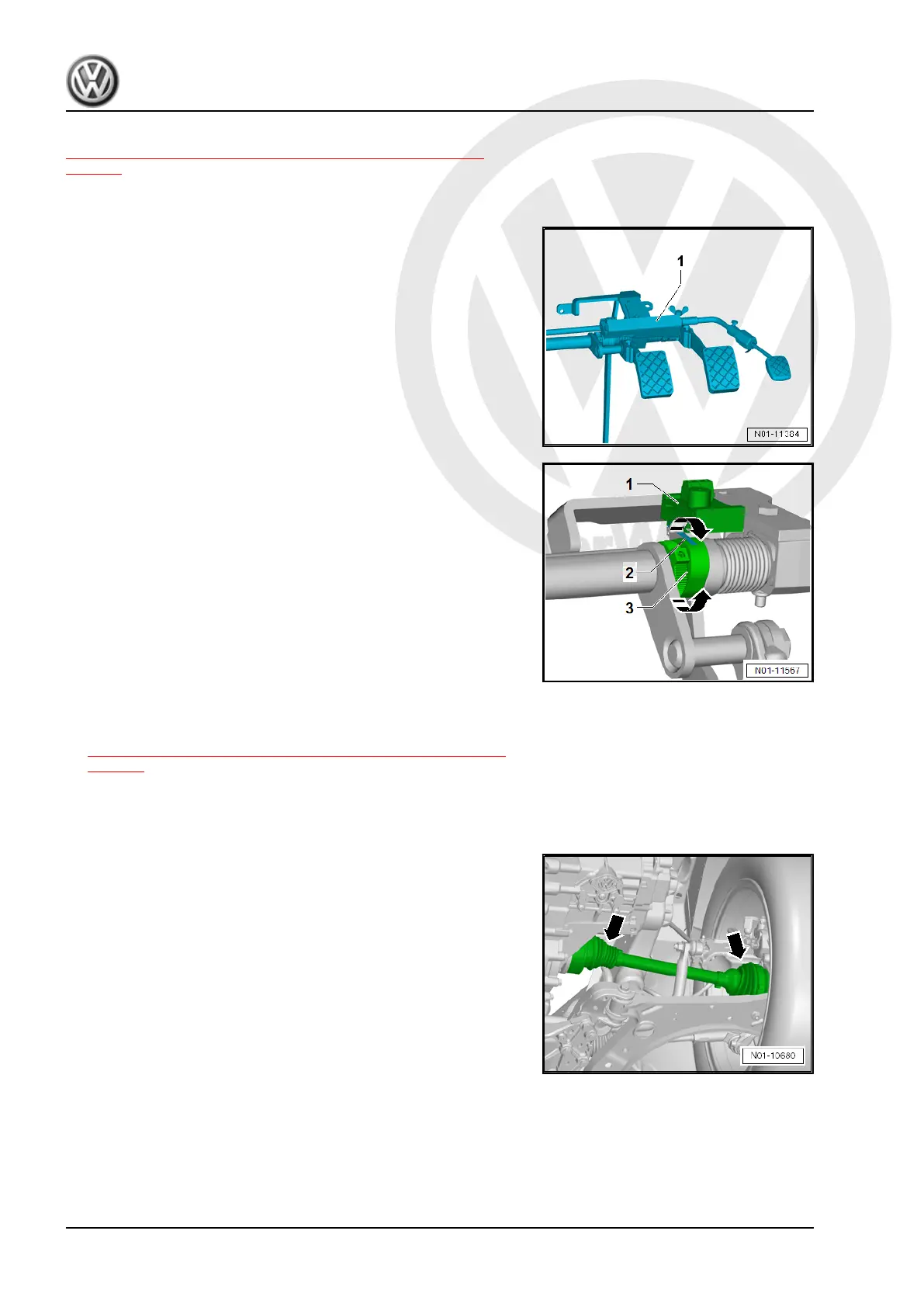

Activation Timing for the Control Equipment Warning Buzzer, Ad‐
justing
The control equipment with buzzer -1- is installed in the front pas‐
senger footwell.
The control equipment with buzzer when switched on gives an
audio signal when the pedal system in the front passenger foot‐
well is operated.
There are two switches, one for the brake pedal and one for the
clutch pedal. The procedure for adjusting the activation timing is
the same for both.
To adjust the activation timing the adjustment eccentric can be
turned.
– Turn on the control equipment with buzzer function.
– Loosen the clamping screw until the adjustment eccentric -3-
can be turned.
– Operate the pedal by hand approximately 2-3 cm, measured
at pedal operation.
– Turn the adjustment eccentric -3- until the buzzer contact -1-
is freed over the operating vane -2- and the buzzer sounds.
– Tighten the clamping screw for the adjustment eccentric.
– Check the gear activation timing again.
Target function: when operating the pedals the buzzer must
sound at a 2 - 3 mm pedal travel. After releasing the pedal the
buzzer must turn off.
Tightening Specifications
♦ Refer to
⇒ “4.25.1 Overview - Control Equipment Buzzer, Golf Sedan”,
page 95
4.27 CV Boots, Visually Inspecting
Perform the Following Procedure:
– Check the outer and inner CV boots -arrows- for leaks and
damage.
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
98 4. Procedure Descriptions
