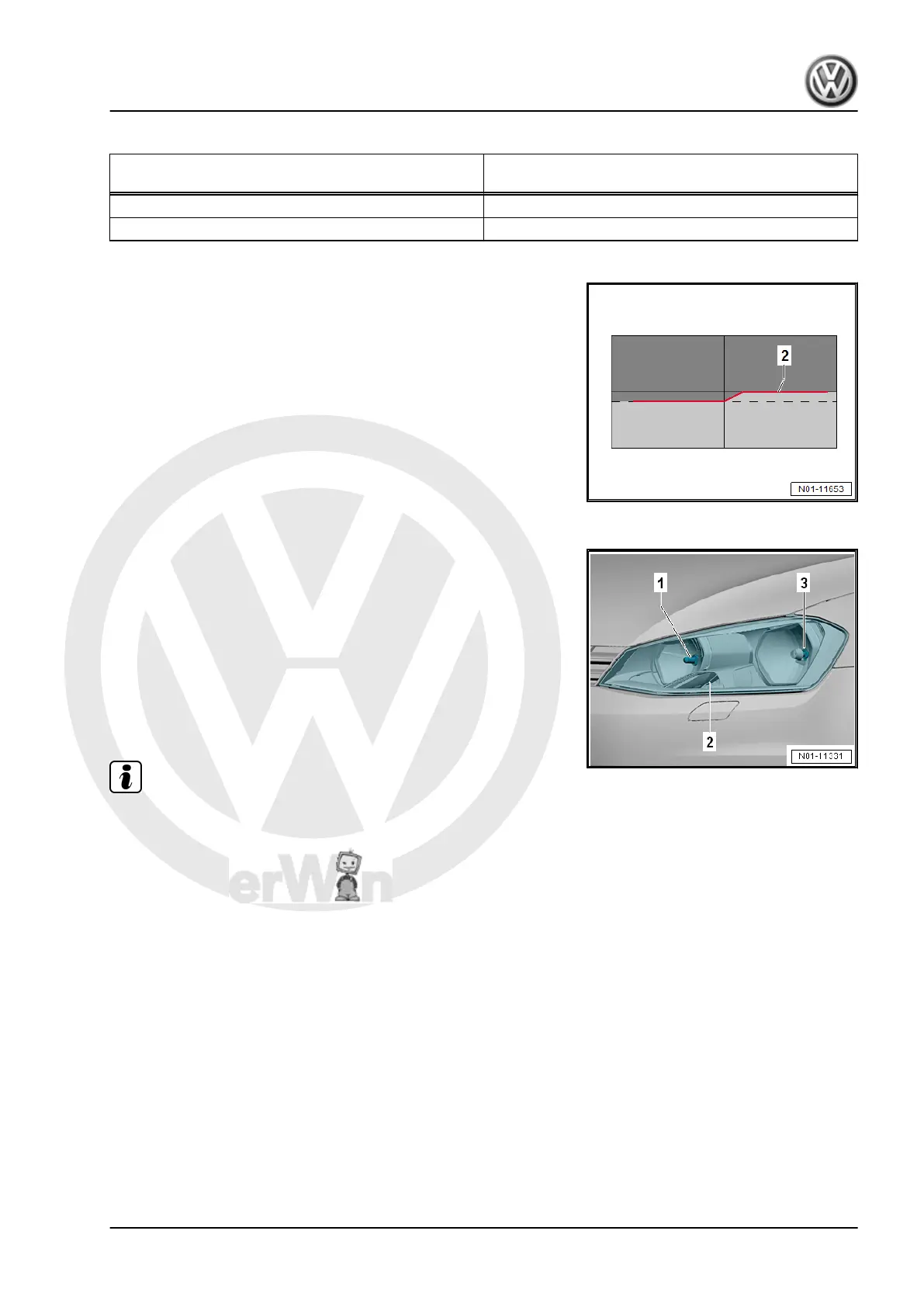

Angle Dimension for SAE VOR Halogen Headlamp
Fuel gauge
level
Angle dimension
0 to 1/2 0.2 %
1/2 to 1 0.0 %
VOR: visual optical aim right -2-
– Check if the right level cut-off line contacts the dividing line
-2- on the headlamp adjusting unit test surface.
4.56.3 Halogen Headlamps, Adjusting
Overview Halogen Headlamps Golf
1 - Left Daytime Running Lamp Bulb - L174- or Right Daytime
Running Lamp Bulb - L175- and Left High Beam Headlamp
Bulb - M30- or Right High Beam Headlamp Bulb - M32- or
Left Position Lamp Bulb - M1- , Right Position Lamp Bulb -
M3-
2 - Left Front Turn Signal Bulb - M5- or Right Front Turn Signal
Bulb - M7-
3 - Left Low Beam Headlamp Bulb - M29- and Right Low Beam
Headlamp Bulb - M31-
Note
Adjusting the headlamps is invoiced separately.
Left Headlamp, Adjusting:
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
4. Procedure Descriptions 159
