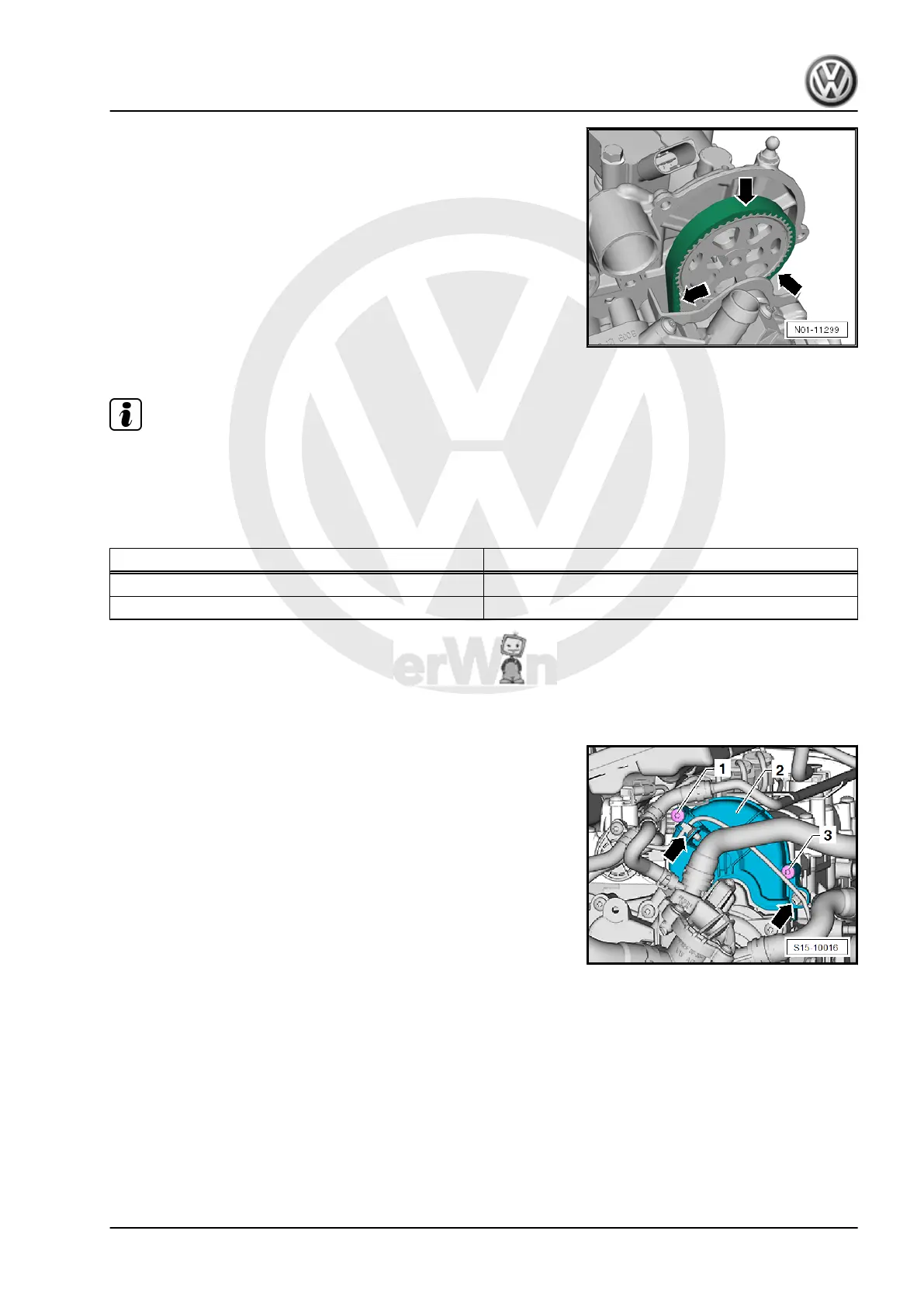

– Turn the crankshaft at the crankshaft belt pulley bolt in the
direction of engine rotation and then check the entire toothed
belt for the following conditions:
♦ Cranks, cross-sectional breaks, tears (on side of cover)
-arrow-
♦ Lateral movement
♦ Fraying of cords
♦ Tears (in tooth base) -arrow-
♦ Separation (toothed belt body, belt cords)
♦ Surface cracks (plastic shroud)
♦ Oil or grease contamination
Note
It is essential to replace toothed belt if malfunctions are found.
This will prevent any belt malfunctions. Replacing the toothed belt
is a repair procedure.
Assembly is done in the reverse order.
Tightening Specification Nm
Bolt for the toothed belt guard 8
Bolt for the crankcase ventilation 8
4.74.3 Toothed Belt Condition, Checking, 1.6L
SRE Engines
Procedure
– Free up the wiring harness -arrows-.
– Remove the bolts -1 and 3- and remove the toothed belt guard
-2- for the coolant pump toothed belt.
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
4. Procedure Descriptions 207
