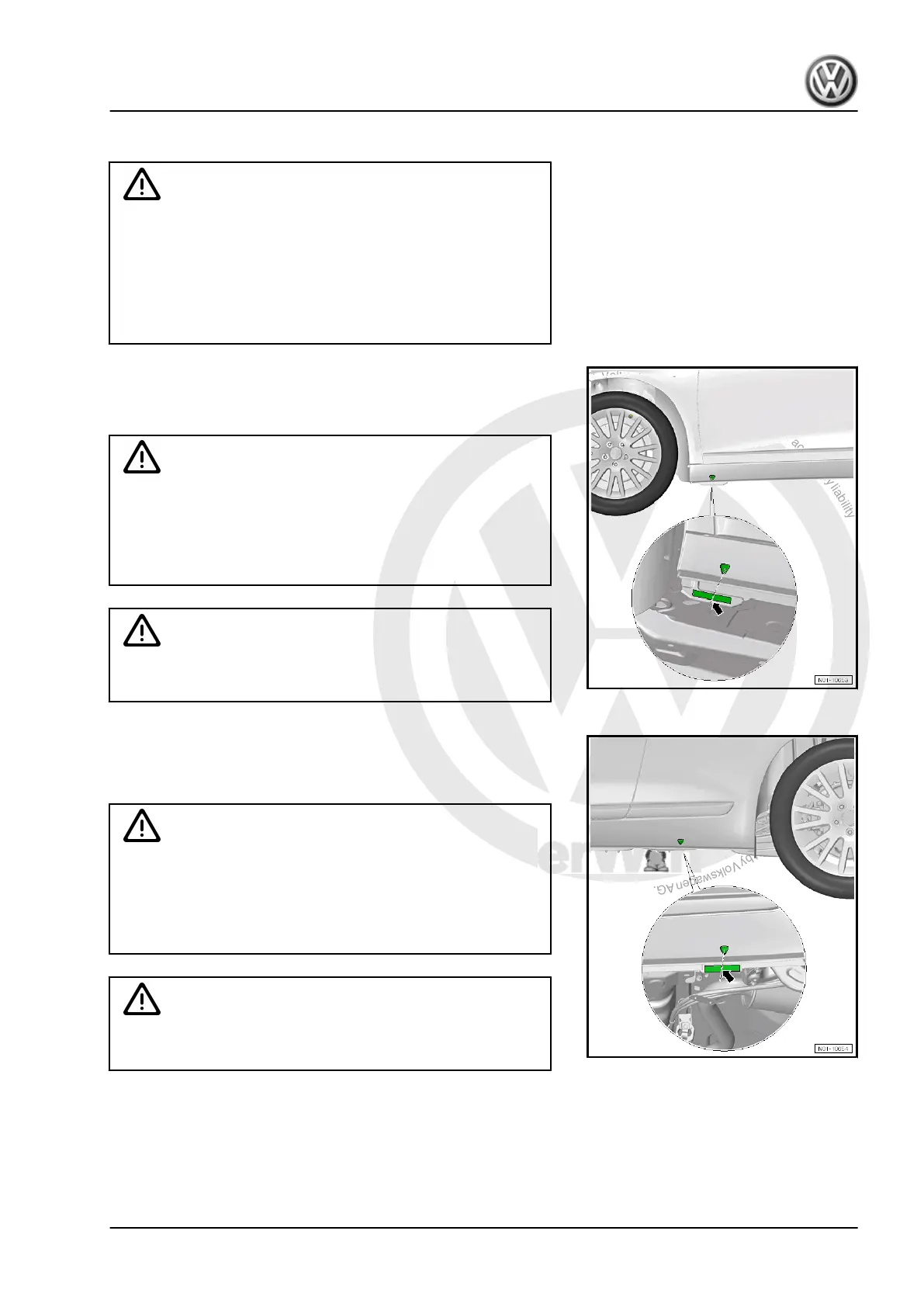

3.2.2 Hoist and Floor Jack Mounting Points
Caution
♦ Positioning the vehicle incorrectly or unevenly on the
mounting plate/arms on the hoist will cause damage to
vehicle panels.
♦ Turn the mounting plate on the hoist outward so that there
is enough space between the arm and the side sill. Only
use the side sill reinforcement as a mounting point for the
hoist mounting plate.
Front Mounting Point:
– Position the mounting plate near the side sill marking (on the
vertical floor panel reinforcement -arrow-).
WARNING
On “R models”, the side sill markings are covered by the rocker
panel extension. They are now located on the bottom of the
rocker panel extension.
Pay attention when lifting that the rocker panel extension is not
damaged.
WARNING
Make sure that the side sill reinforcement contacts the center
of the hoist mounting plate.
Rear Mounting Point:
– Position the mounting plate near the side sill marking on the
vertical floor panel reinforcement -arrow-.
WARNING
On “R models”, the side sill markings are covered by the rocker
panel extension. They are now located on the bottom of the
rocker panel extension.
Pay attention when lifting that the rocker panel extension is not
damaged.
WARNING
Make sure that the side sill reinforcement contacts the center
of the hoist mounting plate.
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
3. General Information 13
