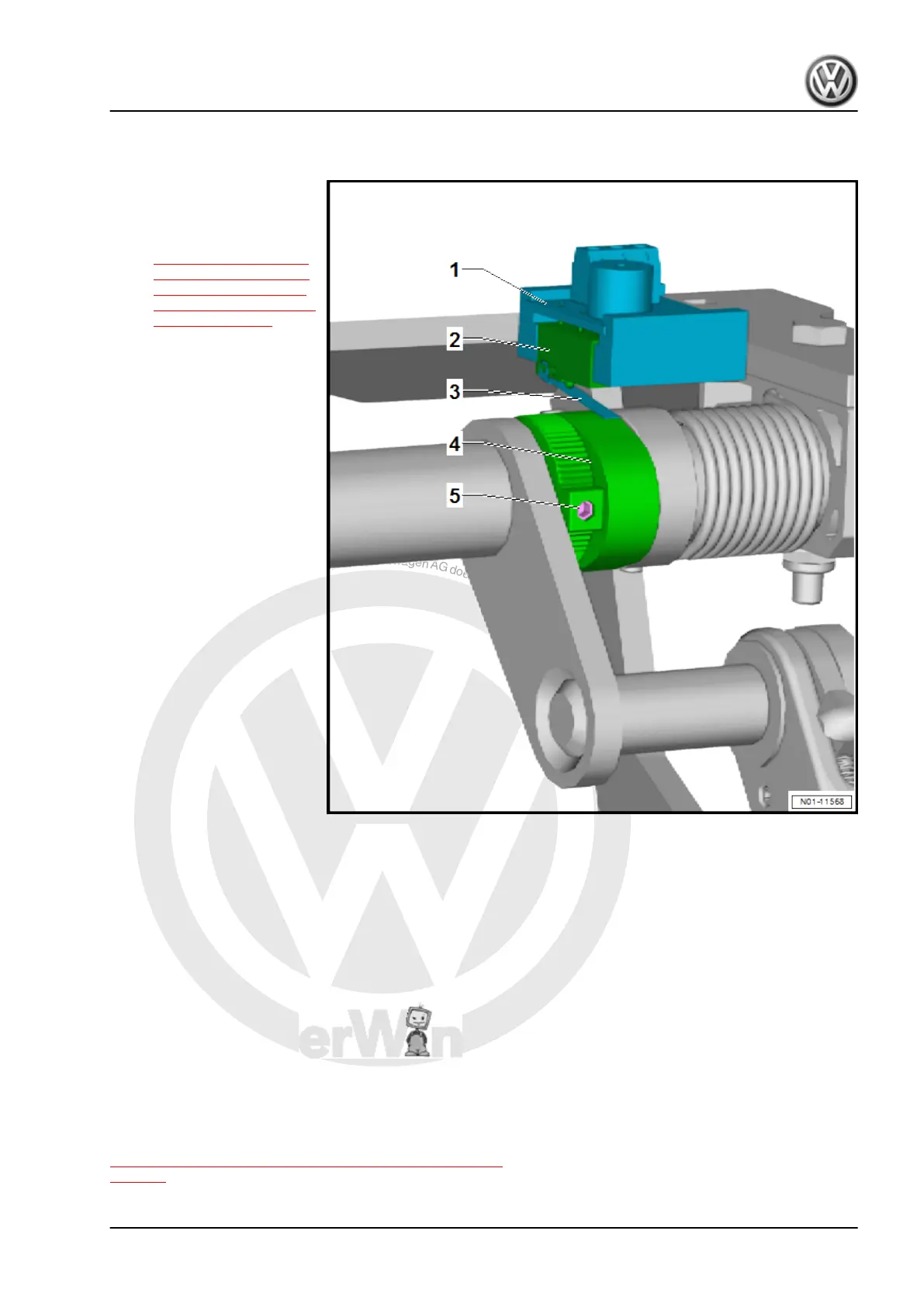

4.25.2 Overview - Control Equipment Buzzer, Golf Sportsvan
1 - Housing with Switch and
Buzzer for Control Equipment
❑ Control Equipment Buz‐
zer Adjusting
⇒ “4.26 Driving School
Pedals, Adjusting Acti‐
vation Timing for Con‐
trol Equipment Warning
Buzzer”, page 97 .
2 - Switch
3 - Vane for operating the
switch contacts
4 - Adjustment Eccentric/Lobe
5 - Clamping Screw on Adjust‐
ment Eccentric
❑ 0.5 Nm
4.26 Driving School Pedals, Adjusting Acti‐
vation Timing for Control Equipment
Warning Buzzer
General Information
This is performed at every service procedure.
Additional information in “Operating Dual Controls” this is located
with the vehicle. The Owner's Manual is part of the dual controls.
The Owner's Manual and the general type approval must always
be available in the vehicle.
The procedure for the service work is the same for manual trans‐
mission or automatic transmission vehicles.
For defects with the driving school pedals, please contact the
Volkswagen dealer center with replacement part requests.
Driving School Pedal Components, Greasing. Refer to
⇒ “4.23 Driving School Pedals, Lubricating Components”,
page 89 .
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
4. Procedure Descriptions 97
