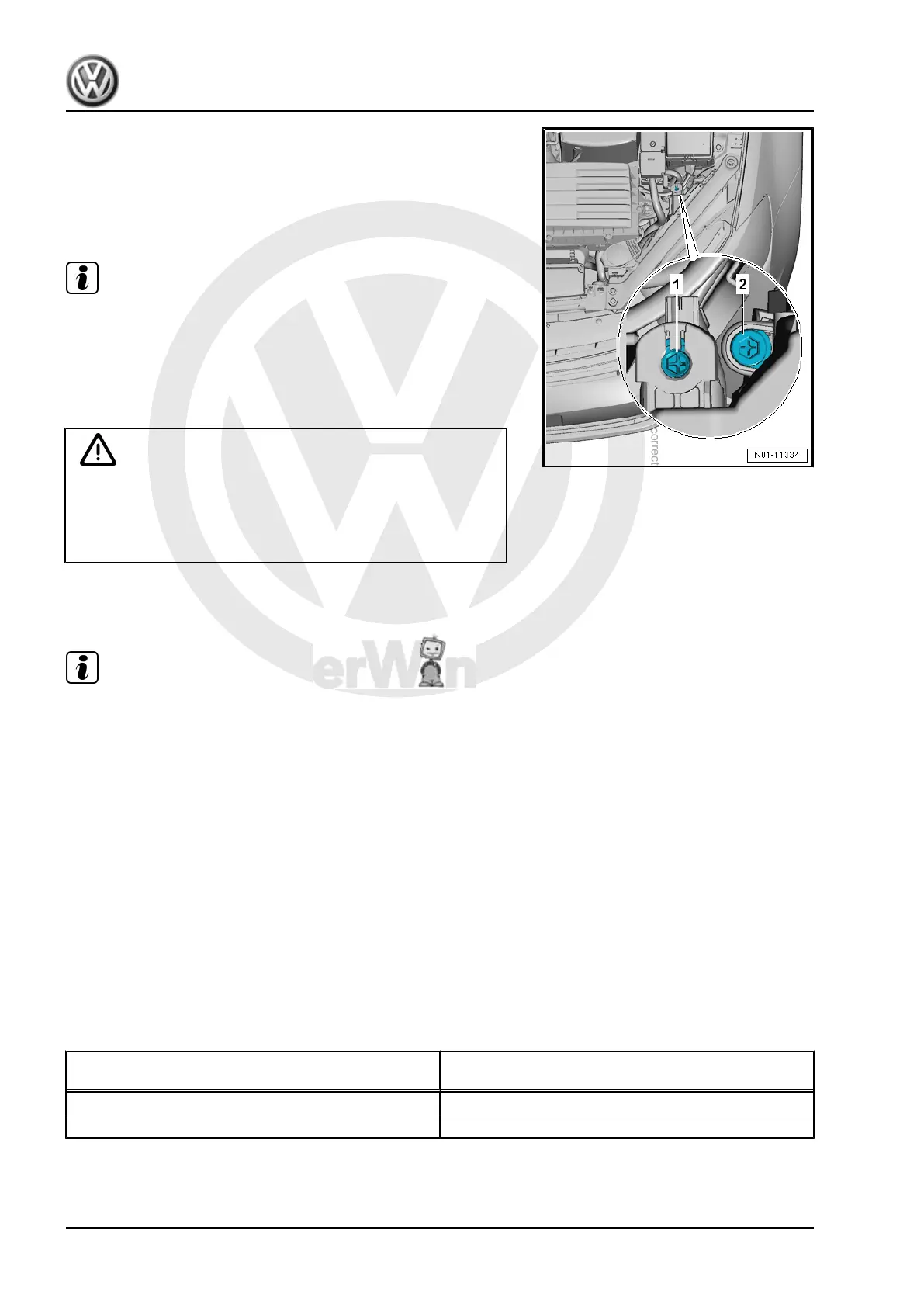

Left Headlamp, Adjusting:
1 - Lateral adjustment
2 - Height Adjustment
– Turn the adjusting screw for height adjustment -2- until the
correct setting is achieved.
Note
In some markets the adjusting screw for the side adjustment -1-
is sealed. Lateral adjustment is not permitted.
– Turn the adjustment screw for lateral adjustment -1- until the
correct setting is achieved.
Left Headlamp, Re-Checking:
Caution
Re-checking the headlamp is performed using the low beam
test diagram.
The headlamp cannot be adjusted laterally butting the check.
Adjusting the height is permissible.
– Check the headlamp adjustment.
– If necessary adjust the headlamp height adjustment.
Note
♦
Adjusting the right headlamp is identical and in the same se‐
quence.
♦
Adjustment screws for right headlamp are arranged symmet‐
rically.
4.58.4 Headlamp Adjustment, Checking (ECE)
Special tools and workshop equipment required
♦ Headlamp Adjusting Unit - VAS5046A-
♦ Headlamp Adjusting Unit - VAS5047A-
♦ Headlamp Adjuster - VAS5208A-
♦ Vehicle Diagnostic Tester
The adjustment of the angle dimension on headlamp adjusting
unit is based on the fuel tank fill level.
Angle dimension for ECE HID headlamp, LED headlamp and Dy‐
namic light assist headlamp
Fuel gauge
level
Angle dimension
0 to 1/2 1.0 %
1/2 to 1 1.0 %
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
170 4. Procedure Descriptions
