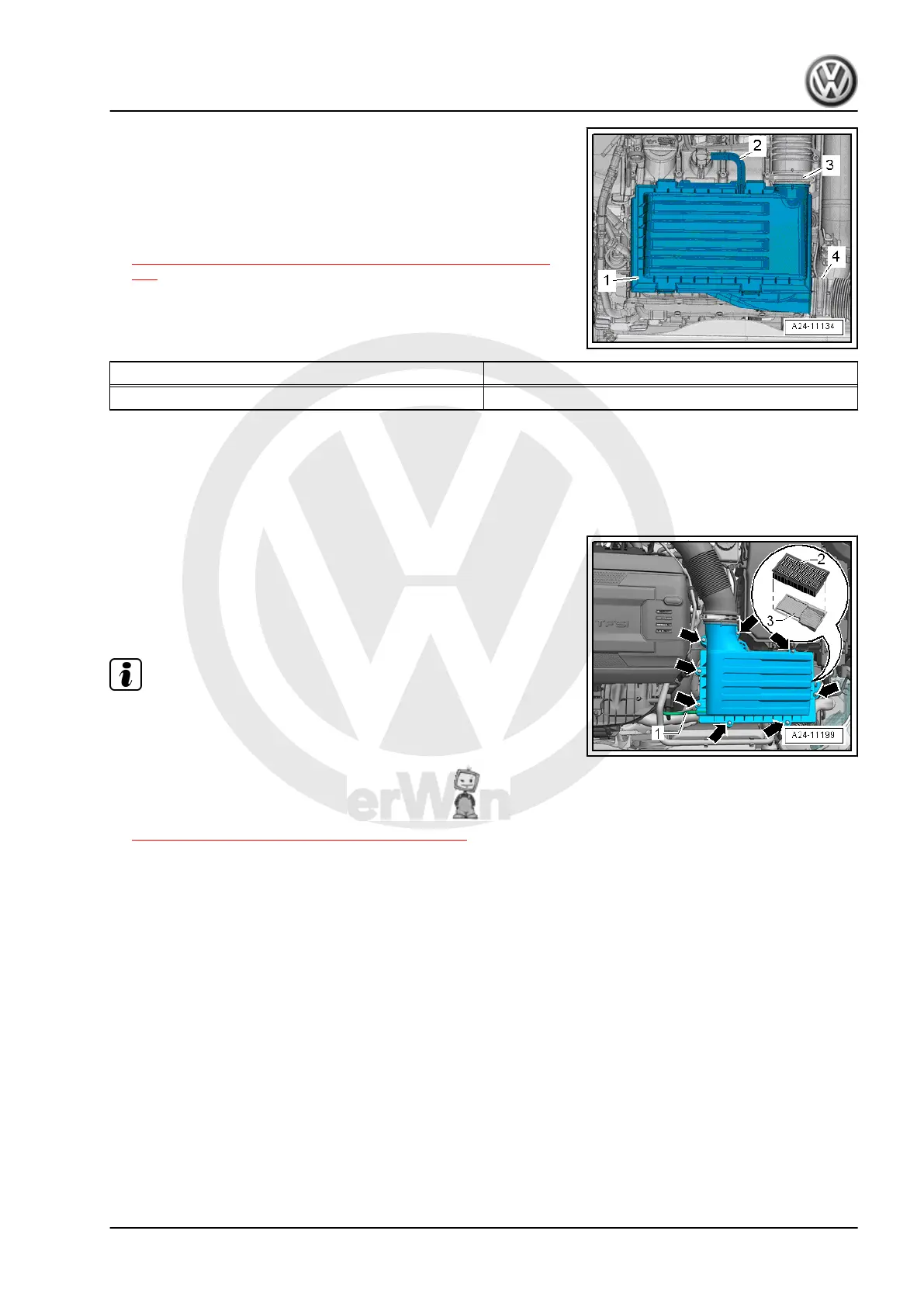

– Mount the air ducts on the air filter housing -1-.
– Install the hose clamps -3 and 4-.
– Press the air filter housing -1- centered on the ball pins.
– Attach the air guide hose -2- to the air filter upper section -1-.
– If necessary install the engine cover “upper”. Refer to
⇒ “4.43 Upper Engine Cover, Removing and Installing”, page
127 .
Tightening Specification Nm
Bolts 1.5
4.40.2 Air Filter Element, Removing and Instal‐
ling, 2.0L TSI Engine
Removing
– Remove the vacuum hose -1- from the air filter upper section.
– Remove the screws -arrows- from the air filter upper section
and then lift the air filter upper section with the entire air guide
to the side.
– Remove the air filter element -2- and the snow screen -3-.
Note
Not all vehicles have a snow screen.
Installing
– Check the housing, mass airflow sensor and water drains.
Make sure they are not dirty or blocked. Refer to
⇒ “4.40.4 Air Filter Housing, Cleaning”, page 122 .
– Insert the snow screen -13- into the air filter lower section
-14-.
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
4. Procedure Descriptions 119
