• Reflectors and bulbs OK
• Move vehicle back and forth for a few meters or bounce the
front and rear of vehicle several times up and down to settle
the springs.
• The vehicle and the headlamp adjusting unit must be on level
ground.
• Vehicle and headlamp adjusting unit must be aligned.
• Angle dimension must be set.
• Pay attention to the Headlamp Adjusting Unit Owner's Manual.
4.56.2 Headlamp Adjustment, Checking (SAE)
Special tools and workshop equipment required
♦ Headlamp Adjusting Unit - VAS5046A-
♦ Headlamp Adjusting Unit - VAS5047A-
♦ Headlamp Adjuster - VAS5208A-
Note
♦
The designation VOL/VOR is visible on the headlamp from the
exterior.
♦
The sideways adjustment is sealed on SAE headlamps.
♦
For certain markets, no manual headlamp range control is of‐
fered with halogen headlamps.
– Check the headlamp height adjustment by setting to the max‐
imum level and observing the light.
– Then set the thumbwheel for the headlamp range control to
the 0 position, if equipped.
The adjustment of the angle dimension on headlamp adjusting
unit is based on the fuel tank fill level.
Angle Dimension for SAE VOL Halogen Headlamp
Fuel gauge
level
Angle dimension
0 to 1/2 0.9 %
1/2 to 1 0.7 %

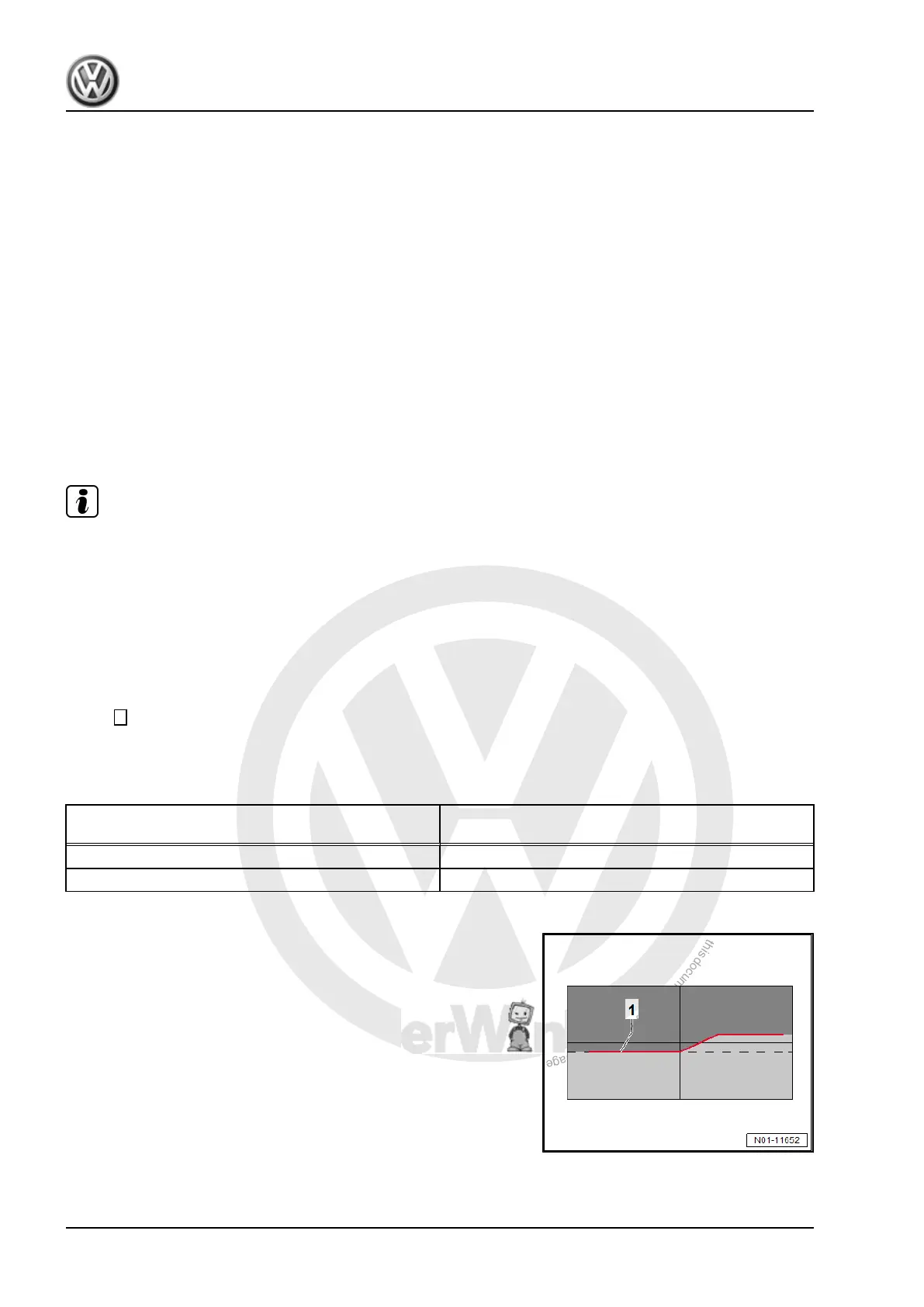

VOL: visual optical aim left -1-
– Check if the left level cut-off line contacts the dividing line -1-
on the headlamp adjusting unit test surface.
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
158 4. Procedure Descriptions
