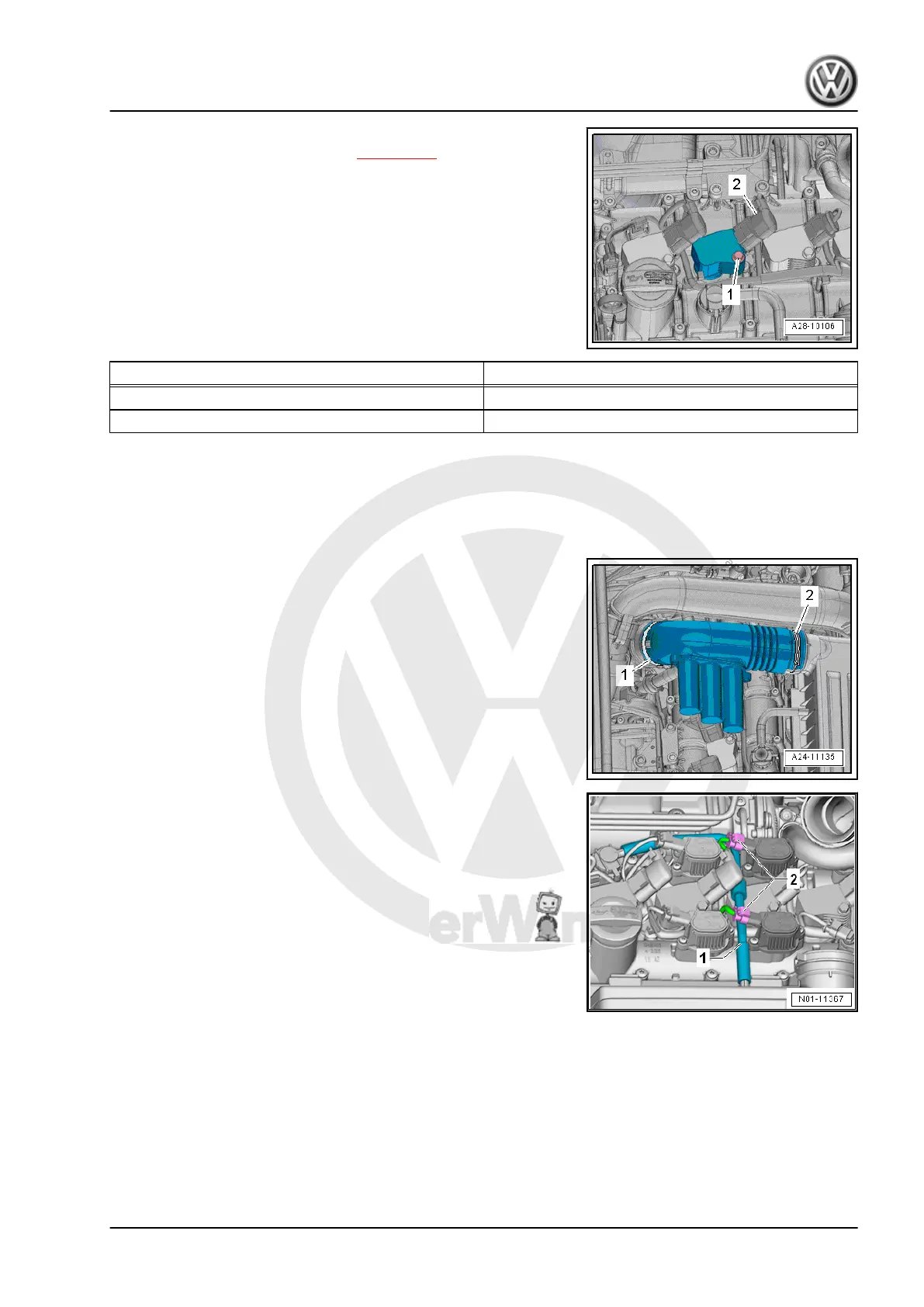

– Tighten the ignition coil with power output stage bolt -1- to the
tightening specification. Refer to ⇒ page 211 .
– Connect the connector -2-.
Repeat the procedure for all ignition coils with power output stage.
– Install the air filter housing. Refer to ⇒ Engine Mechanical,
Fuel Injection and Ignition; Rep. Gr. 24 ; Air Filter; Air Filter
Housing, Removing and Installing .
Tightening Specification Nm
Spark plugs in cylinder head 22
Ignition coil with power output stage bolts. 8
4.75.5 Spark Plugs, Replacing, 1.4L TSI En‐
gine, Engine Codes CPTA and CZEA
Removing
– Loosen the hose clamps -1- and -2- and remove the air duct
pipe.
– Disconnect the connector -2- and remove the air guide hose
-1-.
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
4. Procedure Descriptions 217
