Angle dimension for ECE HID headlamp, LED headlamp and Dy‐
namic light assist headlamp
Fuel gauge
level
Angle dimension
0 to 1/2 1.0 %
1/2 to 1 1.0 %

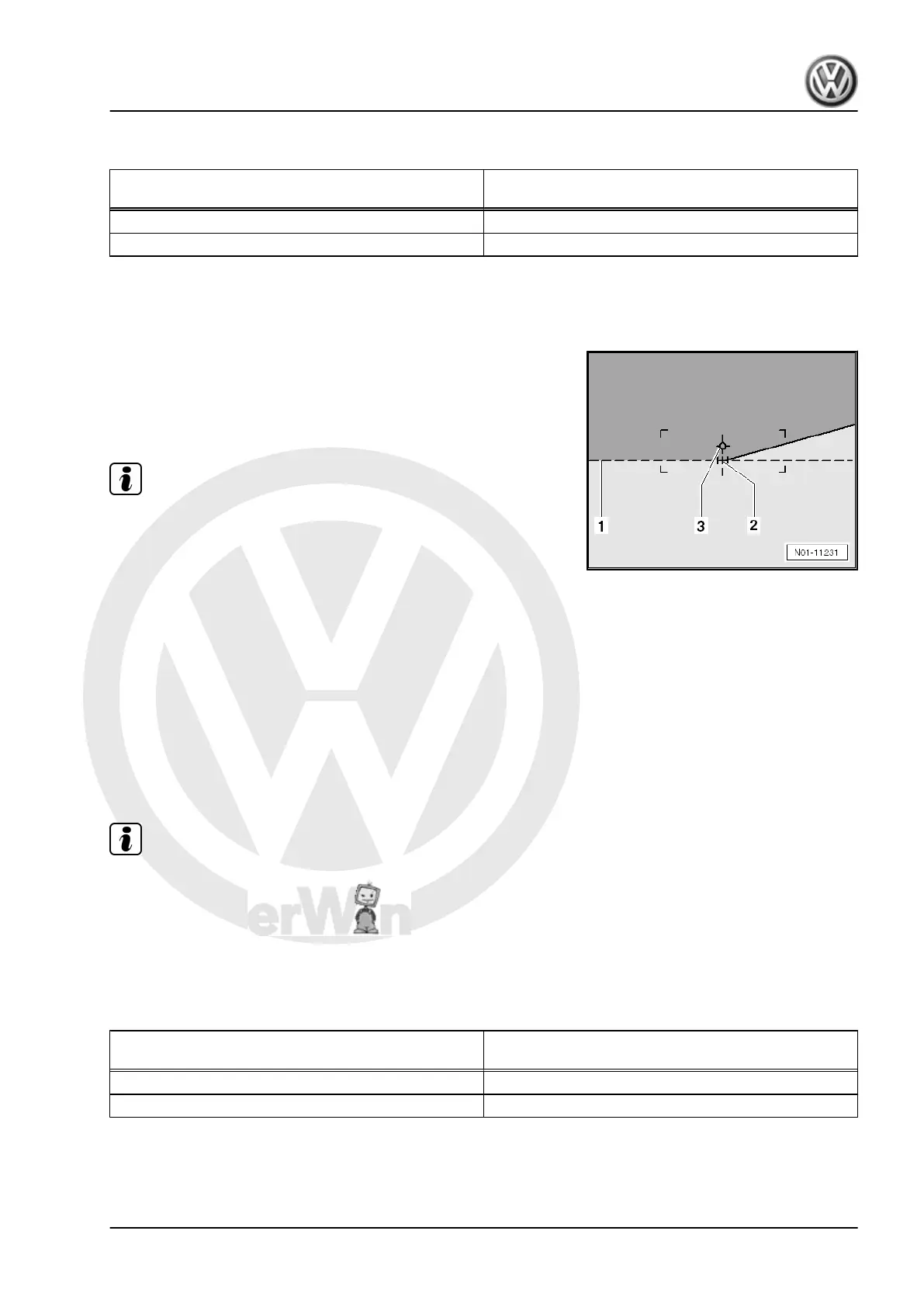

Test Diagram for Low Beam
Check the following:
– The lowest part of the horizontal cut-off line must touch the test
surface dividing line -1- when the low beams are on.
– The bend point -2- between the left horizontal part and the part
of the cut-off line rising to the right should run vertically through
central point.
Note
♦
To make it easier to determine the bend point -2-, cover and
uncover the left half of headlamp (as seen in driving direction),
alternating a few times. Then check the low beam again.
♦
After adjusting the low beam according to the instructions, the
center of the high beam light beam must lie on the center mark
-3-.
4.59.3 Headlamp Adjustment, Checking (SAE)
Special tools and workshop equipment required
♦ Headlamp Adjusting Unit - VAS5046A-
♦ Headlamp Adjusting Unit - VAS5047A-
♦ Headlamp Adjuster - VAS5208A-
♦ Vehicle Diagnostic Tester
Note
♦
The designation VOL/VOR is visible on the headlamp from the
exterior.
♦
The sideways adjustment is sealed on SAE headlamps.
The adjustment of the angle dimension on headlamp adjusting
unit is based on the fuel tank fill level.
Angle Dimension for SAE VOL HID Headlamp, LED Headlamp
and Dynamic Light Assist Headlamp
Fuel gauge
level
Angle dimension
0 to 1/2 0.7 %
1/2 to 1 0.7 %
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
4. Procedure Descriptions 173
To Next Page
