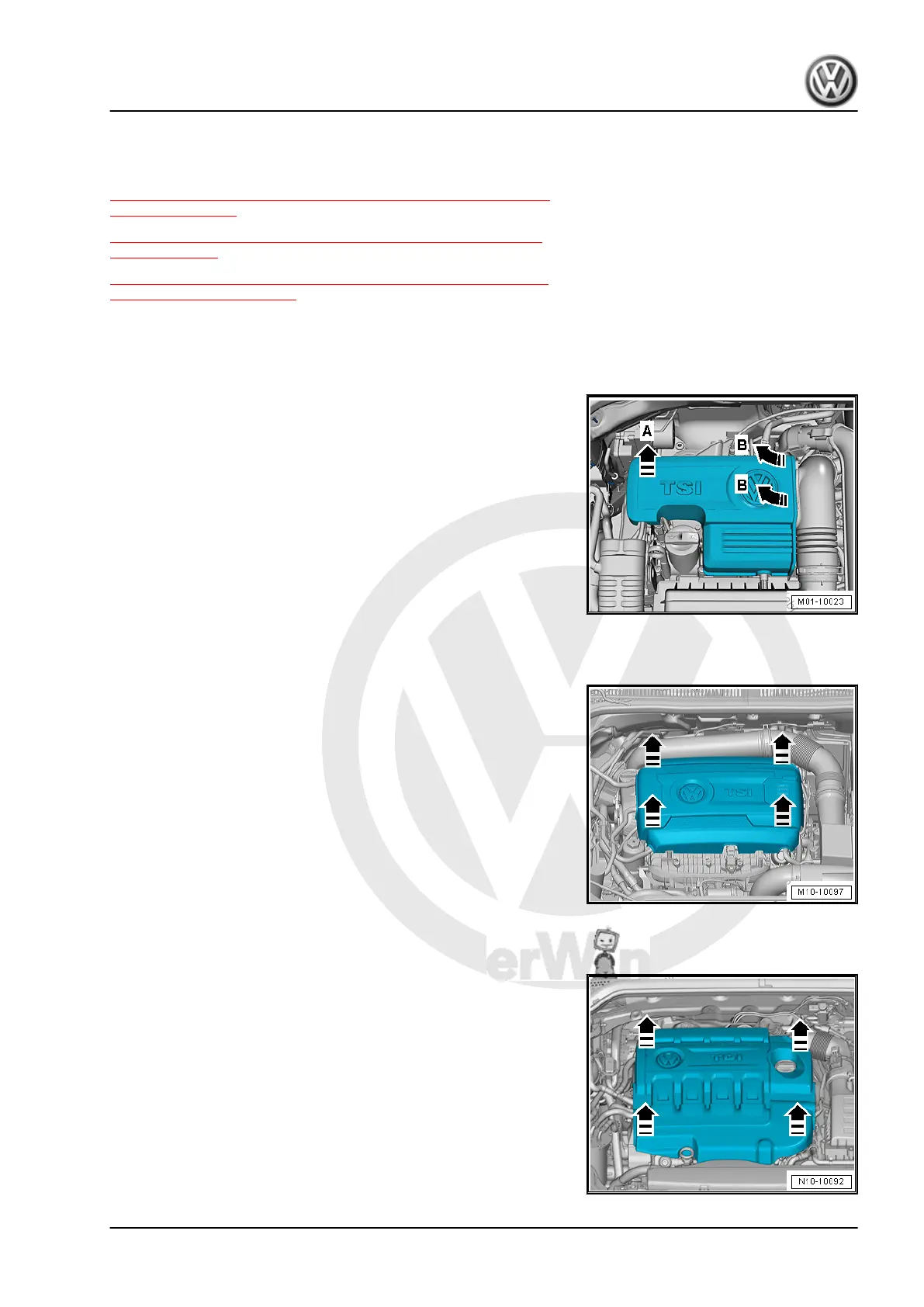

4.43 “Upper” Engine Cover, Removing and
Installing
⇒ “4.43.1 Engine Cover, Removing and Installing, 1.4L TSI Hybrid
Engine”, page 127 .
⇒ “4.43.2 Engine Cover, Removing and Installing, 2.0L TSI En‐
gine”, page 127
⇒ “4.43.3 Engine Cover, Removing and Installing, Common Rail
Diesel Engines ”, page 127 .
4.43.1 Engine Cover, Removing and Installing,
1.4L TSI Hybrid Engine
Removing
– First remove the engine cover carefully in the direction of the
arrow -A- from the retaining pin.
– Then remove the engine cover in the direction of the arrow
-B- from the guide.
Installing
– To avoid damage, do not hit the engine cover with fist or a tool.
– Be careful when attaching the engine cover onto the oil filler
tube.
4.43.2 Engine Cover, Removing and Installing,
2.0L TSI Engine
Removing
– Carefully pull the engine cover off of the retaining pins
-arrows- one after the other. Do not pull on the engine cover
abruptly to remove it or pull on one side.
Installing
– To avoid damage, do not hit the engine cover with fist or a tool.
– Position the engine cover and at the same time pay attention
to the oil filler tube and oil dipstick.
– Press the engine cover first in the rubber grommets on the left
side and then in the rubber grommets on the right side.
4.43.3 Engine Cover, Removing and Installing,
Common Rail Diesel Engines
Removing
– Carefully pull the engine cover off of the retaining pins
-arrows- one after the other. Do not pull on the engine cover
abruptly to remove it or pull on one side.
Installing
– To avoid damage, do not hit the engine cover with fist or a tool.
– Position the engine cover and at the same time pay attention
to the oil filler tube and oil dipstick.
– Press the engine cover first in the rubber grommets on the left
side and then in the rubber grommets on the right side.
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
4. Procedure Descriptions 127
