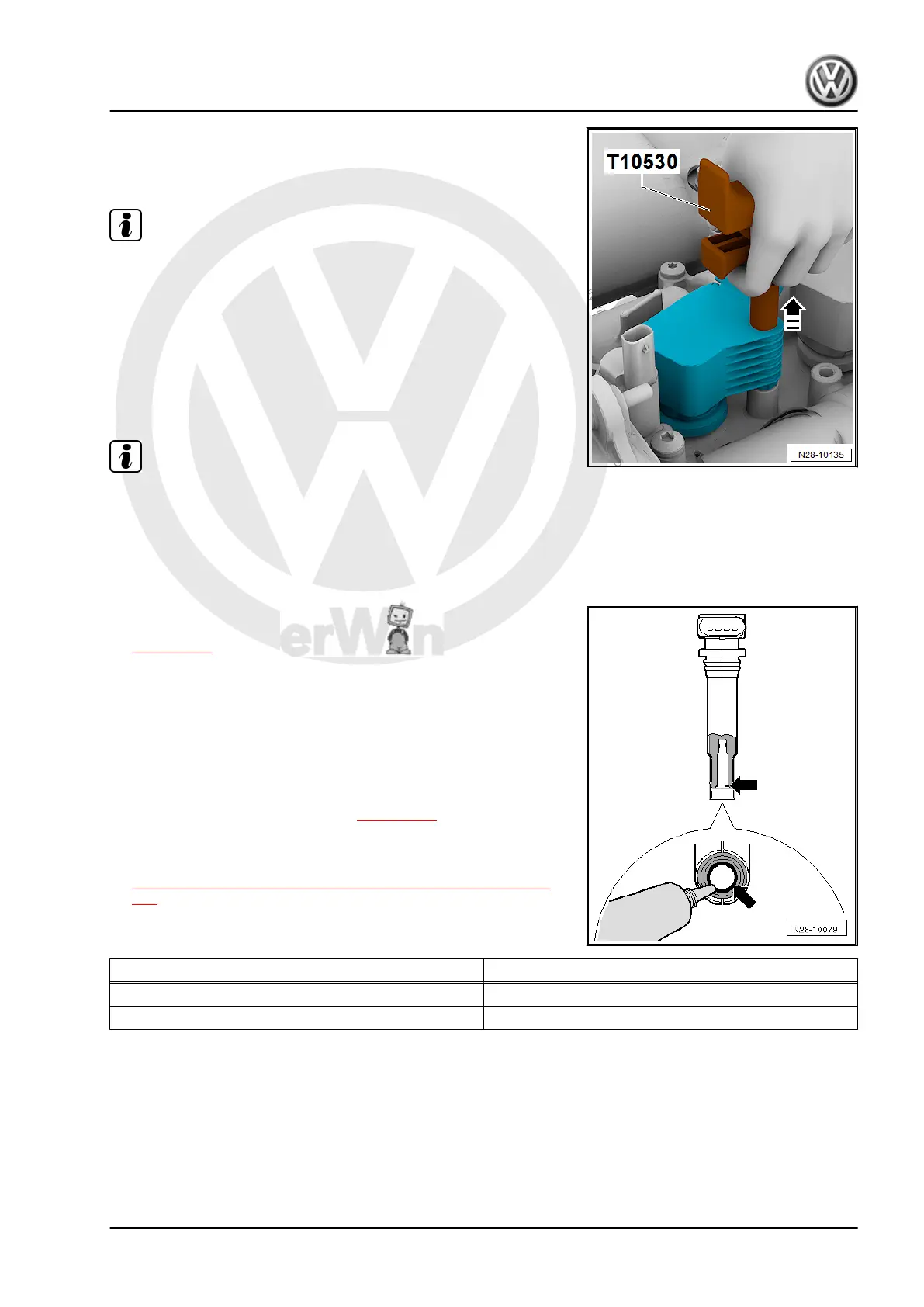

– Pull the ignition coil on the Puller - T10530- in the direction of
the -arrow- out of the cylinder head cover.
Repeat the procedure for all ignition coils with power output stage.
Note
♦
Note the installed position of ignition coils with power output
stages.
♦
Make sure to not kink or damage the lines.
– Remove spark plugs using Spark Plug Removal Tool -
3122B- .
Installing
Note
♦
Lubricate the ignition coils with power output stage with Sili‐
cone Grease whenever installing new spark plugs. Refer to
the Parts Catalog.
♦
The correct silicone paste is shown on the Parts Catalog with
the ignition coils and/or the spark plugs.
– Install the new spark plugs using the Spark Plug Removal Tool
- VAS3122B- and tighten to the specification. Refer to
⇒ page 213 .
– Apply a thin bead of Silicone Grease all around the sealing
hose on the ignition coil with power output stage -arrow-.
– Align all ignition coils with the power output stage one after the
other and insert them loosely into the spark plug shaft.
– Press the ignition coil with power output stage evenly by hand
onto spark plugs (do not use a hammer).
– Tighten the ignition coil with power output stage bolts to the
tightening specification. Refer to ⇒ page 213 .
– Connect the connector at the same time.
– Install the engine cover. Refer to
⇒ “4.43 Upper Engine Cover, Removing and Installing”, page
127 .
Tightening Specification Nm
Spark plugs in cylinder head 30
Ignition coil with power output stage bolts. 10
4.75.3 Spark Plugs, Replacing, 1.0L TSI En‐
gine
Removing
– Remove the air filter housing. Refer to ⇒ Engine Mechanical;
Rep. Gr. 24 ; Air Filter; Air Filter Housing, Removing and In‐
stalling .
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
4. Procedure Descriptions 213
