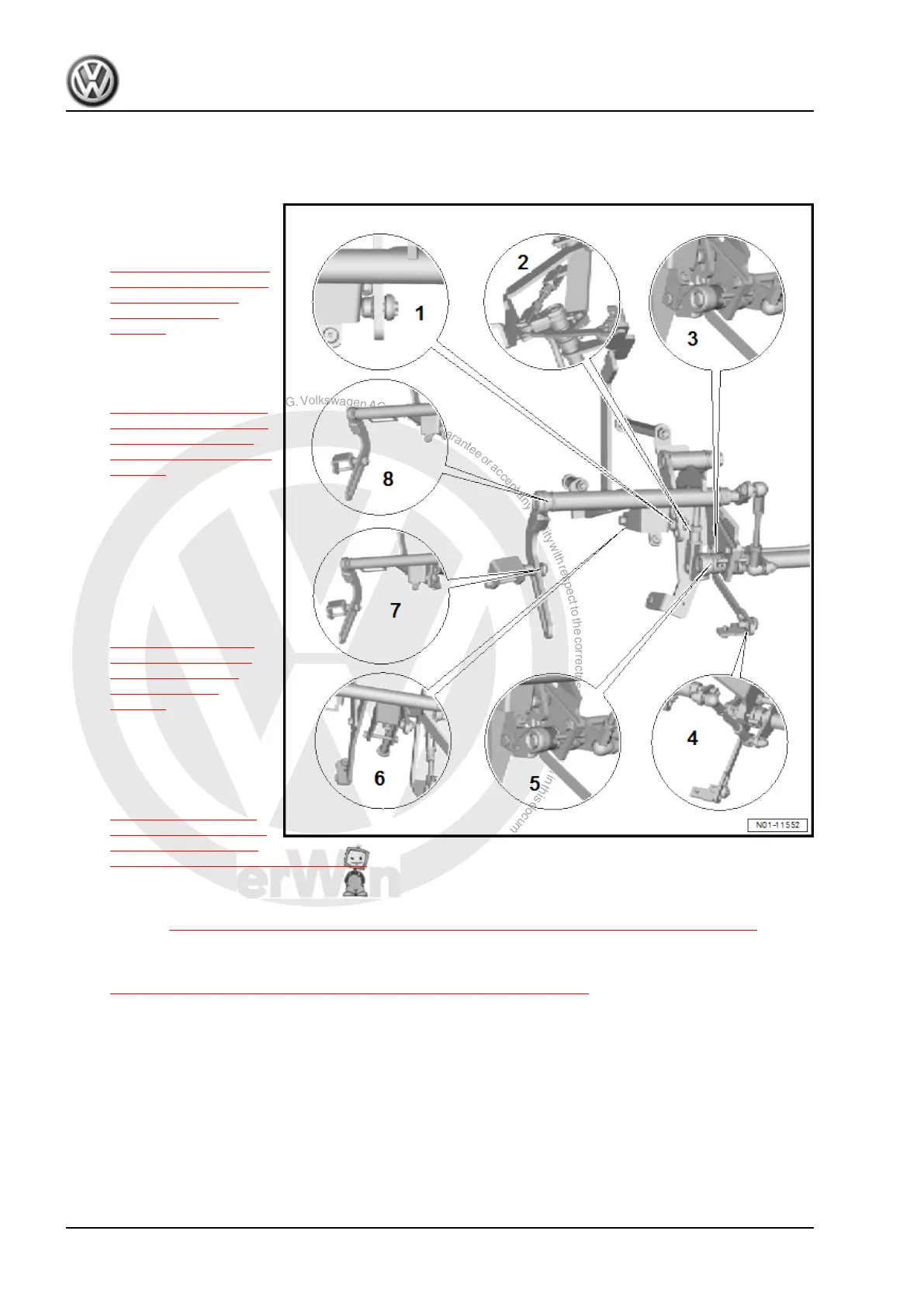

4.22.3 Overview - Driving School Pedals, Driver Side, Manual Transmission, Golf
Sportsvan
1 - Brake Carrier Slot Lever
❑ Brake Carrier Slot Lever
Greasing. Refer to
⇒ “4.23.2 Brake Carrier
Slot Lever, Lubricating,
Driver Side Driving
School Pedals”,
page 89
2 - Brake Carrier Push Rod
❑ Grease the Brake Carri‐
er Push Rod. Refer to
⇒ “4.23.4 Brake Trans‐
fer Push Rod Joint, Lu‐
bricating, Driver Side
Driving School Pedals”,
page 90
3 - Shaft for the Brake and
Clutch Pedal Carrier in the
Mounting Bracket, Right Bear‐
ing Area
❑ Shaft for the Brake and
Clutch Pedal Carrier in
the Mounting Bracket,
Greasing the Right
Bearing Area. Refer to
⇒ “4.23.5 Right Shaft
Bearing, Lubricating,
Driver Side Driving
School Pedals”,
page 91
4 - Accelerator Pedal Carrier
Slot Lever
❑ Accelerator Pedal Carri‐
er Slot Lever, Greasing.
Refer to
⇒ “4.23.3 Accelerator
Pedal Carrier Slot Lev‐
er, Lubricating, Driver
Side Driving School Pedals”, page 90
5 - Shaft for the Brake and Clutch Pedal Carrier in the Mounting Bracket, Left Bearing Area
❑ Shaft for the Brake and Clutch Pedal Carrier in the Mounting Bracket, Greasing the Left Bearing Area.
Refer to ⇒ “4.23.6 Left Shaft Bearing, Lubricating, Driver Side Driving School Pedals”, page 91
6 - Mounting Bracket for Brake Pedal Carrier
❑ Threaded Connection, Checking For Secure Fit. Refer to
⇒ “4.24 Driving School Pedals, Checking for Secure Bolt Fit”, page 93
❑ 10 Nm
7 - Clutch Pedal Carrier
❑ Not for North American market.
8 - Clutch Pedal Carrier Shaft Bearing
❑ Not for North American market.
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
86 4. Procedure Descriptions
