1.4 Control Panel
38
1.4 Control Panel

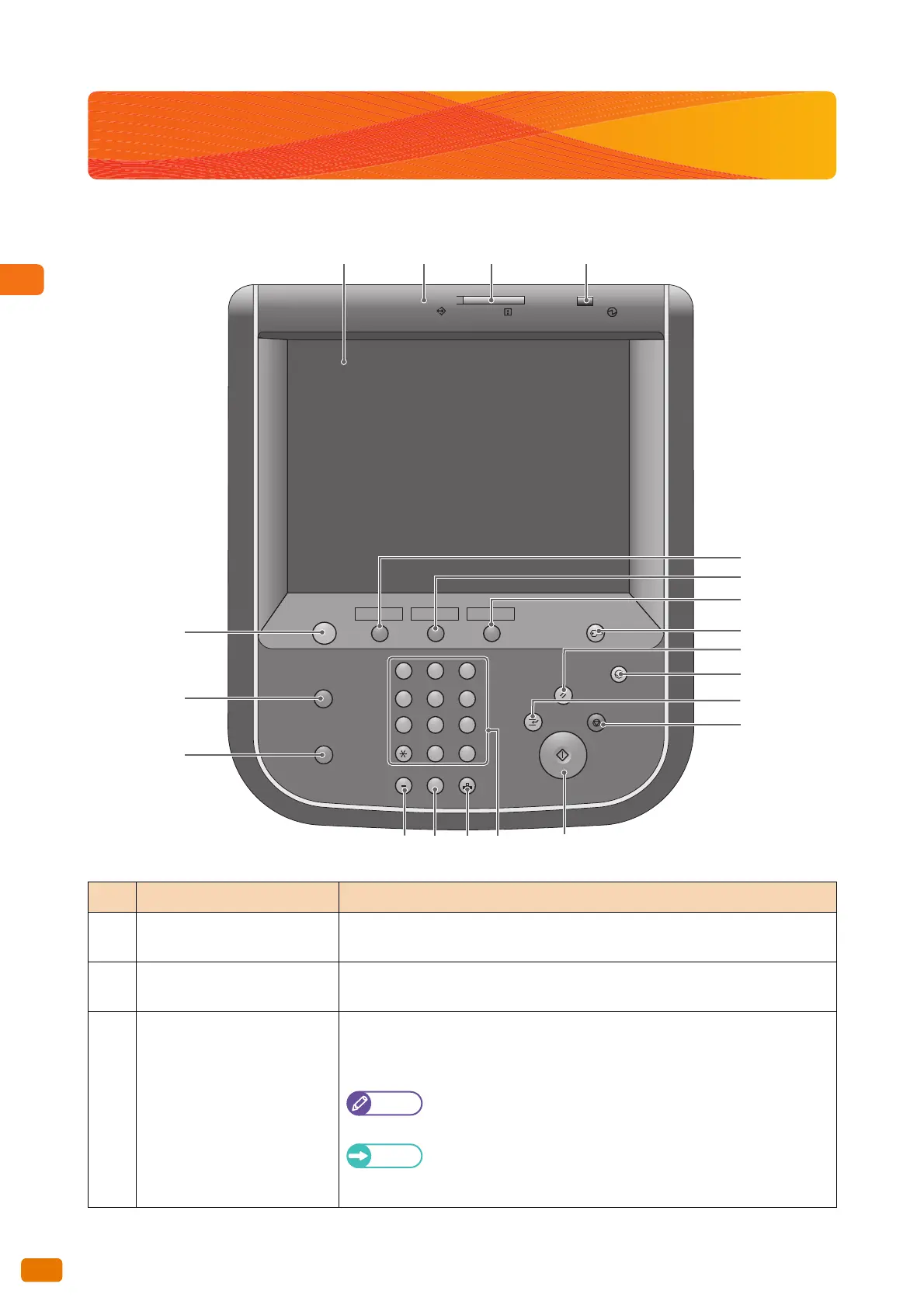

The following describes the names and functions of components on the control panel.
No. Component Function
1
Touch screen Displays messages and buttons required for the operation of various features. You
can access the machine features by directly touching the touch screen.
2
<Data> indicator Blinks when the machine is sending or receiving data to or from a client. This
indicator lights up when data is stored in the machine's memory,
3
<Error> indicator Blinks if a system error occurs.
This indicator lights up when a problem other than a system error occurs with the
machine, including paper jams and running out of paper.
If the <Error> indicator blinks, consult the error message displayed
on the touch screen for actions to be taken.
For information on corrective actions to be taken when a paper
jam or running out of paper occurs, refer to "Problem Solving" (p.
245).
