Xerox WorkCentre 5230A User Manual

6Setups
122
Standard Size Threshold Value
Specifies the size threshold for which custom sized documents are converted to
standard sized documents.
Internet Fax to Internet Fax
Specifies whether to allow documents received through the Internet Fax service to be
automatically retransmitted through the Internet Fax service.
Internet Fax to E-mail
Specifies whether to allow documents received through the Internet Fax service to be
automatically retransmitted as e-mail.

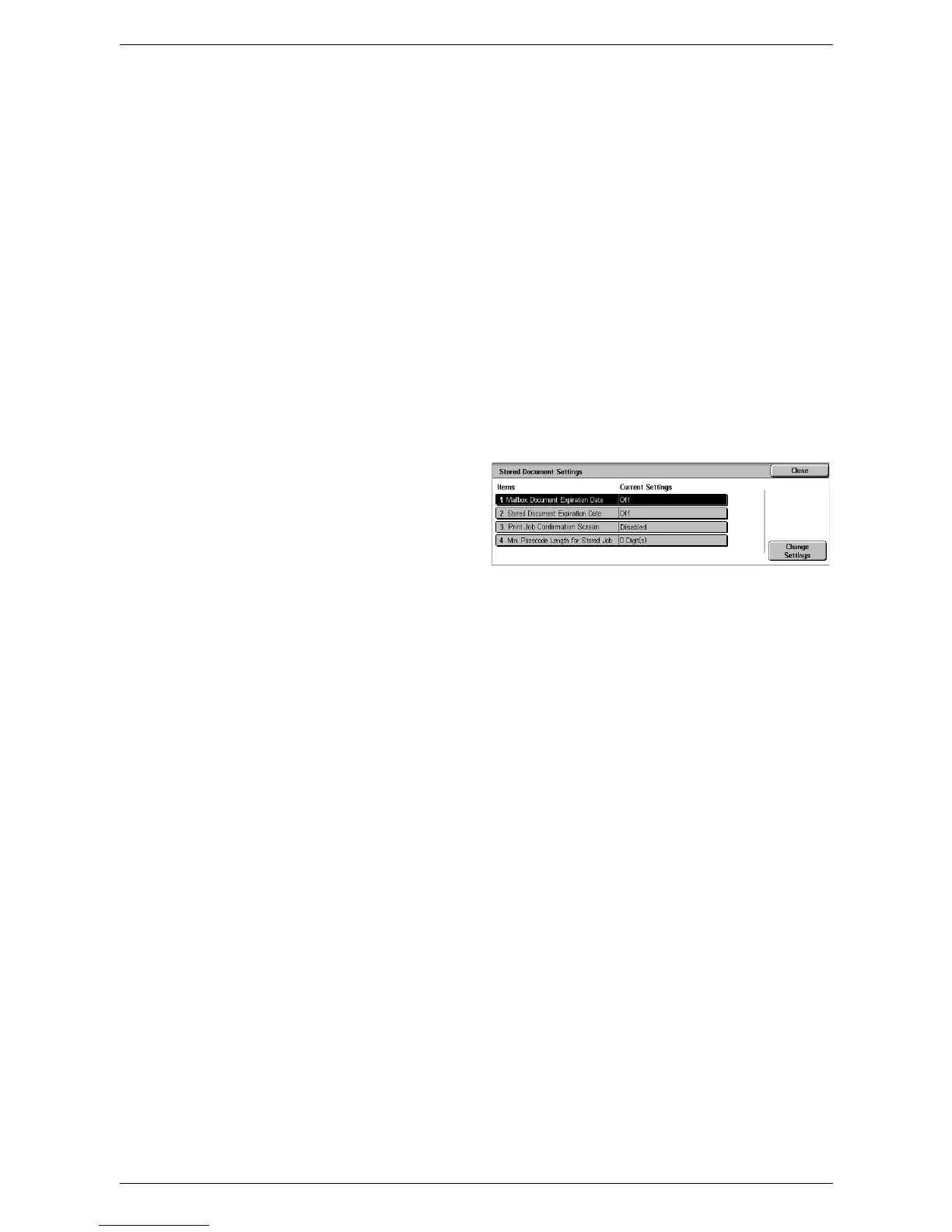

Stored Document Settings
This feature allows you to select whether documents stored in a mailbox are
automatically deleted. You can set how long documents are kept and what time they
are deleted.
You can also select whether individual documents are deleted or not.
1. Select [Stored Document
Settings] in the [Features]
menu.
2. Change the required settings.
3. Select [Close].
Mailbox Document Expiration Date
Specifies whether to delete documents from mailboxes when the specified period of
time elapses. Enter the number of days to store documents in the range from 1 to 14
days, and enter the time documents are to be deleted using the scroll buttons or the
numeric keypad.
Stored Document Expiration Date
Specifies the retention period for stored documents. Selecting [On] allows you to
specify a retention period in the range of 1 to 23 hours, in 1 hour increments.
NOTE: If the machine is turned off before the specified period of time elapses, the
stored document will be deleted when the machine is turned back on.
Print Job Confirmation Screen
Specifies whether to display a print confirmation screen on the control panel before the
machine prints a print job. Selecting [Enabled] displays a confirmation screen, and
allows you to change the number of print sets on the screen. Selecting [Disabled] does
not display a confirmation screen, and prints one print set only.
Min. Passcode Length for Stored Job
Set the minimum number of digits allowed for a passcode between 0 and 12 digits. A
passcode is required when Secure Print or Private Charge Print documents are to be
stored or printed. A passcode must have digits equal to or longer than the value
specified here.

Xerox WorkCentre 5230A Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	4.3 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Power supply type	AC
Dimensions (WxDxH)	640 x 652 x 1113 mm
Power requirements	220 – 240V, 50/60 Hz
Printer management	SNMPv1, SNMPv2c, SMTPv3, TCP/IP, IP
Networking features	Fast Ethernet
All-in-one functions	Copy, Scan
Standard media sizes	89 x 98.4mm - 297 x 420mm
Maximum internal memory	0.768 GB
Color all-in-one functions	scan, n
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7 Mac OS X 10.3 – 10.5 AIX 5Iv5.3 HP UX 11.0, 11i v2 Solaris 8/9/10 Linux Fedora Core 1/5 RedHat Enterprise Linux 4 SUSE x10
Dimensions (W x D x H) (imperial)	25.2 x 25.7 x 43.8 \
Acoustic power emissions (active, print, copy or scan)	72/38 dB
Scanner type	Flatbed scanner
Input color depth	24 bit
Maximum scan area	297 x 432 mm
Image formats supported	JPG, TIF
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	30 cpm
Total input capacity	1100 sheets
Total output capacity	500 sheets
Maximum input capacity	5100 sheets
Auto document feeder (ADF) input capacity	75 sheets
Internal memory	512 MB
Processor family	PowerPC
Internal storage capacity	40 GB
Sound pressure level (printing)	22 dB
Display	-
Market positioning	Business
Envelopes sizes	C5, DL
Maximum print size	297 x 420 mm
Media weight (tray 1)	60 to 105 g/sm2
Paper tray media types	Bond paper, Plain paper, Pre-Printed, Recycled paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 215 g/m²
Supported network protocols (IPv4)	TCP/IP, IPv6HTTP/HTTPS, LPR/LPD
Standard interfaces	USB 2.0
Power consumption (standby)	95 W
Power consumption (average operating)	615 W
Sustainability certificates	ENERGY STAR
Maximum duty cycle	100000 pages per month
Recommended duty cycle	12000 pages per month
Operating temperature (T-T)	10 - 28 °C
Operating relative humidity (H-H)	15 - 85 %
