System Settings
89
Pseudo-Photo Gradation Mode
Specifies whether to perform gradation level correction for documents containing
photographs. Select from [Error Diffusion] and [Dither].
Original Type - See-Through Paper
Specifies whether to display the [Text on See-Through Paper] option when [Text] is
selected on the [Original Type] screen.
Annotations - Edit Comment 1 to 8
Specifies whether to allow users to edit Comment 1 to Comment 8 in the Annotation
settings.
Bates Stamp - Edit Prefix 1 to 8
Specifies whether to allow users to edit Prefix 1 to Prefix 8 in the Annotation settings.
Maximum Number of Sets
Allows you to specify the maximum number of allowed copy sets between 1 and 999.
Users will not be able to specify the number of copy sets larger than the value set here.

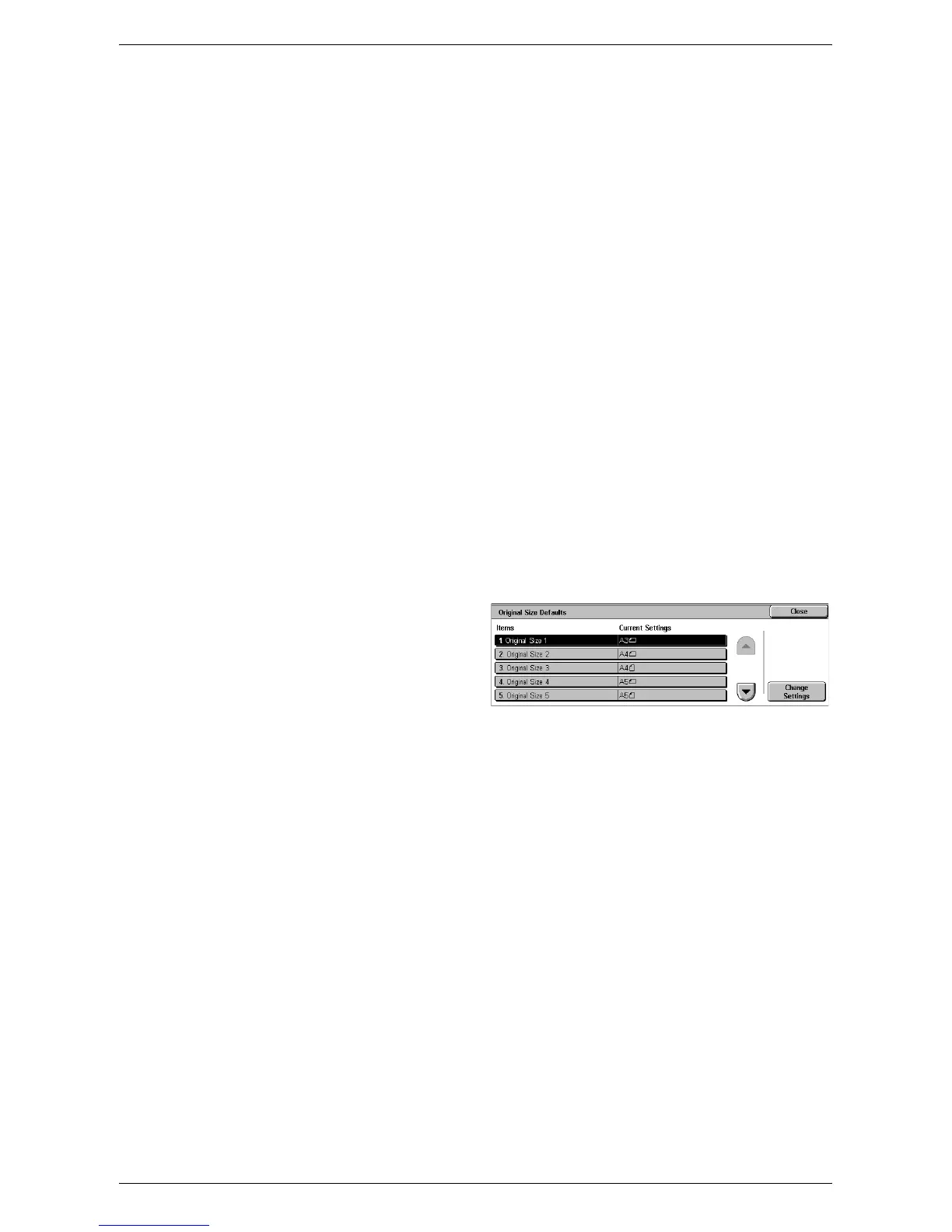

Original Size Defaults
This feature allows you to assign preset document size buttons. These are displayed
when you use the [Original Size] feature on the [Layout Adjustment] screen. If you
predefine frequently used document sizes, you can set the size of the original, quickly
and easily.
1. Select [Original Size Defaults] in
the [Features] menu.
2. Change the required settings.
Use the scroll buttons to switch
between screens.
3. Select [Close].
Original Size 1 to 11
Specifies the document sizes assigned to each of the 11 buttons.
• A/B Series Size
Specifies standard document sizes from A/B series. Use the scroll buttons to switch
between screens.
•Inch Size
Specifies standard document sizes from Inch series. Use the scroll buttons to switch
between screens.
• Others
Specifies other miscellaneous sizes. Use the scroll buttons to switch between
screens.
•Custom Size
Specifies a user-defined size set using the scroll buttons.
Reduce/Enlarge Presets
This feature allows you to assign preset magnification buttons. These are displayed
when you select [Proportional %] in the [Reduce/Enlarge] feature on the [Copy] screen.

Xerox WorkCentre 5230A Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	4.3 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Power supply type	AC
Dimensions (WxDxH)	640 x 652 x 1113 mm
Power requirements	220 – 240V, 50/60 Hz
Printer management	SNMPv1, SNMPv2c, SMTPv3, TCP/IP, IP
Networking features	Fast Ethernet
All-in-one functions	Copy, Scan
Standard media sizes	89 x 98.4mm - 297 x 420mm
Maximum internal memory	0.768 GB
Color all-in-one functions	scan, n
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7 Mac OS X 10.3 – 10.5 AIX 5Iv5.3 HP UX 11.0, 11i v2 Solaris 8/9/10 Linux Fedora Core 1/5 RedHat Enterprise Linux 4 SUSE x10
Dimensions (W x D x H) (imperial)	25.2 x 25.7 x 43.8 \
Acoustic power emissions (active, print, copy or scan)	72/38 dB
Scanner type	Flatbed scanner
Input color depth	24 bit
Maximum scan area	297 x 432 mm
Image formats supported	JPG, TIF
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	30 cpm
Total input capacity	1100 sheets
Total output capacity	500 sheets
Maximum input capacity	5100 sheets
Auto document feeder (ADF) input capacity	75 sheets
Internal memory	512 MB
Processor family	PowerPC
Internal storage capacity	40 GB
Sound pressure level (printing)	22 dB
Display	-
Market positioning	Business
Envelopes sizes	C5, DL
Maximum print size	297 x 420 mm
Media weight (tray 1)	60 to 105 g/sm2
Paper tray media types	Bond paper, Plain paper, Pre-Printed, Recycled paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 215 g/m²
Supported network protocols (IPv4)	TCP/IP, IPv6HTTP/HTTPS, LPR/LPD
Standard interfaces	USB 2.0
Power consumption (standby)	95 W
Power consumption (average operating)	615 W
Sustainability certificates	ENERGY STAR
Maximum duty cycle	100000 pages per month
Recommended duty cycle	12000 pages per month
Operating temperature (T-T)	10 - 28 °C
Operating relative humidity (H-H)	15 - 85 %
