Xerox WorkCentre 5230A User Manual

Loading Paper
19
NOTE: Always load paper into the tray in the orientation shown in the diagram.
3. Close the tray.
The elevator rises and positions the paper for use.
Bypass Tray (Tray 5)
Tray 5 (Bypass) allows you to use a variety of paper types. Tray 5 (Bypass) is located
on the left-hand side of the machine. A tray extension is provided to accommodate
larger sized paper. After loading paper stock in Tray 5 (Bypass), make sure that the
Tray 5 (Bypass) settings on the touch screen match the paper size and type of stock
loaded. If they do not match, reprogramming is required. For more information on
programming of Tray 5 (Bypass), refer to the Copy chapter in the User Guide.
NOTE: To avoid paper jams, make sure that the paper size and paper type settings
are identical to the paper stock loaded.

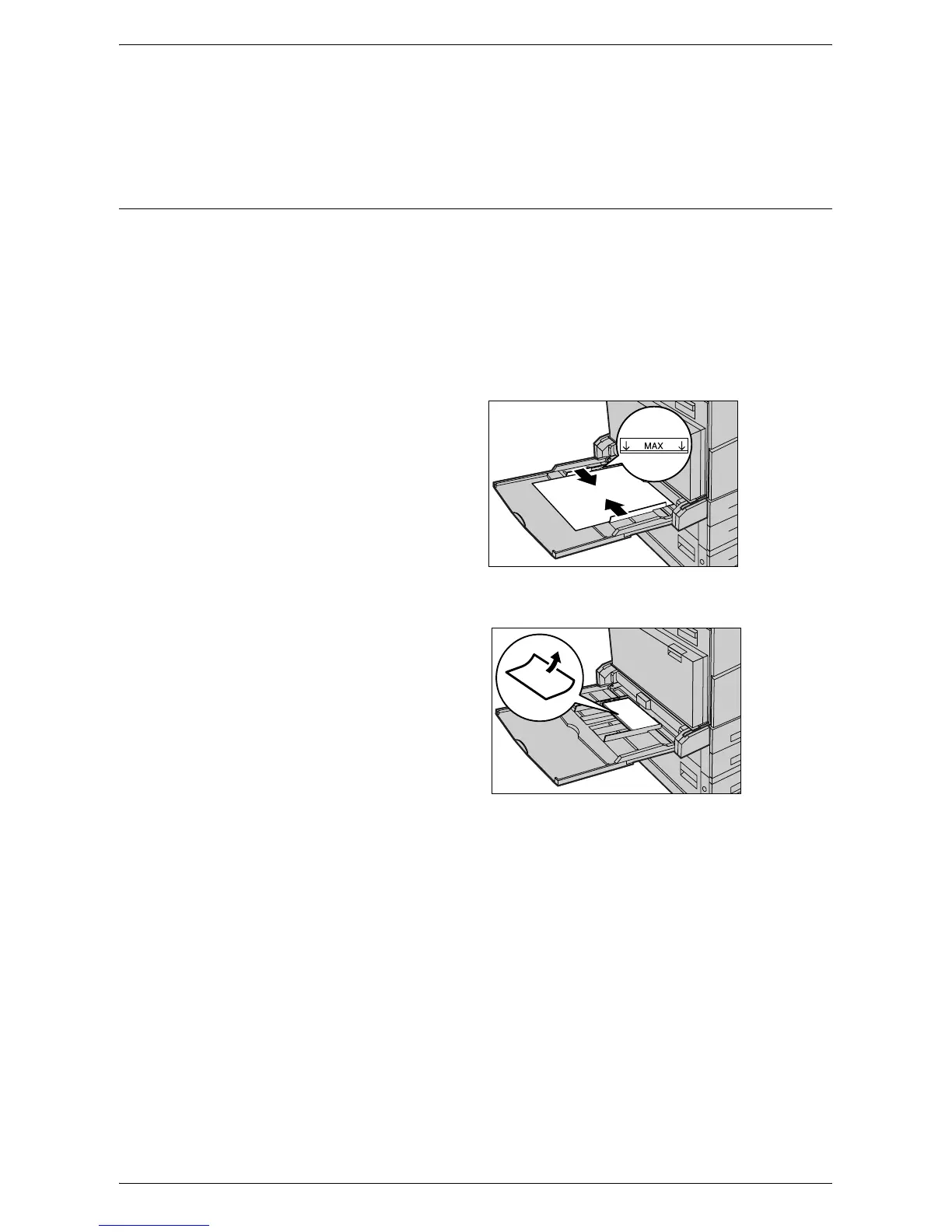

1. Load the paper neatly into Tray
5 (Bypass), making sure that the
paper stock is in the center of
the tray.
NOTE: Do not load paper above the
maximum fill line.
NOTE: When making single/double
sided copies on perforated paper,
load the paper to feed the opposite side of the perforated edge first. Feeding the
perforated edge first might cause paper jams.
NOTE: If, when making copies or
prints on thick-stock paper, the
paper will not feed into the machine,
apply a curl to the paper as shown in
the illustration above. Note however,
that excessively bending or folding
the paper might cause paper jams.
NOTE: When loading envelopes,
make sure the flaps are closed and
that the envelopes are oriented on the tray so that the edge with the flaps will enter the
machine first. However, when loading C5-size envelopes, set them long edge feed so
that the edge with the flaps will face toward you.
2. Slide the side guides towards the paper until they are just touching the edge of the
stock.

Xerox WorkCentre 5230A Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	4.3 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Power supply type	AC
Dimensions (WxDxH)	640 x 652 x 1113 mm
Power requirements	220 – 240V, 50/60 Hz
Printer management	SNMPv1, SNMPv2c, SMTPv3, TCP/IP, IP
Networking features	Fast Ethernet
All-in-one functions	Copy, Scan
Standard media sizes	89 x 98.4mm - 297 x 420mm
Maximum internal memory	0.768 GB
Color all-in-one functions	scan, n
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7 Mac OS X 10.3 – 10.5 AIX 5Iv5.3 HP UX 11.0, 11i v2 Solaris 8/9/10 Linux Fedora Core 1/5 RedHat Enterprise Linux 4 SUSE x10
Dimensions (W x D x H) (imperial)	25.2 x 25.7 x 43.8 \
Acoustic power emissions (active, print, copy or scan)	72/38 dB
Scanner type	Flatbed scanner
Input color depth	24 bit
Maximum scan area	297 x 432 mm
Image formats supported	JPG, TIF
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	30 cpm
Total input capacity	1100 sheets
Total output capacity	500 sheets
Maximum input capacity	5100 sheets
Auto document feeder (ADF) input capacity	75 sheets
Internal memory	512 MB
Processor family	PowerPC
Internal storage capacity	40 GB
Sound pressure level (printing)	22 dB
Display	-
Market positioning	Business
Envelopes sizes	C5, DL
Maximum print size	297 x 420 mm
Media weight (tray 1)	60 to 105 g/sm2
Paper tray media types	Bond paper, Plain paper, Pre-Printed, Recycled paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 215 g/m²
Supported network protocols (IPv4)	TCP/IP, IPv6HTTP/HTTPS, LPR/LPD
Standard interfaces	USB 2.0
Power consumption (standby)	95 W
Power consumption (average operating)	615 W
Sustainability certificates	ENERGY STAR
Maximum duty cycle	100000 pages per month
Recommended duty cycle	12000 pages per month
Operating temperature (T-T)	10 - 28 °C
Operating relative humidity (H-H)	15 - 85 %
