5 Machine Status
This chapter describes how to check the machine status, billing meter, and status of
consumables. It also describes how to print various reports/lists and how to access the
System Administration mode.
For information on each tab, refer to the following:
Machine Information – page 49
Faults – page 58
Supplies – page 58
Billing Information – page 59
Tools – page 60

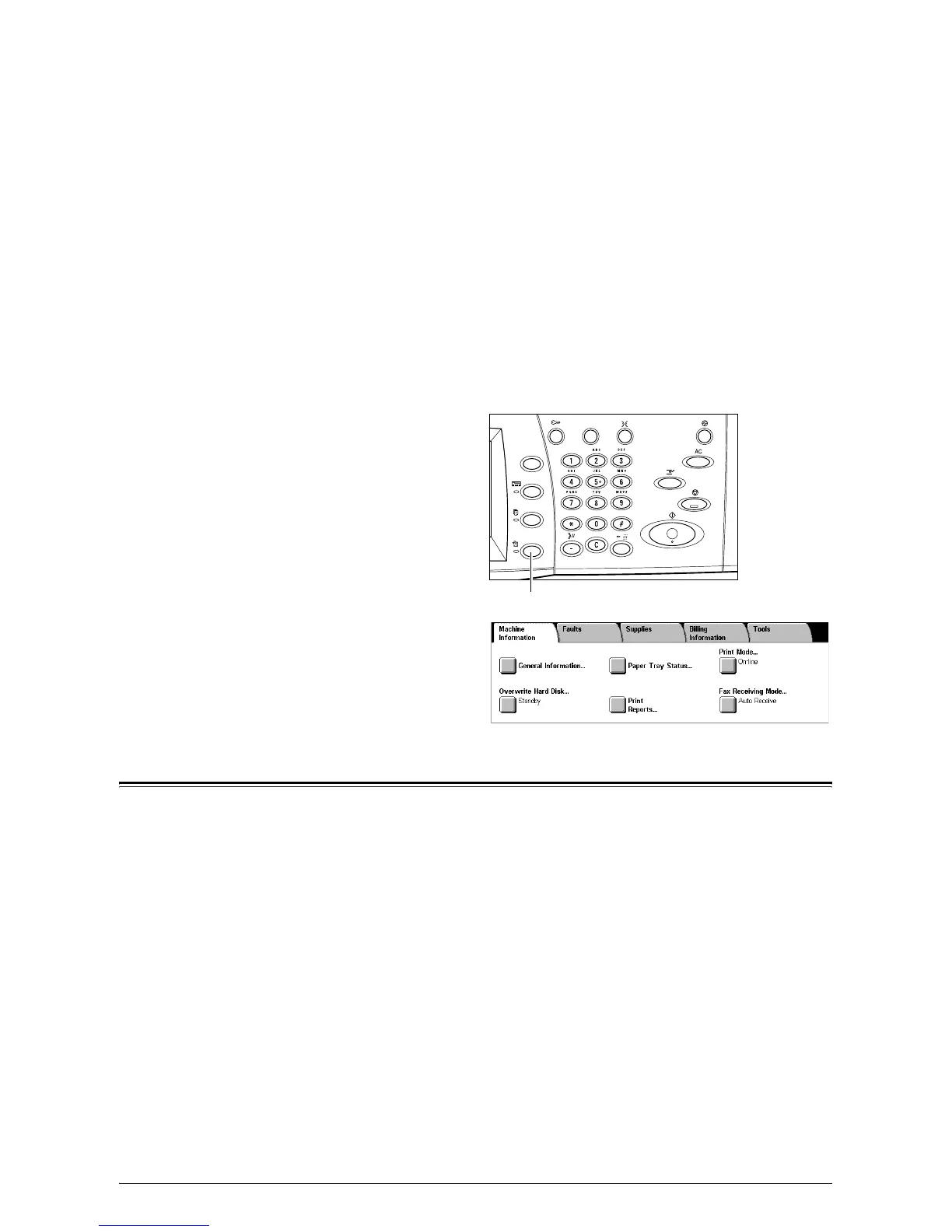

1. Press the <Machine Status>
button on the control panel.
NOTE: Press the <Features> or <All
Services> button at any time to exit.
2. Select the required option.
Machine Information
This section describes how to view general information about the machine, the status
of paper trays and the hard disk, and how to change the print mode or fax receiving
mode.
For more information on the features available, refer to the following:
General Information – page 50
Paper Tray Status – page 50
Print Mode – page 51
Overwrite Hard Disk – page 52
Print Reports – page 52
Automatically Printed Reports/Lists – page 57
Fax Receiving Mode – page 58
<Machine Status> button

Xerox WorkCentre 5230A Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	4.3 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Power supply type	AC
Dimensions (WxDxH)	640 x 652 x 1113 mm
Power requirements	220 – 240V, 50/60 Hz
Printer management	SNMPv1, SNMPv2c, SMTPv3, TCP/IP, IP
Networking features	Fast Ethernet
All-in-one functions	Copy, Scan
Standard media sizes	89 x 98.4mm - 297 x 420mm
Maximum internal memory	0.768 GB
Color all-in-one functions	scan, n
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7 Mac OS X 10.3 – 10.5 AIX 5Iv5.3 HP UX 11.0, 11i v2 Solaris 8/9/10 Linux Fedora Core 1/5 RedHat Enterprise Linux 4 SUSE x10
Dimensions (W x D x H) (imperial)	25.2 x 25.7 x 43.8 \
Acoustic power emissions (active, print, copy or scan)	72/38 dB
Scanner type	Flatbed scanner
Input color depth	24 bit
Maximum scan area	297 x 432 mm
Image formats supported	JPG, TIF
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	30 cpm
Total input capacity	1100 sheets
Total output capacity	500 sheets
Maximum input capacity	5100 sheets
Auto document feeder (ADF) input capacity	75 sheets
Internal memory	512 MB
Processor family	PowerPC
Internal storage capacity	40 GB
Sound pressure level (printing)	22 dB
Display	-
Market positioning	Business
Envelopes sizes	C5, DL
Maximum print size	297 x 420 mm
Media weight (tray 1)	60 to 105 g/sm2
Paper tray media types	Bond paper, Plain paper, Pre-Printed, Recycled paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 215 g/m²
Supported network protocols (IPv4)	TCP/IP, IPv6HTTP/HTTPS, LPR/LPD
Standard interfaces	USB 2.0
Power consumption (standby)	95 W
Power consumption (average operating)	615 W
Sustainability certificates	ENERGY STAR
Maximum duty cycle	100000 pages per month
Recommended duty cycle	12000 pages per month
Operating temperature (T-T)	10 - 28 °C
Operating relative humidity (H-H)	15 - 85 %
