Paper Tray Settings
This feature allows you to configure various settings for trays, and for paper to be
loaded in the trays.

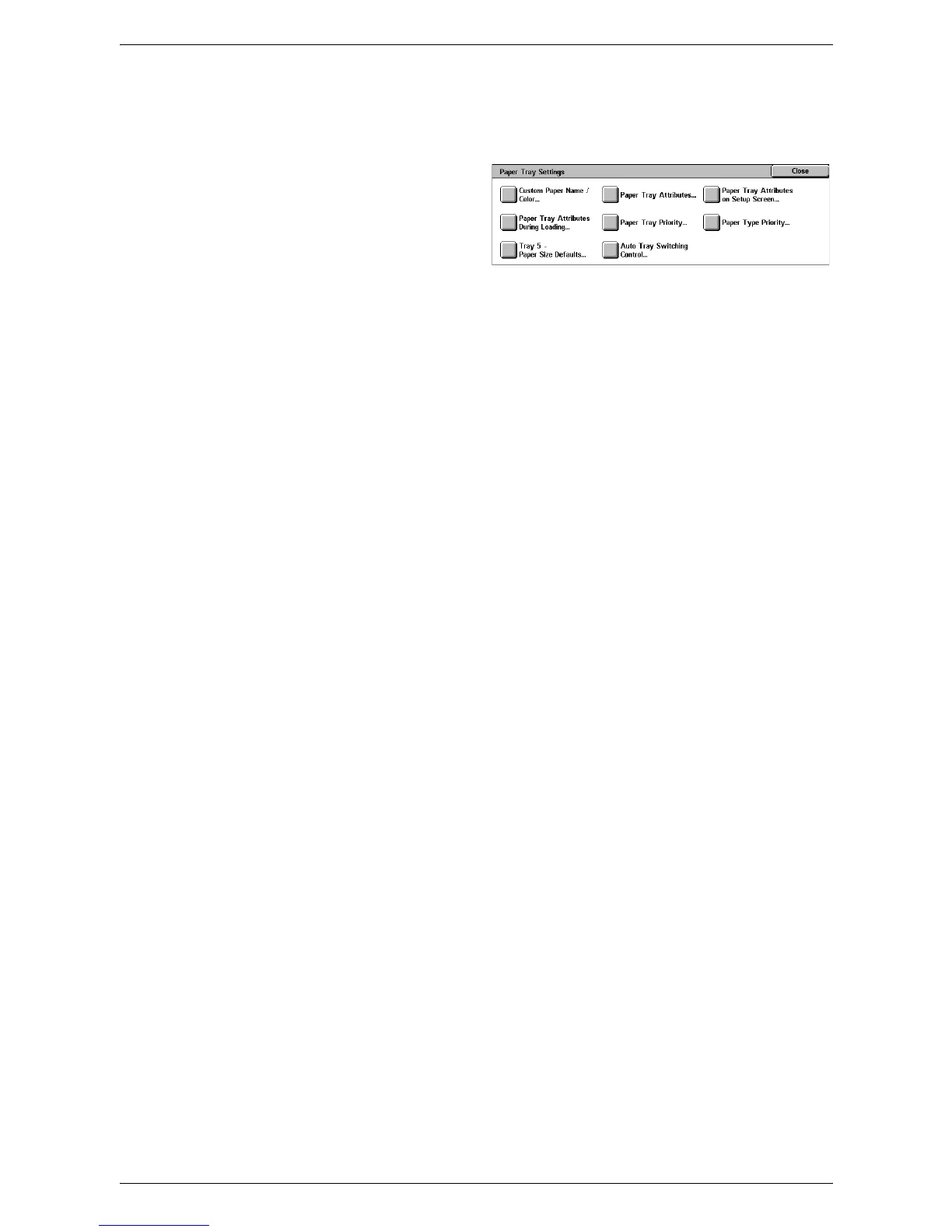

1. Select [Paper Tray Settings] in
the [Features] menu.
2. Change the required settings.
3. Select [Close].
Custom Paper Name / Color
Specifies user-defined paper names and paper colors for Custom Paper Type 1 to 5
and Custom Paper Color 1 to 5 respectively. The settings are available for plain paper,
bond paper, and recycled paper. Enter a name of up to 24 alphanumeric characters
and symbols. Assigned names are displayed on the screens relating to paper supply.
Paper Tray Attributes
Specifies the size and type of paper loaded in the paper trays. The paper trays
available vary depending on your machine configuration.
Select automatic detection of the paper size or specify a fixed size. Select a paper type
from the list of preset types.
NOTE: The machine also displays a screen for changing/confirming the following
settings when a paper tray is pulled out and then closed.
• Paper Size
Specifies automatic detection of the paper size for Tray 1 to Tray 4, and Tray 6 using
the tray guide levers. If the guide levers in a paper tray are not in the correct position
for the size of paper loaded in the tray, a size error will occur. This setting is not
available for Tray 5 (Bypass).
NOTE: When loading trays with postcards, contact the Xerox Welcome Center to
have the tray settings changed specially for the use of postcards.
–Custom Size
Displays the [Custom Size] screen. When you load non-standard size paper in Tray
1, Tray 2, Tray 3, or Tray 4, specify the paper width (X) and the paper height (Y) for
that tray.
NOTE: Tray 6 does not support the [Custom Size] setting.
– Auto Size Detect
Enables the Auto Detect feature.
• Paper Type / Color
Specifies the paper type and color for each paper tray.
NOTE: When the Envelope Tray is installed, place a check mark in the [Envelope
Feeder] check box on the [Tray 1] screen. Paper size, type, and color options for the
Envelope Tray will then be selectable under [Paper Size] and [Paper Type / Color].
Paper Tray Attributes on Setup Screen
Specifies whether to display the paper tray attributes on the [Setup] menu.

Xerox WorkCentre 5230A Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	4.3 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Power supply type	AC
Dimensions (WxDxH)	640 x 652 x 1113 mm
Power requirements	220 – 240V, 50/60 Hz
Printer management	SNMPv1, SNMPv2c, SMTPv3, TCP/IP, IP
Networking features	Fast Ethernet
All-in-one functions	Copy, Scan
Standard media sizes	89 x 98.4mm - 297 x 420mm
Maximum internal memory	0.768 GB
Color all-in-one functions	scan, n
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7 Mac OS X 10.3 – 10.5 AIX 5Iv5.3 HP UX 11.0, 11i v2 Solaris 8/9/10 Linux Fedora Core 1/5 RedHat Enterprise Linux 4 SUSE x10
Dimensions (W x D x H) (imperial)	25.2 x 25.7 x 43.8 \
Acoustic power emissions (active, print, copy or scan)	72/38 dB
Scanner type	Flatbed scanner
Input color depth	24 bit
Maximum scan area	297 x 432 mm
Image formats supported	JPG, TIF
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	30 cpm
Total input capacity	1100 sheets
Total output capacity	500 sheets
Maximum input capacity	5100 sheets
Auto document feeder (ADF) input capacity	75 sheets
Internal memory	512 MB
Processor family	PowerPC
Internal storage capacity	40 GB
Sound pressure level (printing)	22 dB
Display	-
Market positioning	Business
Envelopes sizes	C5, DL
Maximum print size	297 x 420 mm
Media weight (tray 1)	60 to 105 g/sm2
Paper tray media types	Bond paper, Plain paper, Pre-Printed, Recycled paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 215 g/m²
Supported network protocols (IPv4)	TCP/IP, IPv6HTTP/HTTPS, LPR/LPD
Standard interfaces	USB 2.0
Power consumption (standby)	95 W
Power consumption (average operating)	615 W
Sustainability certificates	ENERGY STAR
Maximum duty cycle	100000 pages per month
Recommended duty cycle	12000 pages per month
Operating temperature (T-T)	10 - 28 °C
Operating relative humidity (H-H)	15 - 85 %
