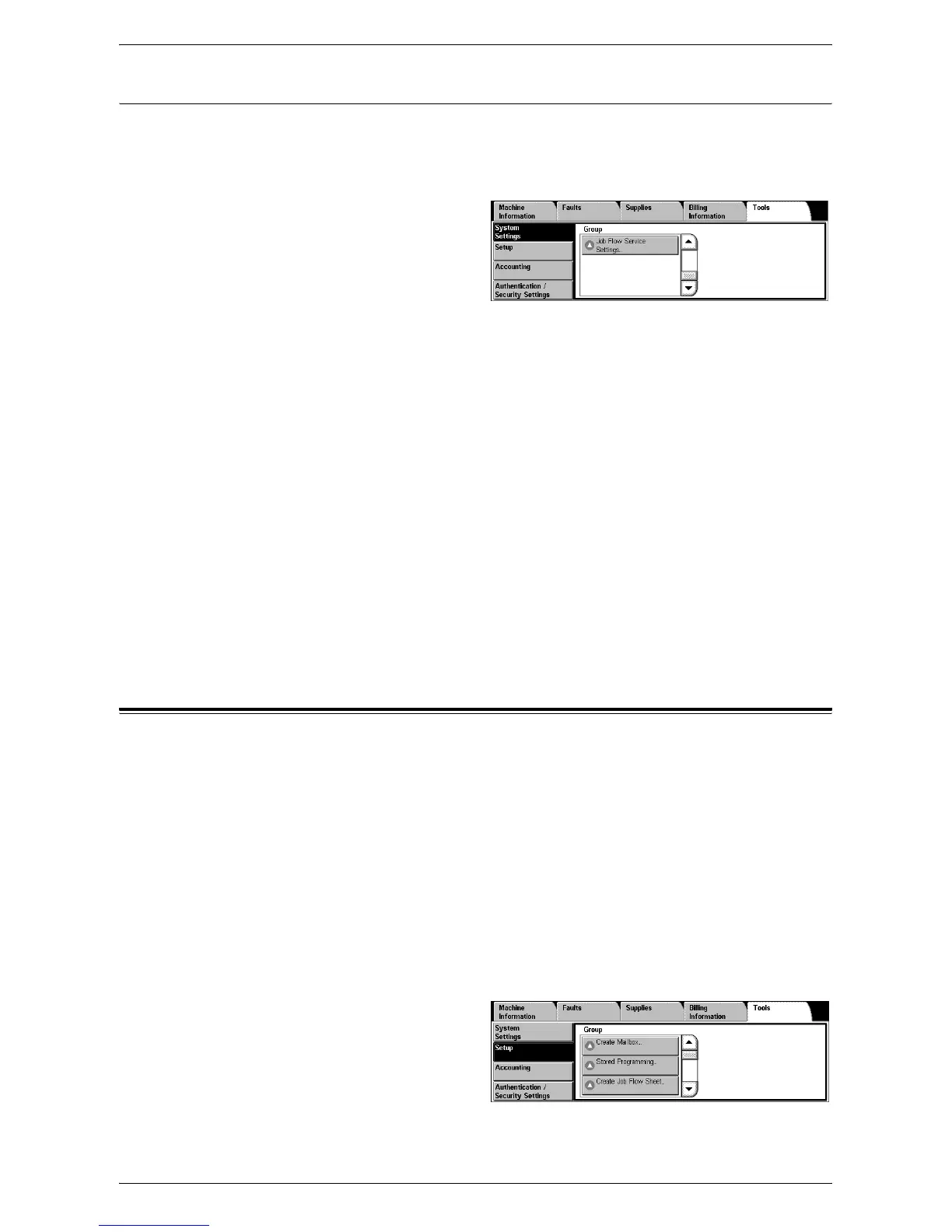

Xerox WorkCentre 5230A User Manual

Setup
123
Job Flow Service Settings
This feature allows you to configure the settings for accessing a pool server. A pool
server is a remote server that stores and manages job flow sheets.
To use a pool server, the machine must be registered on the pool server in advance.
1. Select [System Settings], and
then select [Job Flow Service
Settings] in the [Group] menu.
2. Select the required setting.
Pool Server
Specifies whether to use a pool server.
Pool Server Login Method
Specifies the pool server login method. Selecting [Show login screen] displays a login
screen to enter the login name and the password each time the machine accesses the
pool server.
Job Flow Sheet List Default
Specifies the default job flow sheet list to be displayed on the [Job Flow Sheets] screen.
Selecting [Local Machine] displays the job flow sheet list stored in the machine.
Selecting [Pool Server] displays the list stored in the pool server.
Fax Transfer Resolution (WorkCentre 5225A/5230A)
Specifies the resolution to be used when color data is transferred by fax. Select [Same
Resolution (High Quality)] to transfer data at the same resolution as the scan
resolution. Select [200 dpi (High Speed)] to transfer data at a resolution of 200 dpi.
Setup
This section describes the Setup menu that is also available for general users. In this
menu, you can register various items such as mailboxes, destination addresses and job
flow sheets. For more information, refer to the following:
Create Mailbox – page 124
Stored Programming – page 125
Create Job Flow Sheet – page 126
Create Job Flow Sheet Keyword – page 129
Add Address Book Entry – page 129
Create Fax Group Recipients – page 132
Add Fax Comment – page 133
Paper Tray Attributes – page 133
1. Select [Setup] on the [Tools]
screen.
2. Select a group in the [Group]
menu.

Xerox WorkCentre 5230A Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	4.3 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Power supply type	AC
Dimensions (WxDxH)	640 x 652 x 1113 mm
Power requirements	220 – 240V, 50/60 Hz
Printer management	SNMPv1, SNMPv2c, SMTPv3, TCP/IP, IP
Networking features	Fast Ethernet
All-in-one functions	Copy, Scan
Standard media sizes	89 x 98.4mm - 297 x 420mm
Maximum internal memory	0.768 GB
Color all-in-one functions	scan, n
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7 Mac OS X 10.3 – 10.5 AIX 5Iv5.3 HP UX 11.0, 11i v2 Solaris 8/9/10 Linux Fedora Core 1/5 RedHat Enterprise Linux 4 SUSE x10
Dimensions (W x D x H) (imperial)	25.2 x 25.7 x 43.8 \
Acoustic power emissions (active, print, copy or scan)	72/38 dB
Scanner type	Flatbed scanner
Input color depth	24 bit
Maximum scan area	297 x 432 mm
Image formats supported	JPG, TIF
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	30 cpm
Total input capacity	1100 sheets
Total output capacity	500 sheets
Maximum input capacity	5100 sheets
Auto document feeder (ADF) input capacity	75 sheets
Internal memory	512 MB
Processor family	PowerPC
Internal storage capacity	40 GB
Sound pressure level (printing)	22 dB
Display	-
Market positioning	Business
Envelopes sizes	C5, DL
Maximum print size	297 x 420 mm
Media weight (tray 1)	60 to 105 g/sm2
Paper tray media types	Bond paper, Plain paper, Pre-Printed, Recycled paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 215 g/m²
Supported network protocols (IPv4)	TCP/IP, IPv6HTTP/HTTPS, LPR/LPD
Standard interfaces	USB 2.0
Power consumption (standby)	95 W
Power consumption (average operating)	615 W
Sustainability certificates	ENERGY STAR
Maximum duty cycle	100000 pages per month
Recommended duty cycle	12000 pages per month
Operating temperature (T-T)	10 - 28 °C
Operating relative humidity (H-H)	15 - 85 %
