Xerox WorkCentre 5230A User Manual

3 Maintenance
36

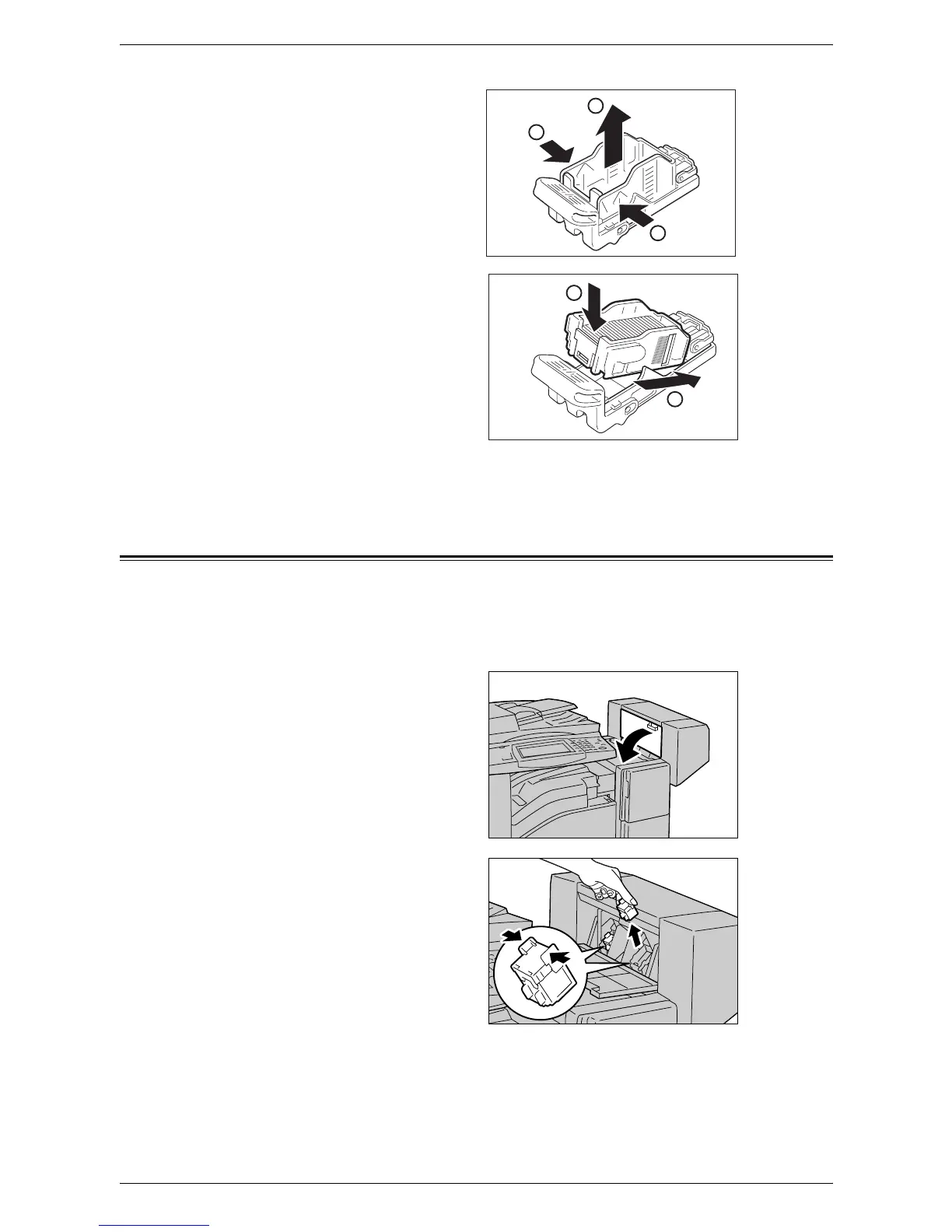

4. Pinch both sides of the empty
staple case with your fingers
(1), and remove the staple
case from the cartridge (2).
5. Insert the front side of the new
staple case into the staple
cartridge (1), and then push the
rear side into the cartridge (2).
6. Hold the staple cartridge by the
orange lever, and insert it into
the finisher until it clicks.
7. Close the front cover of the
finisher.
NOTE: If the front cover is not completely closed, a message will appear and the
machine will not operate.
Loading the Booklet Staples in the Office Finisher LX (Optional)
If the optional Booklet Maker is installed, a message appears on the touch screen when
the unit runs out of staples. When the message is displayed, load a new staple
cartridge into the Booklet Maker. The Booklet Maker contains two staple cartridges.
1. Make sure that the machine is
not operating, and open the
side cover of the finisher.
2. Hold the tabs on both sides of
the booklet staple cartridge
and pull the cartridge out of the
finisher.
1
1
2
1
2
