The following explains how to adjust the fold and staple positions.
1. Select [Booklet fold Position, smaller than B4] or [Booklet Fold Position, B4 or
larger], and then select [Change Settings].
2. Select [Sample Printout], and then select the tray to output a sample printout for.
Press the <Start> button.
3. Select the option that best describes the current fold and staple positions.
4. Enter the desired fold and staple positions into [A] and [B].
5. Select [Adjust] to apply the settings.
6. Select [Sample Printout] and then select the tray again, to output a sample
printout. Check with the sample printout that the fold and staple positions have
been adjusted.
Delete All Certificates/Initialize Settings (WorkCentre 5225A/5230A)
Deletes all certificates stored in the machine, and initializes the security settings
associated with the certificates.
Watermark
This feature allows you to set the defaults for date and text information which can be
added to the output as a watermark, for document management control.

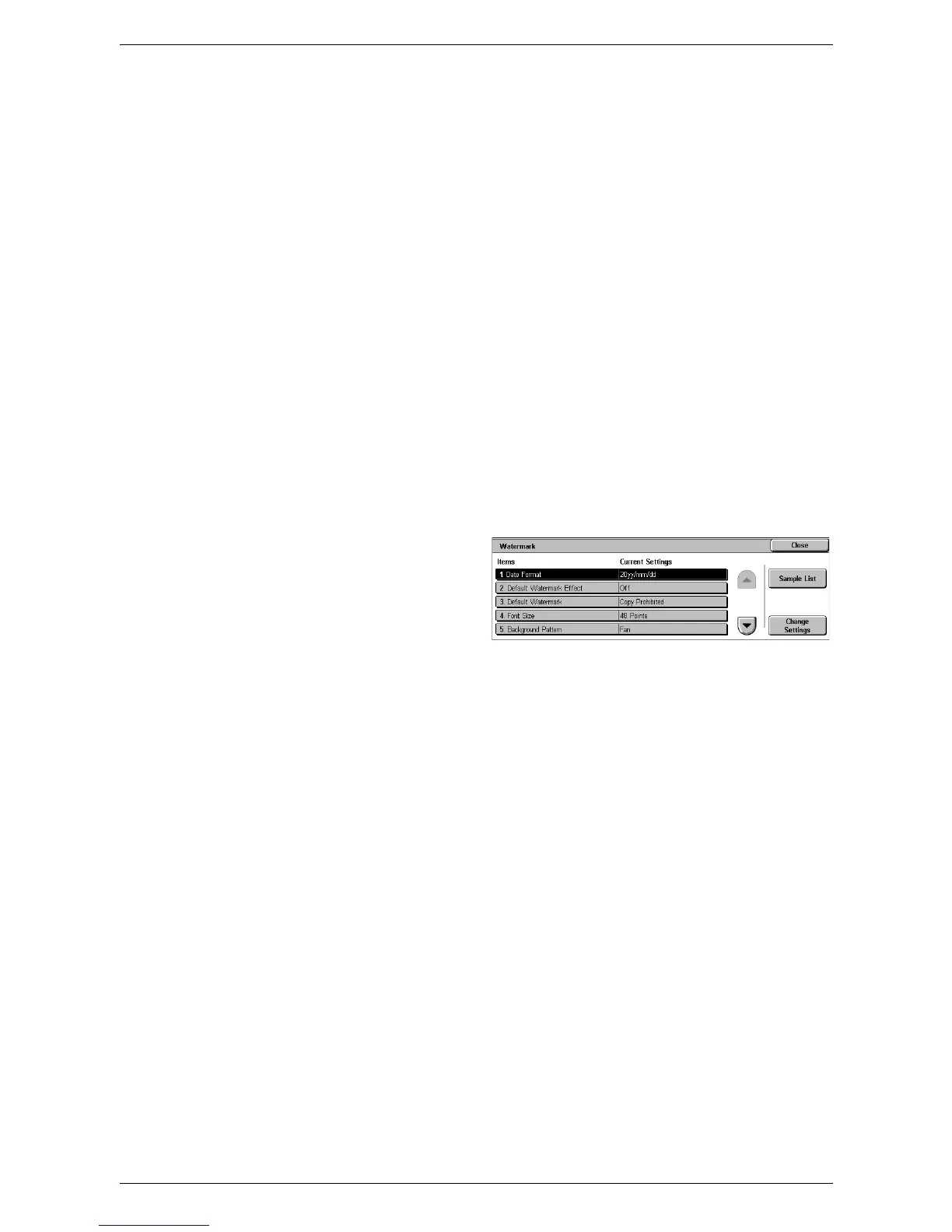

1. Select [Watermark] in the
[Features] menu.
2. Change the required settings.
Use the side tabs to switch
between screens.
3. Select [Close].
Date Format
Specifies the current date. Select from three date formats: 20yy/mm/dd, dd/mm/20yy,
mm/dd/20yy.
Default Watermark Effect
Specifies the default setting of the Text Effect feature.
•Off
Does not use the Text Effect feature.
• Embossed
Embosses background text.
• Outline
Prints the outline of background text.
Default Watermark
Specifies the default watermark text from a list of preset and custom text strings.
Font Size
Specifies the default watermark font size. You can select from three preset font sizes
or specify a value between 24 and 80 points using the scroll buttons.

Xerox WorkCentre 5230A Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	4.3 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Power supply type	AC
Dimensions (WxDxH)	640 x 652 x 1113 mm
Power requirements	220 – 240V, 50/60 Hz
Printer management	SNMPv1, SNMPv2c, SMTPv3, TCP/IP, IP
Networking features	Fast Ethernet
All-in-one functions	Copy, Scan
Standard media sizes	89 x 98.4mm - 297 x 420mm
Maximum internal memory	0.768 GB
Color all-in-one functions	scan, n
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7 Mac OS X 10.3 – 10.5 AIX 5Iv5.3 HP UX 11.0, 11i v2 Solaris 8/9/10 Linux Fedora Core 1/5 RedHat Enterprise Linux 4 SUSE x10
Dimensions (W x D x H) (imperial)	25.2 x 25.7 x 43.8 \
Acoustic power emissions (active, print, copy or scan)	72/38 dB
Scanner type	Flatbed scanner
Input color depth	24 bit
Maximum scan area	297 x 432 mm
Image formats supported	JPG, TIF
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	30 cpm
Total input capacity	1100 sheets
Total output capacity	500 sheets
Maximum input capacity	5100 sheets
Auto document feeder (ADF) input capacity	75 sheets
Internal memory	512 MB
Processor family	PowerPC
Internal storage capacity	40 GB
Sound pressure level (printing)	22 dB
Display	-
Market positioning	Business
Envelopes sizes	C5, DL
Maximum print size	297 x 420 mm
Media weight (tray 1)	60 to 105 g/sm2
Paper tray media types	Bond paper, Plain paper, Pre-Printed, Recycled paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 215 g/m²
Supported network protocols (IPv4)	TCP/IP, IPv6HTTP/HTTPS, LPR/LPD
Standard interfaces	USB 2.0
Power consumption (standby)	95 W
Power consumption (average operating)	615 W
Sustainability certificates	ENERGY STAR
Maximum duty cycle	100000 pages per month
Recommended duty cycle	12000 pages per month
Operating temperature (T-T)	10 - 28 °C
Operating relative humidity (H-H)	15 - 85 %
