Xerox WorkCentre 5230A User Manual

5 Machine Status
60

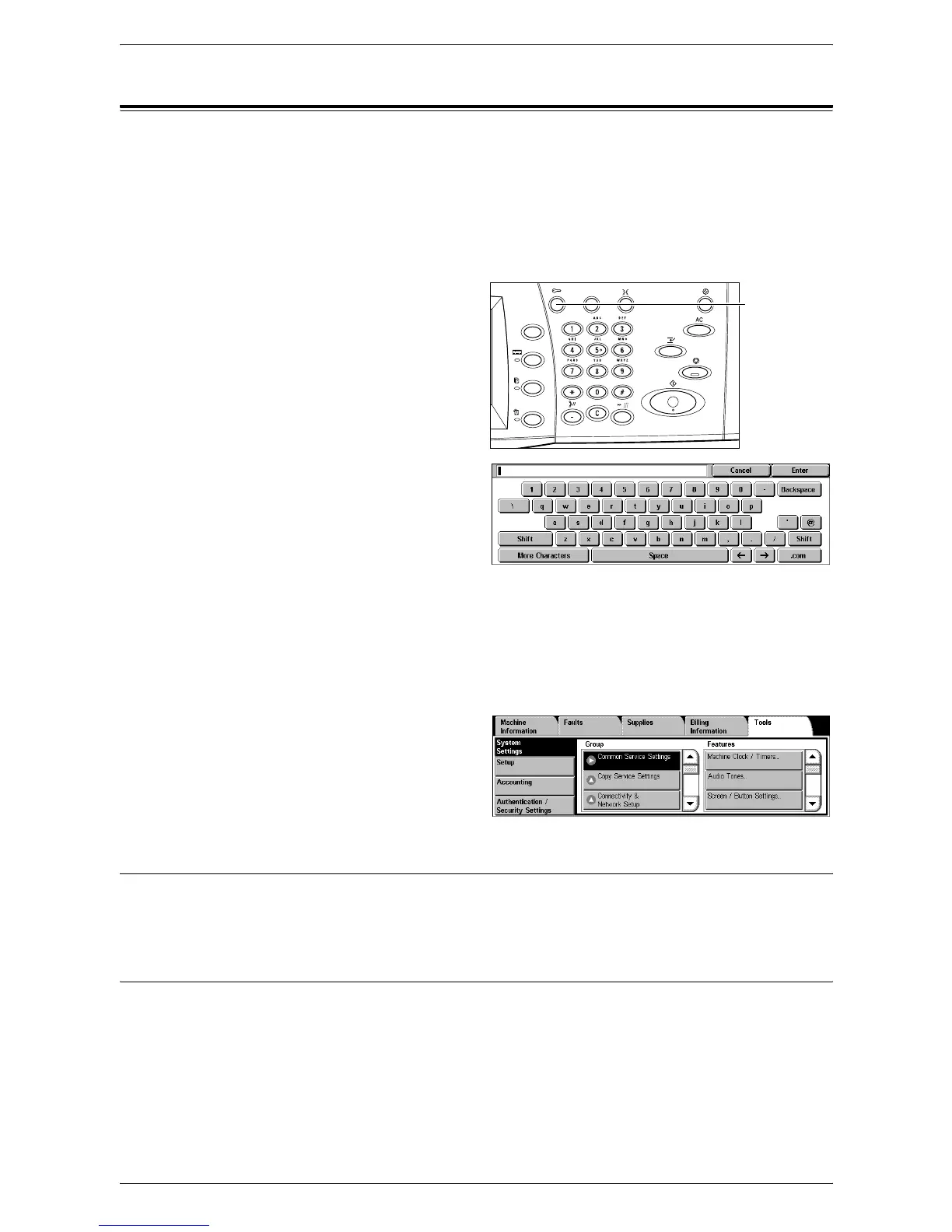

Tools
On the [Tools] screen, the System Administrator can change various default presets on
the machine, register mailboxes and job flow sheets, and configure authentication and
security features.
To access all features on this screen, you must enter the machine in the System
Administration mode. Use the following steps to enter the [Tools] screen in the System
Administration mode.
1. Press the <Log In/Out> button
on the control panel.
2. Enter the correct user ID using
the numeric keypad on the
control panel or the screen
keyboard.
NOTE: The default System
Administrator ID is “11111”. If the Authentication feature is enabled, you may also be
required to enter a passcode. The default passcode is “x-admin”. To change the
default user ID or passcode, refer to
System Administrator Settings on page 140 .
3. Press the <Machine Status> button.
4. Select the [Tools] tab.
5. Select the required option.
System Settings
This menu allows you to change various default presets on the machine.
For more information on the features available, refer to
System Settings on page 65 .
Setup
This menu allows you to program various items, such as mailboxes, job flow sheets,
and the Address Book.
NOTE: This feature is available on the [Tools] screen even when you enter the screen
in the general user’s mode (when you skip Steps 1 and 2).
For more information on the features available, refer to
Setup on page 123 .
<Log In/Out>
button

Xerox WorkCentre 5230A Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	4.3 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Power supply type	AC
Dimensions (WxDxH)	640 x 652 x 1113 mm
Power requirements	220 – 240V, 50/60 Hz
Printer management	SNMPv1, SNMPv2c, SMTPv3, TCP/IP, IP
Networking features	Fast Ethernet
All-in-one functions	Copy, Scan
Standard media sizes	89 x 98.4mm - 297 x 420mm
Maximum internal memory	0.768 GB
Color all-in-one functions	scan, n
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7 Mac OS X 10.3 – 10.5 AIX 5Iv5.3 HP UX 11.0, 11i v2 Solaris 8/9/10 Linux Fedora Core 1/5 RedHat Enterprise Linux 4 SUSE x10
Dimensions (W x D x H) (imperial)	25.2 x 25.7 x 43.8 \
Acoustic power emissions (active, print, copy or scan)	72/38 dB
Scanner type	Flatbed scanner
Input color depth	24 bit
Maximum scan area	297 x 432 mm
Image formats supported	JPG, TIF
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	30 cpm
Total input capacity	1100 sheets
Total output capacity	500 sheets
Maximum input capacity	5100 sheets
Auto document feeder (ADF) input capacity	75 sheets
Internal memory	512 MB
Processor family	PowerPC
Internal storage capacity	40 GB
Sound pressure level (printing)	22 dB
Display	-
Market positioning	Business
Envelopes sizes	C5, DL
Maximum print size	297 x 420 mm
Media weight (tray 1)	60 to 105 g/sm2
Paper tray media types	Bond paper, Plain paper, Pre-Printed, Recycled paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 215 g/m²
Supported network protocols (IPv4)	TCP/IP, IPv6HTTP/HTTPS, LPR/LPD
Standard interfaces	USB 2.0
Power consumption (standby)	95 W
Power consumption (average operating)	615 W
Sustainability certificates	ENERGY STAR
Maximum duty cycle	100000 pages per month
Recommended duty cycle	12000 pages per month
Operating temperature (T-T)	10 - 28 °C
Operating relative humidity (H-H)	15 - 85 %
