Install and Replace Components Chapter 6

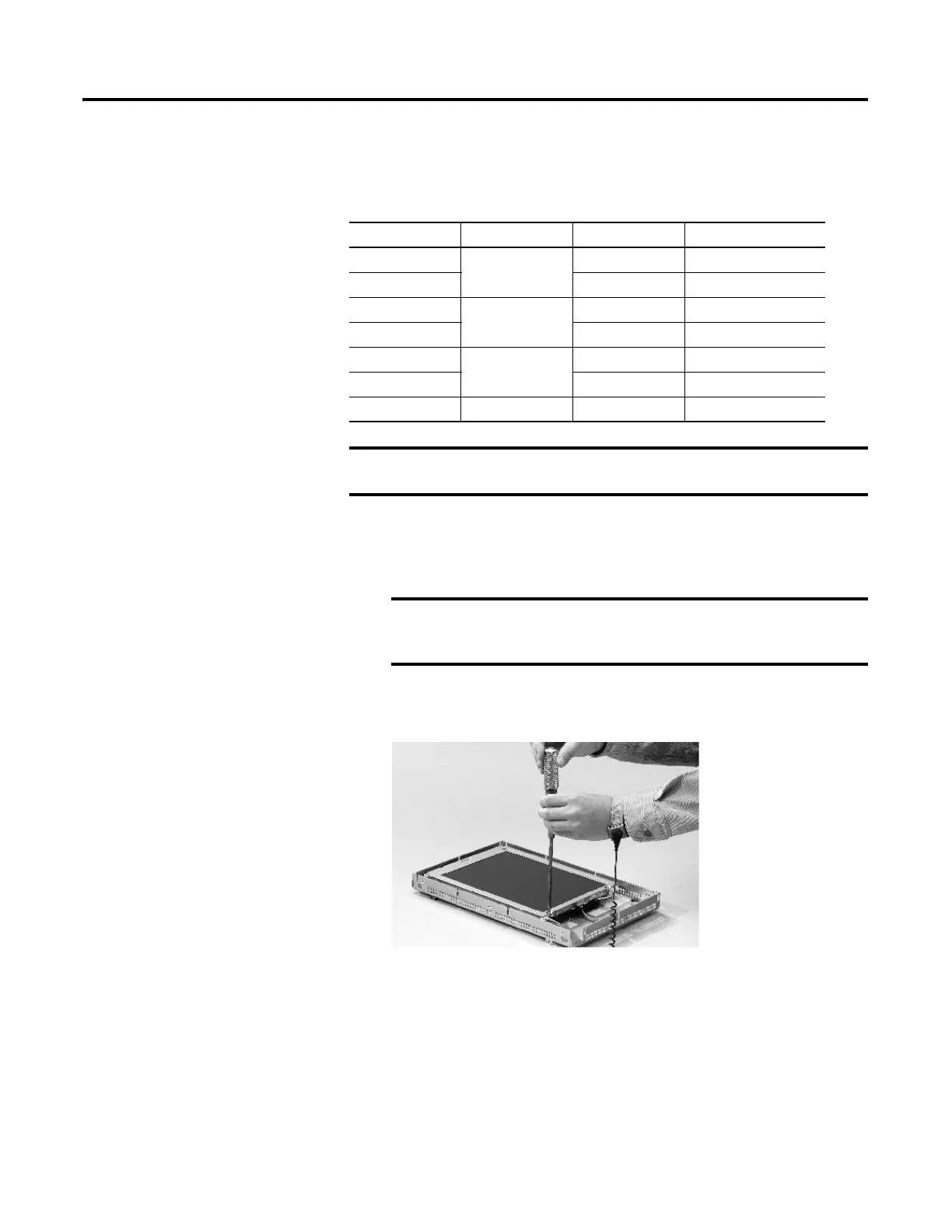

Replace the Backlight
All of the display modules have replaceable backlights except for the 1250
high-bright displays.
Follow these steps to replace the backlight.
1. Disconnect power from the terminal.
2. Remove the display module bezel.
3. Remove the four screws that secure the LCD display.
For 700 displays, remove the four screws that secure the display bracket.
Table 42 - Backlight Replacements
Use Cat. No. For Display Series # of Backlights
2711P-RL7C 700 A and B 1
2711P-RL7C2 C and D 1
2711P-RL10C 1000 A 1
2711P-RL10C2 B and C 1
2711P-RL12C 1250 A and B 2
2711P-RL12C2 C 1
2711P-RL15C 1500 B 2
IMPORTANT
Disposal: The backlights for these products contain mercury. Dispose of
per applicable laws.
IMPORTANT
The 700 series C display is not secured by screws and is retained
only by a bracket. Use care not to drop the display once the bezel
is removed.
