Rockwell Automation Publication 2711P-UM006A-EN-P - November 2010 151
Troubleshoot the System Chapter 9
Access Maintenance
Operations
The terminal typically launches the Windows desktop or a FactoryTalk View ME
application on startup. You can also start the system in Maintenance mode for
diagnostic and repair purposes.
Follow these steps to access Maintenance actions at startup.

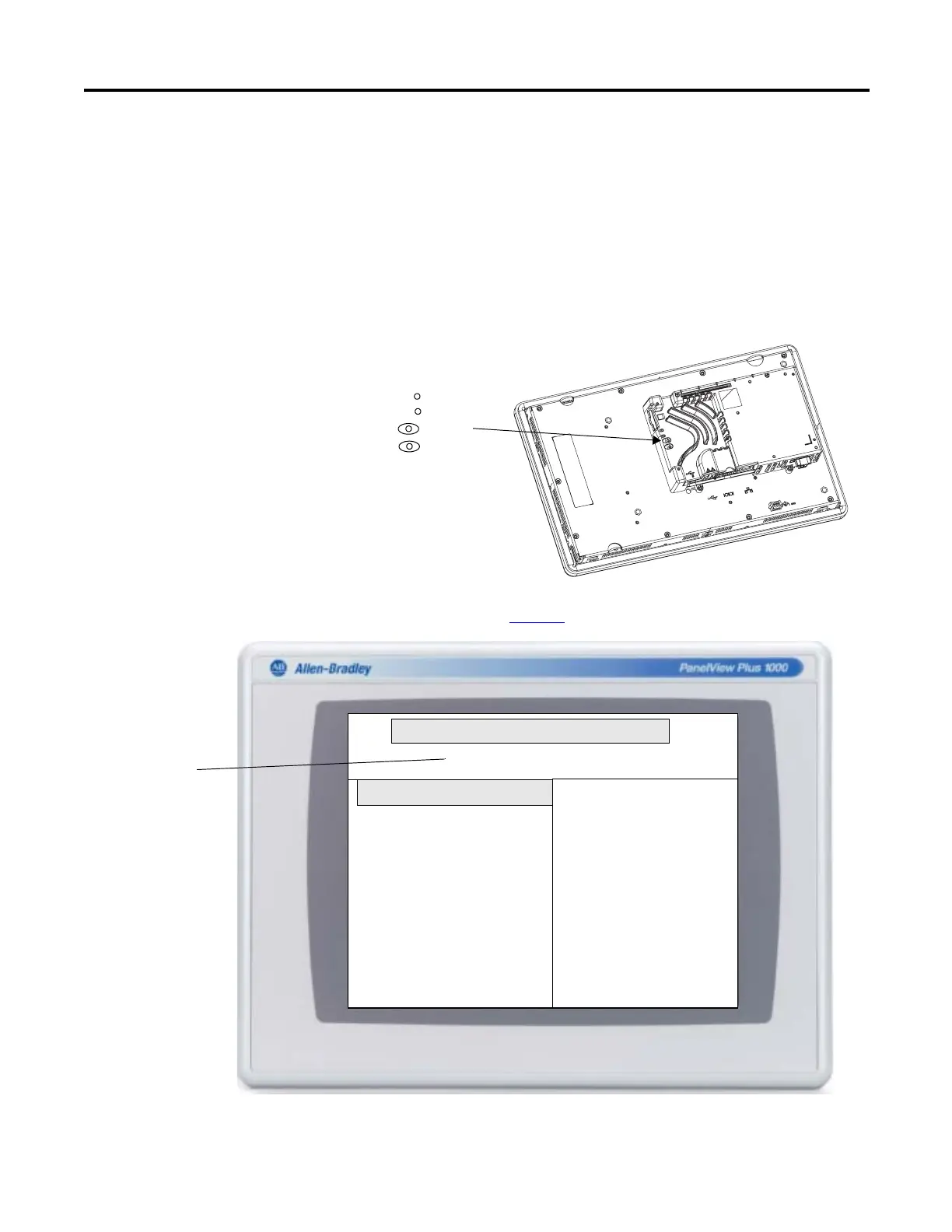

1. Insert a thin, nonconductive probe into the hole marked Default on the
back of the logic module and press the switch.
The terminal restarts in Maintenance mode with the display brightness set
to 100%. Refer to Ta b l e 67
for a description of maintenance operations.
TIP
All terminals require an attached USB keyboard to navigate in Maintenance
mode.
COMM
FAULT
DEFAULT
RESET
COMM
FAULT
DEFAULT
RESET
Initial Maintenance Window
default button pressed, please select maintenance options
Maintenance Menu -- ver 01.01
Special BOOT Action - None
Display resolution - AUTO
Continue booting with selected options
Continue with this system boot
This option will continue booting
with the options selected on the
left.
- IMPORTANT--------------------------
USB keyboard required!
Press the RESET switch to ignore
changes and continue system boot.
The version refers to
the boot loader.
TIP
Use the keys at the bottom of window to make selections.
