Chapter 3 Connect Power

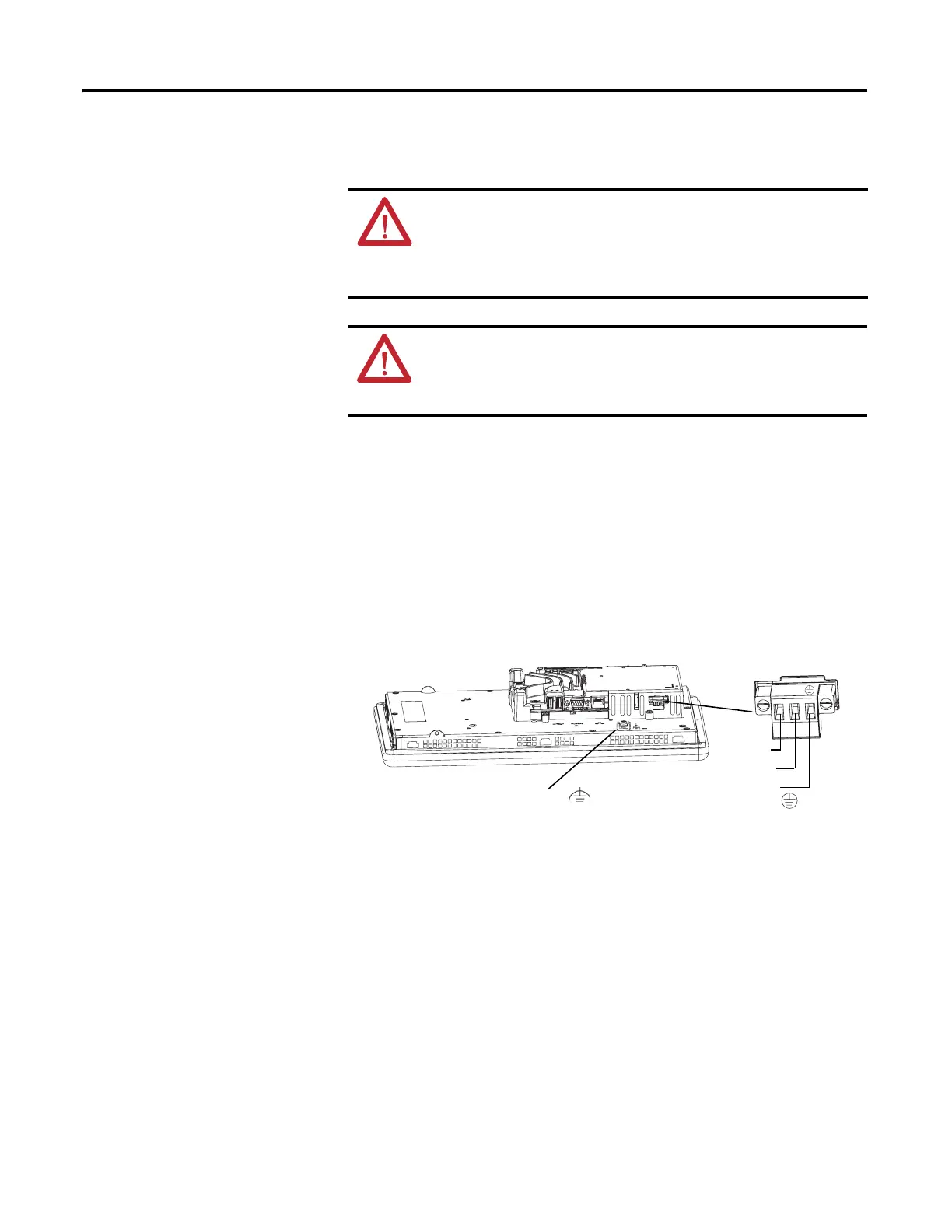

Connect AC Power
Follow these steps to connect the terminal to AC power.
1. Verify that the terminal is not connected to a power source.
2. Secure the AC power wires to the terminal block.
Follow the markings on the terminal block and terminal for proper
connections.
3. Secure the protective earth/ground wire to the marked position of the
power input terminal block.
4. Secure the functional earth/ground wire to the functional earth terminal
screw on the back of the display to ground bus.
5. Apply power to the terminal.
WARNING: Explosion Hazard
Do not disconnect equipment unless power has been switched off and
area is known to be nonhazardous.
Disconnect all power before installing or replacing components. Failure to
disconnect power may result in electrical shock or damage to the terminal.
ATTENTION: Improper wiring of the power terminals may result in
voltage at the communication connector shells.
Do not apply power to the terminal until all wiring connections have been
made. Failure to do so may result in electrical shock.
L1
L2/Neutral
Protective Earth
to Ground Bus
Functional Earth/Ground
L1 L2N
to Ground Bus
