Chapter 1 Overview
Display Modules
All 700 to 1500 display modules have TFT color, graphic displays with either
keypad, touch screen, or combination keypad/touch-screen input. Common
features and firmware provide for easy migration to a larger display:
• Eight-wire resistive touch screens are extremely accurate for operator
interfaces. When a point on the touch screen is pressed, the layers connect
and change the electrical current, which is then registered and processed.
• All keypad or combination keypad/touch-screen displays are similar except
for the number of functions keys.
To meet the requirements of specific environmental conditions, high-bright
displays, marine-certified displays, and conformal-coated displays are also
available. Plus, you can order field replaceable bezels.

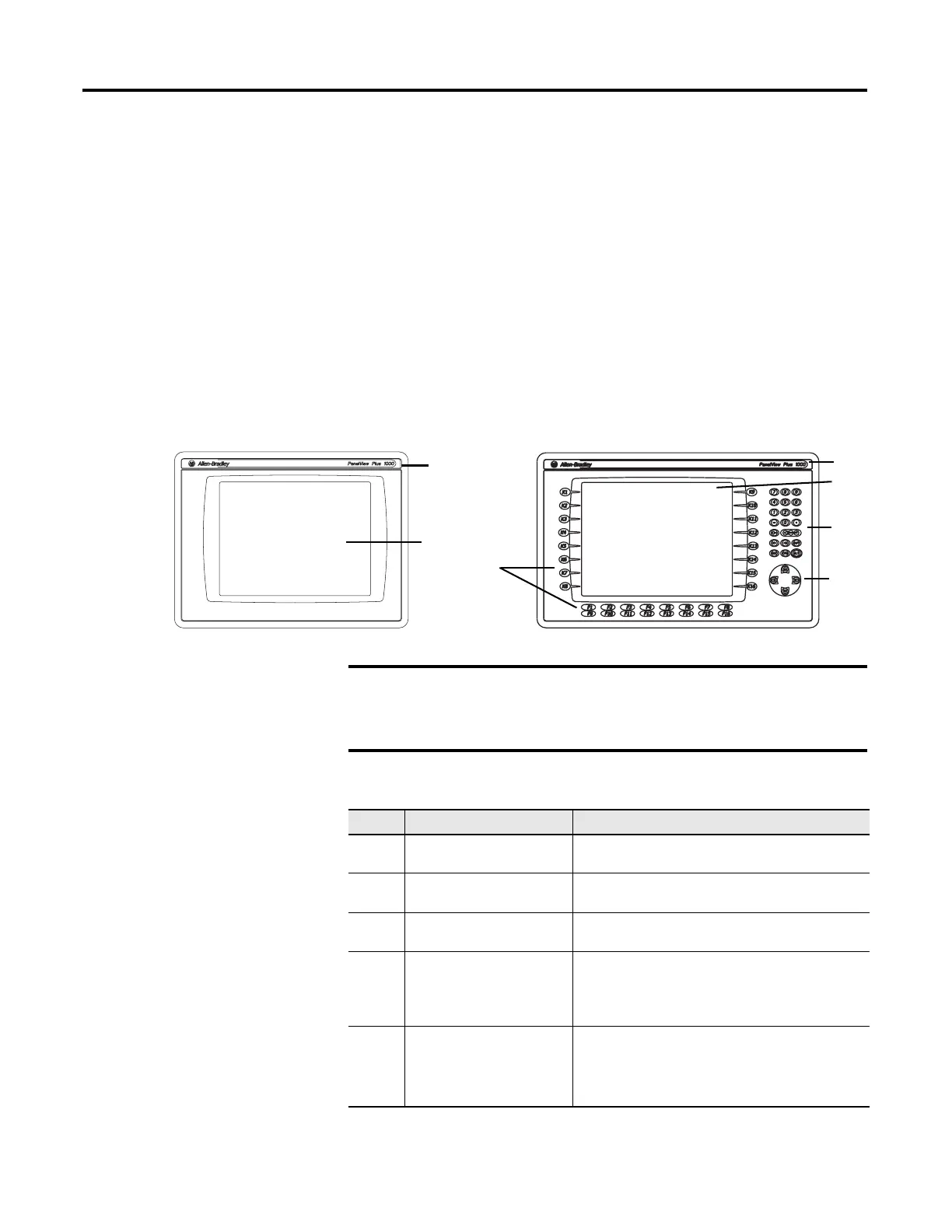

Figure 2 - Display Modules
5
4
3
1
2
1
2
IMPORTANT
The keypad is designed for finger or gloved finger operation. The touch
screen may be operated with a finger, gloved finger, or plastic stylus
device with a minimum tip radius of 1.3 mm (0.051 in.). Using any other
object or tool may damage the keypad or touch screen.
Table 5 - Display Features
Item Feature Description
1 Replaceable ID Label Allen-Bradley label that can be replaced with custom
label.
2 Display Analog resistive touch screen applies to touch-screen or
combination keypad/touch-screen terminals.
3 Numeric keypad 0…9, –, Backspace, Enter, Left and Right tab, Shift, Esc,
Ctrl, Alt keys.
4 Navigation keys Use the arrow keys to move the cursor in lists and select
objects.
Alt+arrow key activates home, end, page up, and page
down functions.
5 Function keys
700 F1 …F10, K1…K12
1000 F1 …F16, K1…K16
1250 F1 …F20, K1…K20
1500 F1 …F20, K1…K20
Keys that initiate functions on the terminal display.
Replaceable legends are available to customize the
function key labels.
