Rockwell Automation Publication 2711P-UM006A-EN-P - November 2010 131
Terminal Connections Chapter 7
ControlNet Module Connectors

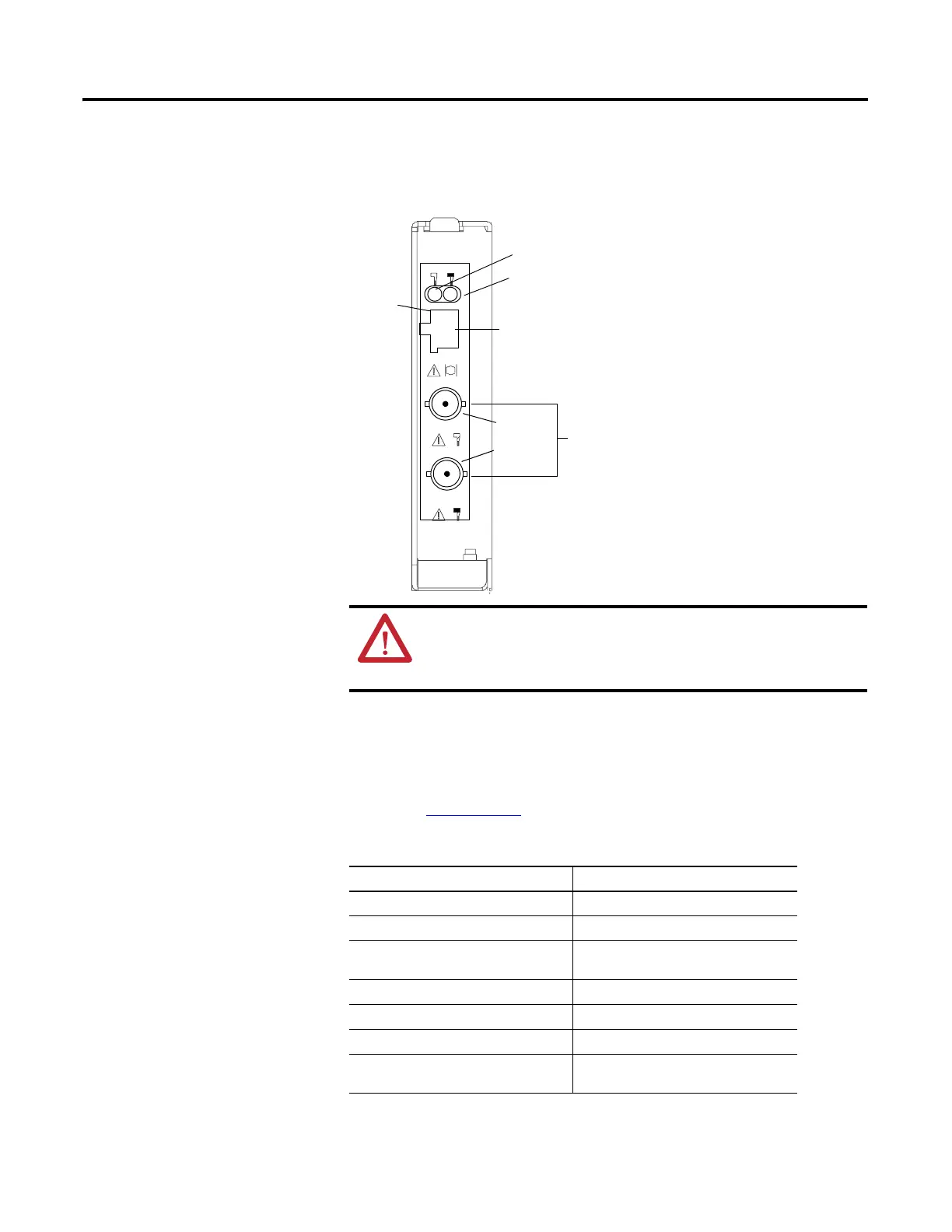

Figure 20 - Cat. No. 2711P-RN15S or 2711P-RN15SK Communication Module
NAP and Redundant Cables
Refer to the ControlNet Coax Media Planning and Installation Guide,
publication CNET-IN002
, for descriptions of ControlNet components.
.
ATTENTION: Do not connect more than one ControlNet network
to the communication module. If you attempt to connect a second
network to the module, your communication system will operate
erratically.
Table 59 - ControlNet NAP and Redundant Cables
Item Cat. No.
RG-6 quad-shield 1786-RG6
Coax repeater 1786-RPT, 1786-RPTD
Coax taps 1786-TPR, 1786-TPS, 1786-TPYR,
1786-TPYS
Network access cable 1786-CP
Coax tool kit 1786-CTK
Segment terminators 1786-XT
BNC connectors 1786-BNC, 1786-BNCJ, 1786-BNCP,
1786-BNCJ1
Pin NAP Signal
1 Signal Common
2 No Connection
3 TX_H
4 TX_L
5 RX_L
6RX_H
7 No Connection
8 Signal Common
Shell Earth/Ground
Status Indicator B
Allen Bradley
ControlNet
A
B
Channel A
Channel B
Pin 1
Redundant BNC
Cable Connectors
Status Indicator A
Network Access Port (NAP)
RJ-45 connector for temporarily
connecting programming terminals
to devices on a ControlNet network
