Allen-Bradley PanelView Plus 6 1250 User Manual

Rockwell Automation Publication 2711P-UM006A-EN-P - November 2010 29
Install Terminal Chapter 2
Product Dimensions
The table provides product dimensions for the terminals. The 1000 keypad and
keypad/touch terminals are shown for illustrative purposes. All other terminal
sizes look similar.

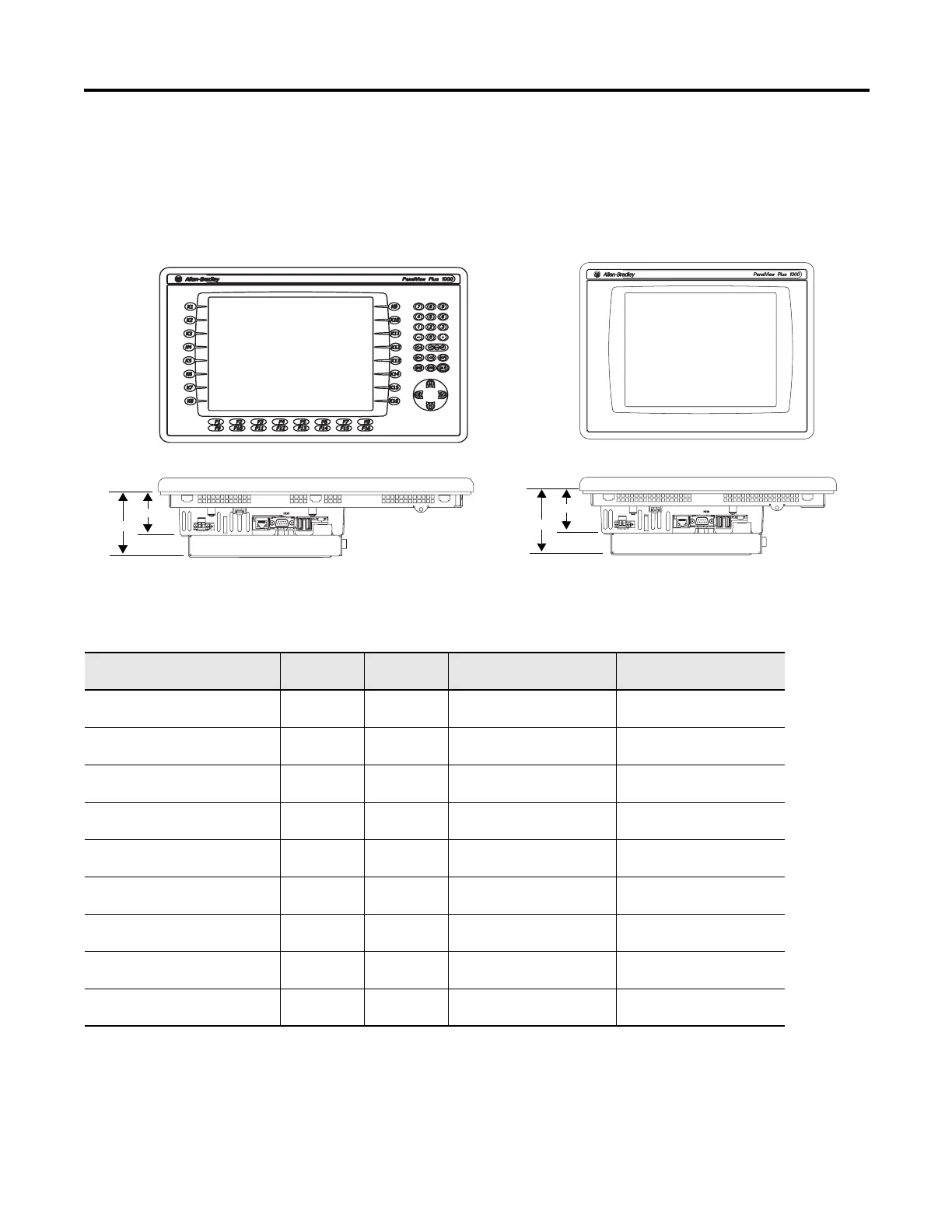

Figure 4 - PanelView Plus 6 Terminal Dimensions - Model 1000
b
a
b
a
Table 24 - PanelView Plus 6 Terminal Dimensions
Terminal Model Width Height
Depth a
Display to Logic Module
Depth b
Display to Comm Module
700 Keypad or Keypad/Touch
290 mm
11.40 in.
193 mm
7.58 in.
55 mm
2.18 in.
83 mm
3.27 in.
700 Touch
246 mm
9.68 in.
179 mm
7.04 in.
55 mm
2.18 in.
83 mm
3.27 in.
1000 Keypad or Keypad/Touch
399 mm
15.72 in.
248 mm
9.77 in.
55 mm
2.18 in.
83 mm
3.27 in.
1000 Touch
329 mm
12.97 in.
248 mm
9.77 in.
55 mm
2.18 in.
83 mm
3.27 in.
1250 Keypad or Keypad/Touch
416 mm
16.36 in.
282 mm
11.12 in.
55 mm
2.18 in.
83 mm
3.27 in.
1250 Touch
363 mm
14.30 in.
282 mm
11.12 in.
55 mm
2.18 in.
83 mm
3.27 in.
1250 High-bright Touch
363 mm
14.30 in.
282 mm
11.12 in.
74 mm
2.9 in.
101 mm
3.99 in.
1500 Keypad or Keypad/Touch
469 mm
18.46 in.
330 mm
12.97 in.
65 mm
2.55 in.
93 mm
3.65 in.
1500 Touch 416 mm
16.37 in.
330 mm
12.97 in.
65 mm
2.55 in.
93 mm
3.65 in.
