MP-20x Telephone Adapter
10. WAN Settings
2.
Click the link
New Connection
; the 'Connection Wi
zard' screen opens.

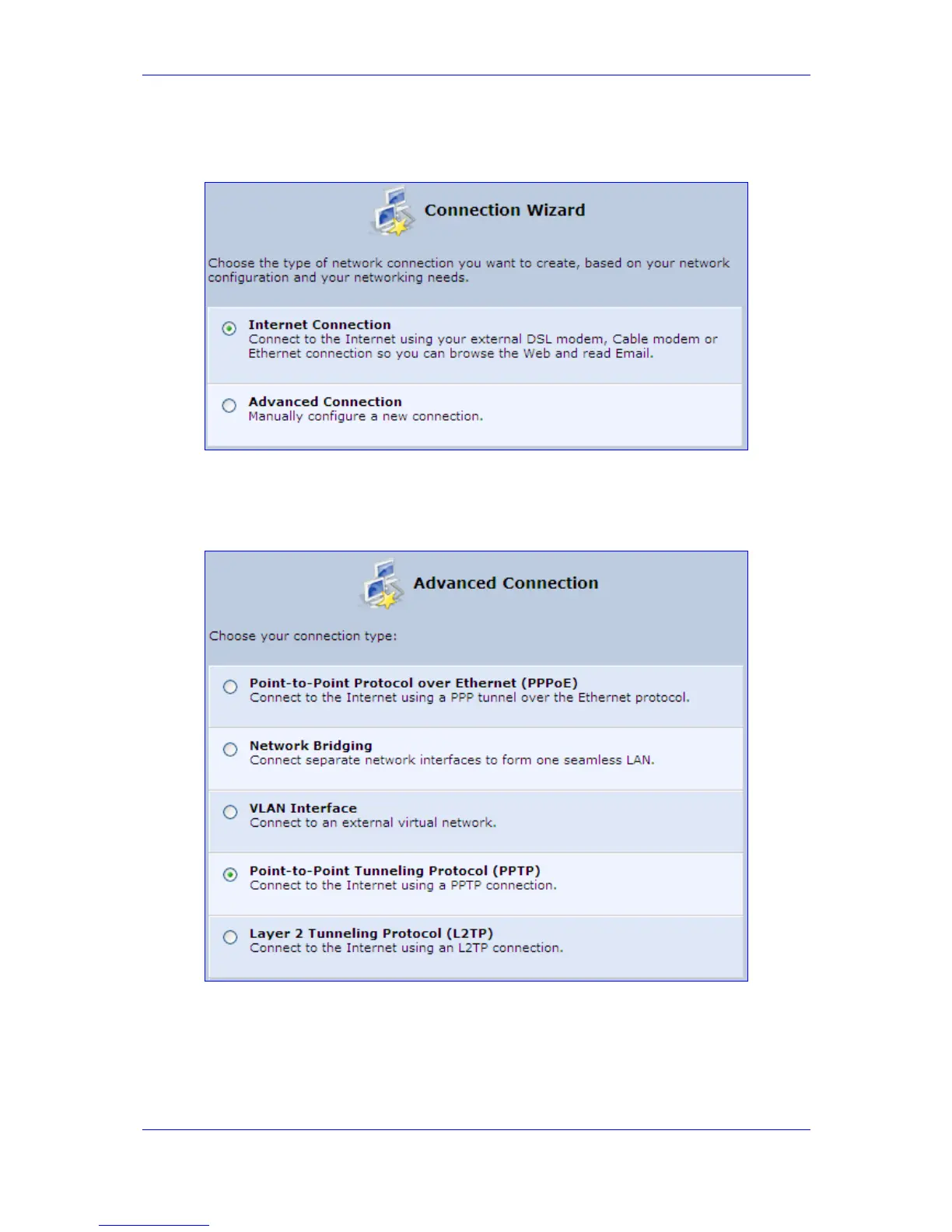

Figure
10-9: Connection Wizard Screen
3.
Select the ‘Advanced Connection' optio
n, and then click
Next
; t
he screen 'Internet
Connection' opens.
Figure
10-10: Advanced Connection
114
116
