MP-20x Telephone Adapter
146
Document #: LTRT-50609
User's
Manual

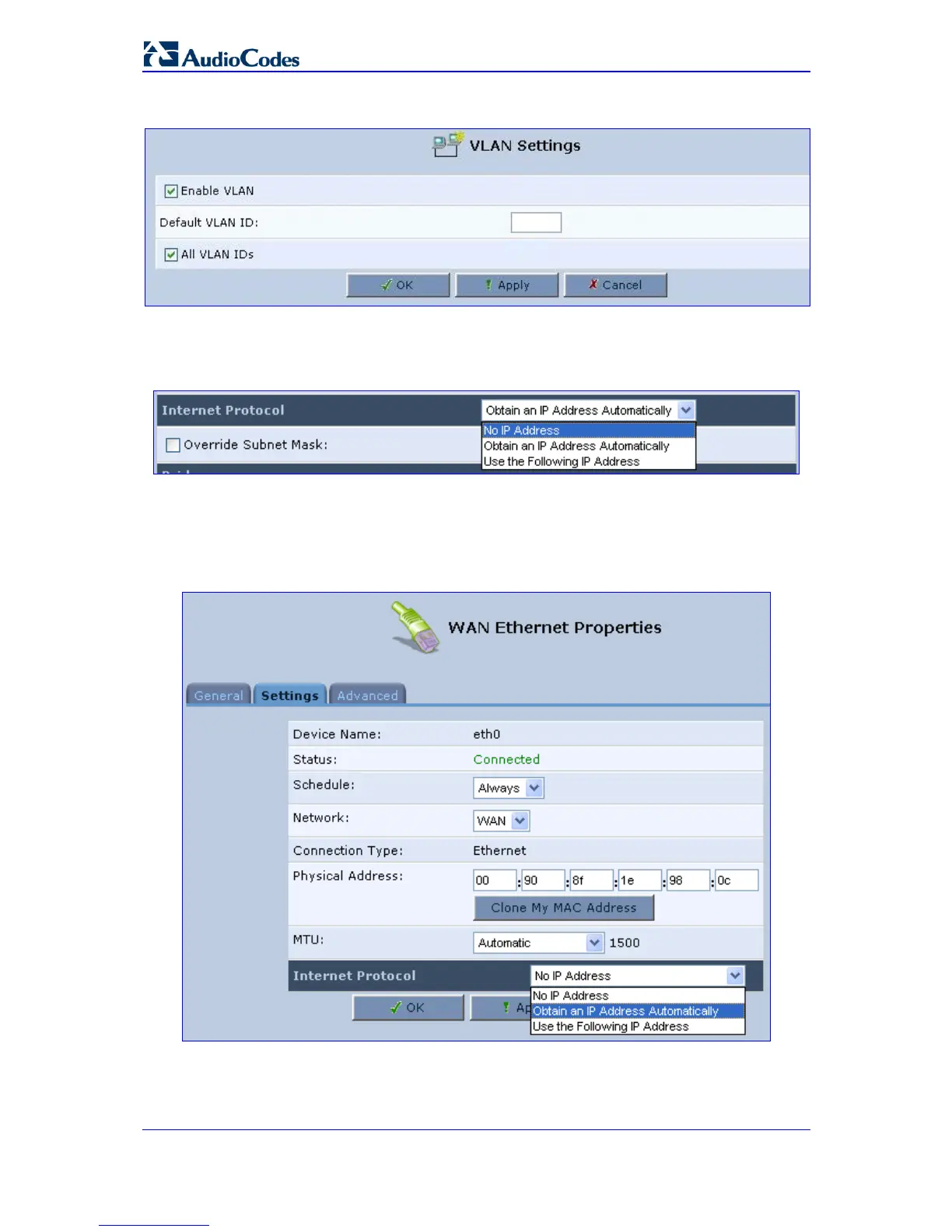

Figure
11-38: VLAN Settings
7.
Set the bridge to use 'No IP Address'. C
lick Apply and OK and then click OK again.
Figure
11-39: No IP Address
8.
For WAN Ethernet 2
(VLAN ID 200), configur
e this interface to Obtain IP Address
Automatically. Optionally, you can choose o
ption 'Use the Following IP Address' for a
static IP address.
Figure
11-40: Configuring WAN Ethernet
9.
Set your PC to use DHCP address.
145
147
