MP-20x Telephone Adapter
8. Quality of
Service (QoS)
8
Quality of Service (QoS)
8.1
QoS Wizard
¾
To use the QoS Wizard:
1.
From the sidebar menu, click the
QoS
menu link; the
QoS Wizard
tab's screen
appears by default.

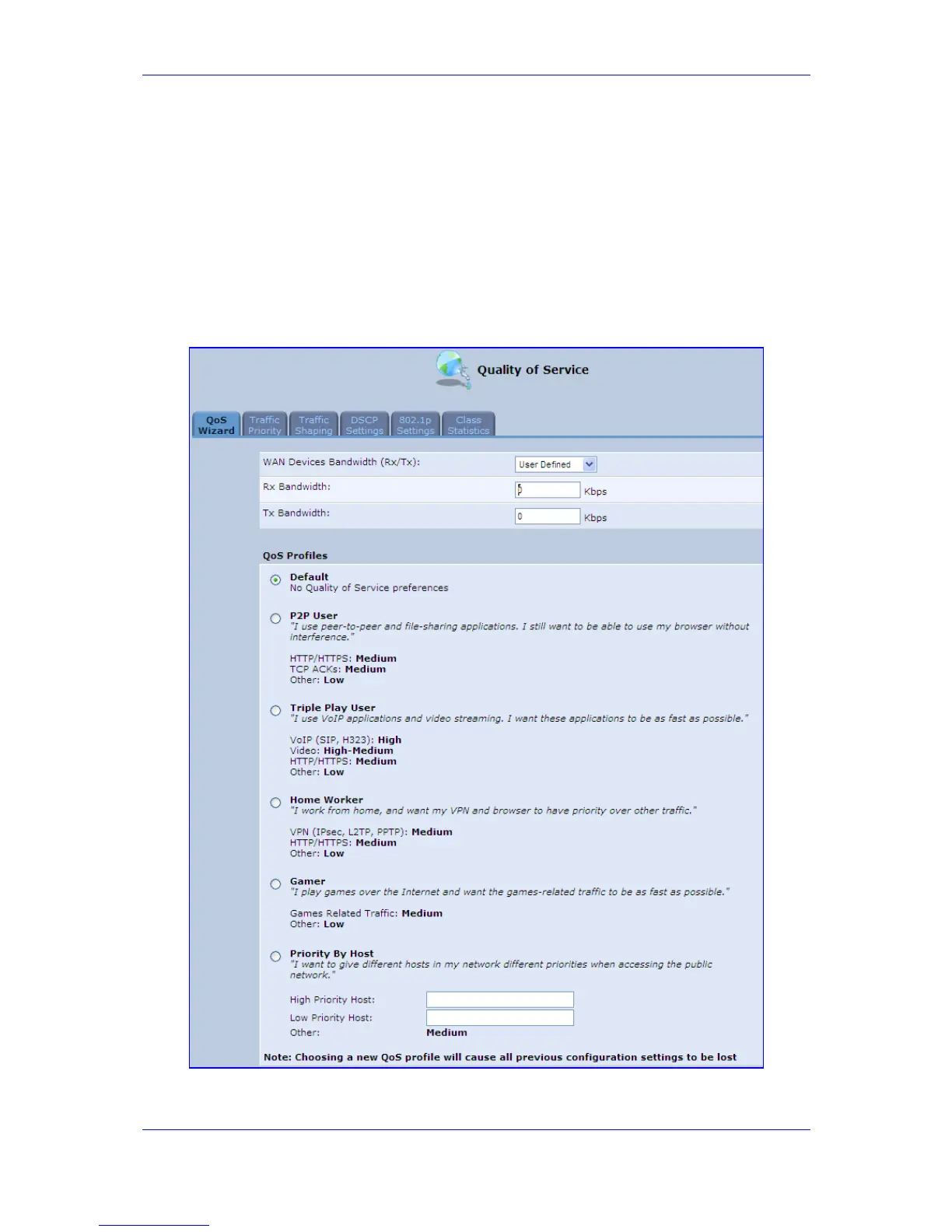

Figure
8-1: QoS
Wizard Tab Screen
