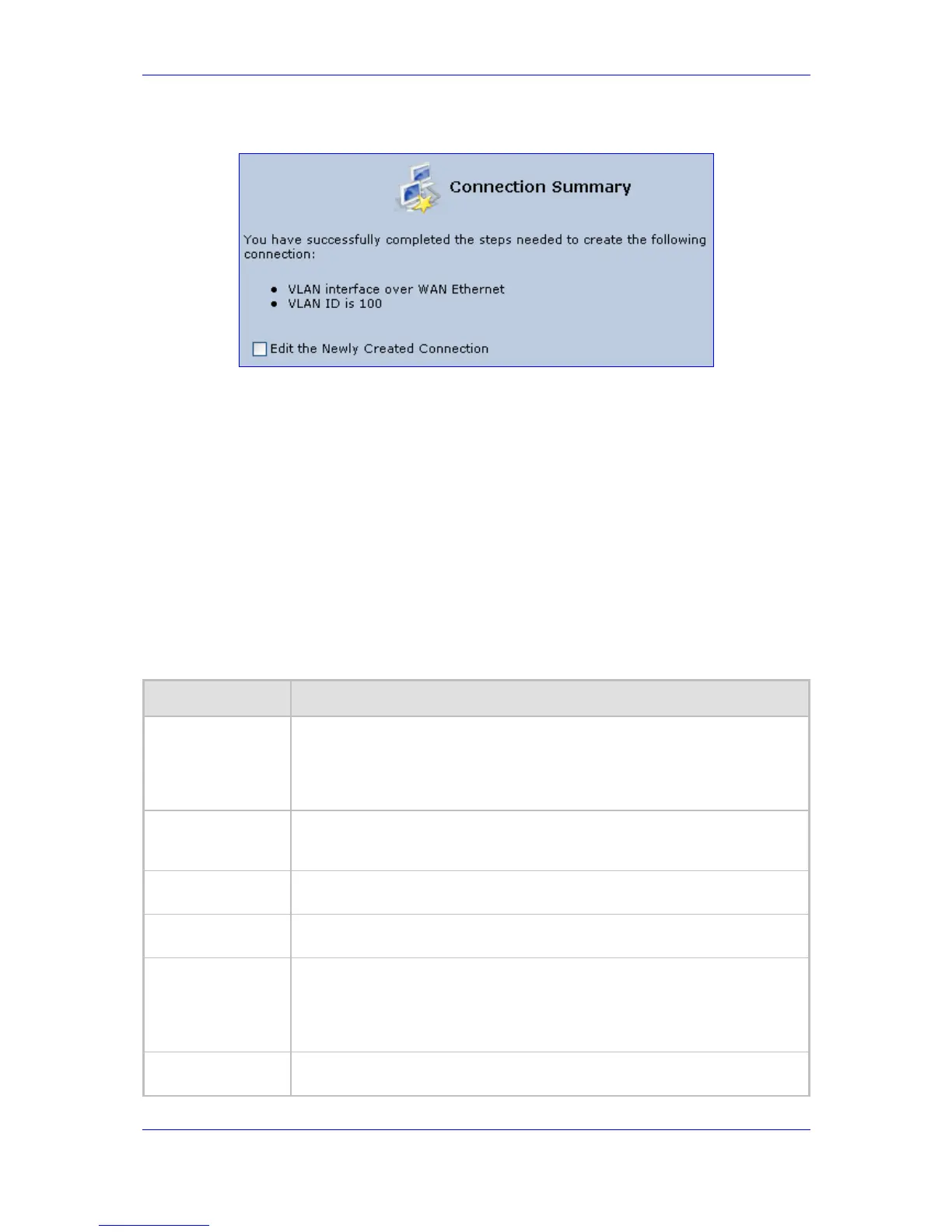

Figure 11-4: Connection Summary
6. Check the 'Edit the Newly Created Connection' check box to be routed to the new
connection's configuration screen after clicking Finish.
7. Click Finish to save the settings; the new VLAN interface is added to the network
connections list; it’s configurable like any other connection.
11.1.2 Settings Tab
The Settings tab of the 'VLAN Properties' displays general communication parameters. It’s
recommended to leave the values in this screen at their defaults unless you’re familiar with
the networking concepts they represent. Since your Telephone Adapter is configured to
operate with the default values, no parameter modification is necessary. You can configure
the following general connection settings:
Table 11-1: VLAN Interface - General Communication Parameters
Parameter Description
Schedule
By default, the connection is always active. However, you can configure
scheduler rules in order to define time segments during which the connection
may be active. Once a scheduler rule(s) is defined (via Advanced>Scheduler
Rules), this field changes to a drop-down list, allowing you to choose between
the available rules. To configure scheduler rules, refer to Section 10.11.
Network
Select whether the parameters you are configuring relate to a WAN, LAN or
DMZ connection, by selecting the connection type from the drop-down list. For
detailed information, refer to Section 4.2.
Physical Address
The physical address of the network card used for your network. Some cards
allow you to change this address.
Clone MAC
llows you to copy the current MAC address of your PC to the MAC address of
this device.
MTU
MTU is the Maximum Transmission Unit. It specifies the largest packet size
permitted for Internet transmission. In the default setting, Automatic, the
Telephone Adapter selects the best MTU for your Internet connection. In case
you change to manual, you can enter the largest packet size, you should leave
this value in the 1200 to 1500 range.
Underlying
Connection
The Ethernet device that the connection is implemented over.
